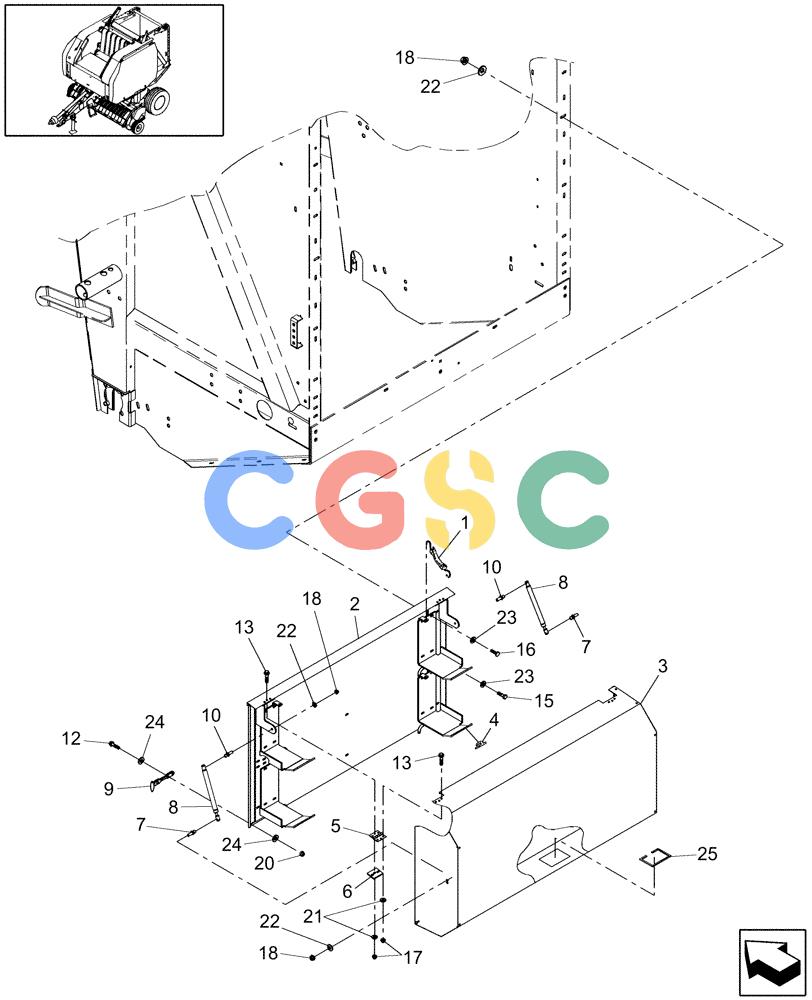

| 1. |
87020998
|
[4] |
STRAP
|
PA
|
| 2. |
86626686
|
[1] |
SUPPORT
|
PA
|
| 3. |
86836779
|
[1] |
DOOR ASSY.
|
NH
|
| 4. |
216328
|
[2] |
BUMPER
|
NH
Rubber
|
| 5. |
86529373
|
[2] |
HINGE
|
NH
Plated
|
| 6. |
86641304
|
[2] |
PLATE
|
NH
|
| 7. |
86634307
|
[2] |
STUD
|
NH
Short, Ball End Superseded by part number: 87603835
|
| 8. |
86639602
|
[2] |
GAS STRUT
|
NH
Gas
|
| 9. |
86000448
|
[2] |
LATCH
|
NH
Rubber
|
| 10. |
86628347
|
[2] |
STUD,M8 x 36.5mm OAL, 10mm OD Ball
|
NH
Long
|
| 12. |
844-6020
|
[4] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 13. |
844-6025
|
[12] |
BOLT,Hvy Hex, M6 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804257
|
| 15. |
844-8030
|
[2] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87779272, 9804260
|
| 16. |
844-8040
|
[4] |
BOLT,Hvy Hex, M8 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 86511842
|
| 17. |
825-2406
|
[12] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 18. |
825-2408
|
[10] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 20. |
832-46406
|
[4] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 21. |
322357
|
[12] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 22. |
322358
|
[10] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 23. |
86625263
|
[4] |
WASHER,9mm ID x 20mm OD x 1.6mm Thk
|
ZED
|
| 24. |
86588450
|
[8] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 25. |
NH291525
|
[1] |
EDGE
|
NH
Superseded by part number: 86516805
|
