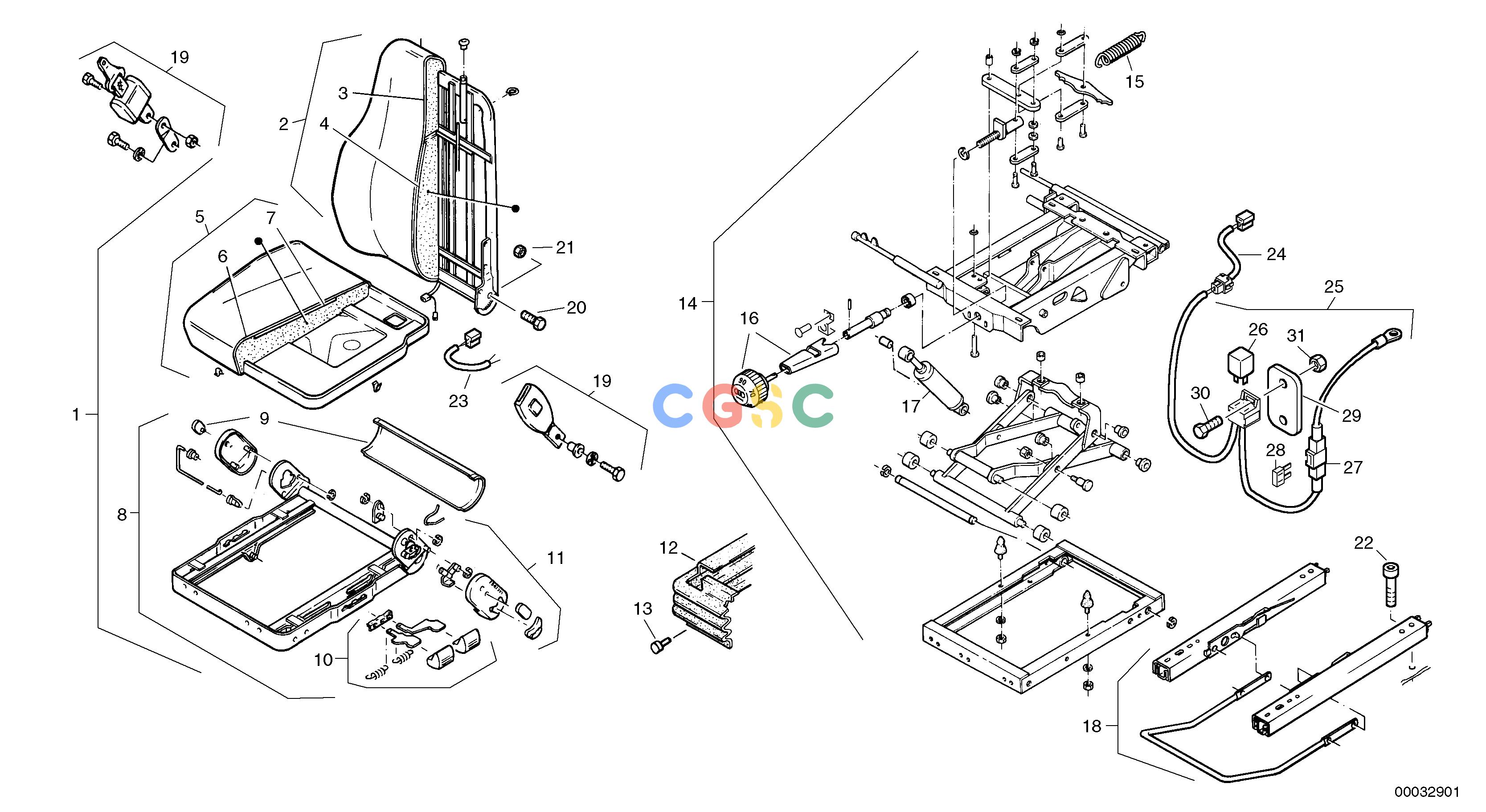

沃尔沃零件查询L32 Driver's seat, to be heatedTYPE 184 SER NO - 22001840001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
ZM2814282
|
[1] |
Driver seat
|
|
10. |
ZM2906581
|
[1] |
Lever Kit
|
|
11. |
ZM2906582
|
[1] |
Mounting Kit
|
|
12. |
ZM2901446
|
[1] |
Bellows
|
|
13. |
VOE1699294
|
[1] |
Attachment kit
|
|
14. |
ZM2906584
|
[1] |
Seat spring suspension
|
|
15. |
VOE6213261
|
[2] |
Spring
|
|
16. |
ZM2906585
|
[1] |
Adj Device
|
|
17. |
VOE11706086
|
[1] |
Shock absorber
|
|
18. |
VOE11706087
|
[1] |
Handle
|
|
19. |
ZM2907574
|
[1] |
Seat Belt
|
|
2. |
ZM2907575
|
[1] |
Back part, cpl.
|
|
20. |
ZM7095370
|
[1] |
Screw
|
M8x16
|
21. |
ZM7098010
|
[1] |
Nut
|
M8
|
22. |
VOE11305407
|
[4] |
Allen Hd Screw
|
M8x20
|
23. |
ZM2814283
|
[1] |
Electric wire
|
-1840155
|
24. |
ZM2816156
|
[1] |
Electric cable
|
1840156-
|
25. |
VOE11309338
|
[1] |
Electric cable
|
1840156-
|
26. |
ZM2801274
|
[1] |
Relay
|
1840156-
|
27. |
ZM4373348
|
[1] |
Fuse holder
|
1840156-
|
28. |
VOE980555
|
[1] |
Fuse
|
C7,5, 1840156-
|
29. |
ZM2801724
|
[1] |
Cover plate
|
1840156-
|
3. |
ZM2906577
|
[1] |
Seat Cover
|
|
30. |
ZM7094807
|
[1] |
Screw
|
M5x12, 1840156-
|
31. |
VOE955780
|
[1] |
Hexagon nut
|
M5, 1840156-
|
4. |
ZM2907576
|
[1] |
Heating element
|
|
5. |
ZM2907602
|
[1] |
Seat part, cpl.
|
|
6. |
VOE11706081
|
[1] |
Upholstery
|
|
7. |
ZM2907577
|
[1] |
Heater
|
|
8. |
ZM2907569
|
[1] |
Seat Frame Work
|
|
9. |
ZM2906580
|
[1] |
Cap
|
|
