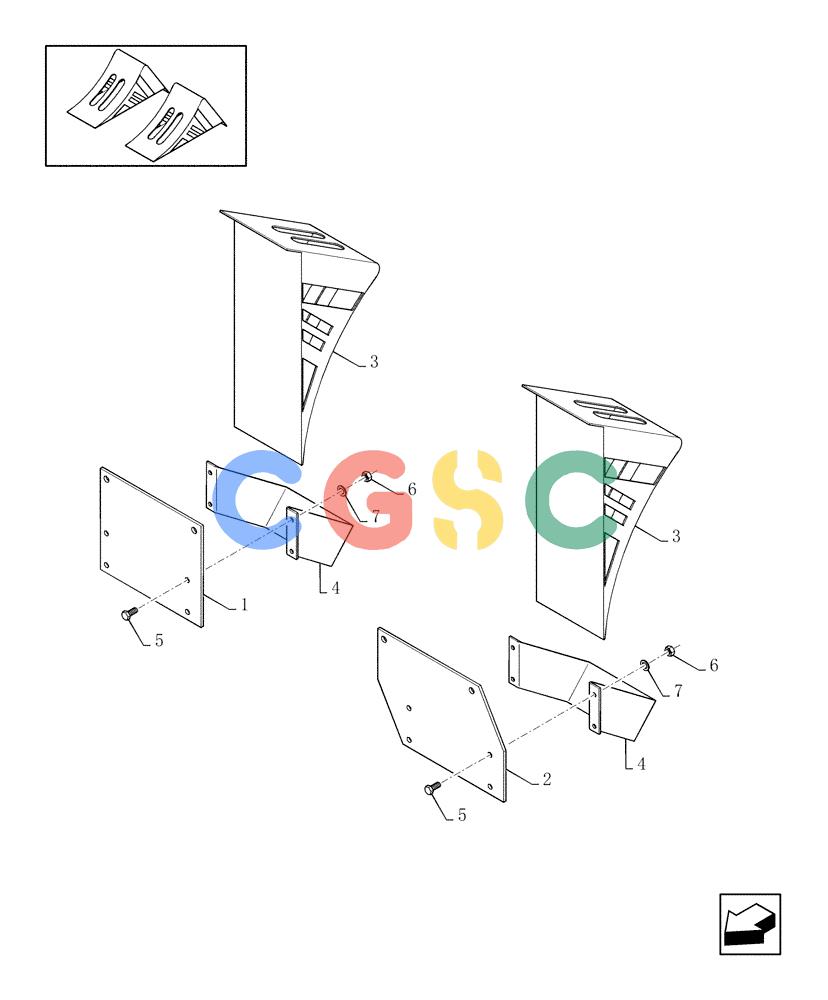

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (11.02[01]) - WHEEL CHOCKS Case Agriculture
广数供应链运营团队, 18 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84821203
|
[1] |
PLATE
|
PLO
RH
|
| 2. |
84821205
|
[1] |
PLATE
|
PLO
LH
|
| 3. |
84025662
|
[2] |
WHEEL CHOCK
|
BRE
|
| 4. |
84025663
|
[2] |
SUPPORT
|
BRE
|
| 5. |
120103
|
[8] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 6. |
9706690
|
[8] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 7. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
