纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-03D) - BLADE, DOZER - HS - BD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

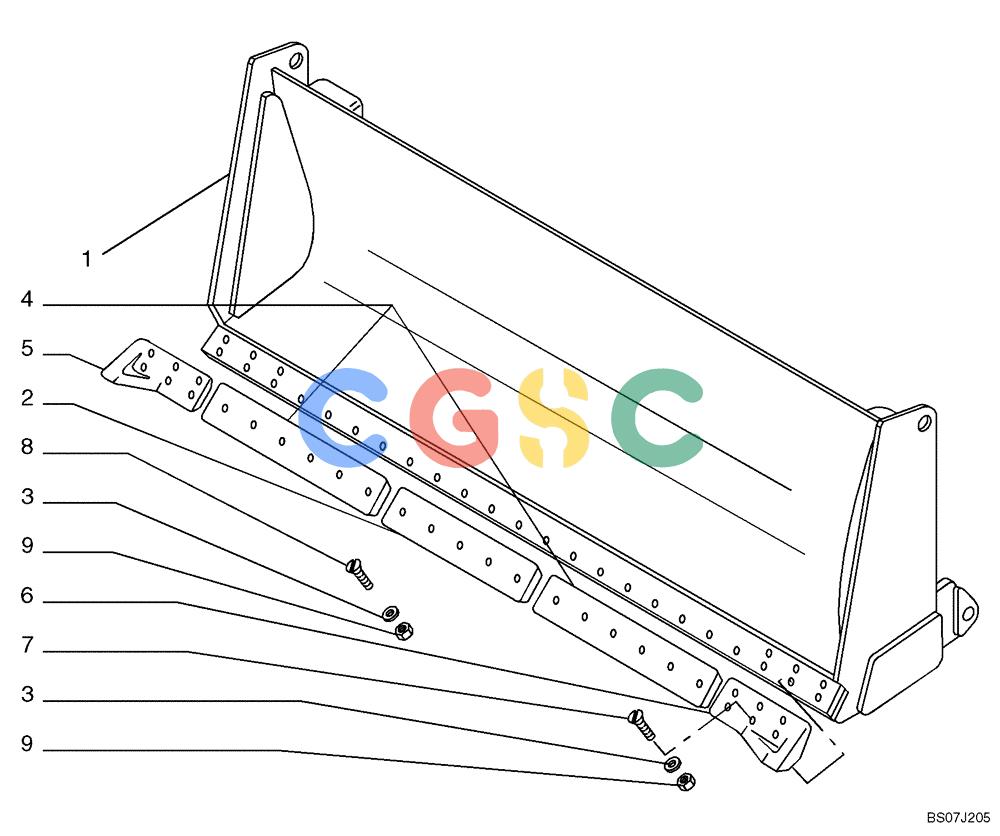

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 76089467 | [1] | DOZER BLADE | LECASSY, Straight Moldboard, Bulldozer Model Only, Incl. Refs. 1 - 9 Superseded by part number: 76069846 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONSTRAIGHT MOLDBOARD |
| 2. | 76089497 | [1] | CUTTING EDGE | LECCenter Superseded by part number: 76005429 |
| 3. | 14497131 | [27] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 4. | 76090503 | [2] | CUTTING EDGE | LEC Superseded by part number: 76066186 |
| 5. | 76089498 | [1] | CUTTING EDGE | LECRH Superseded by part number: 76015476 |
| 6. | 76089499 | [1] | CUTTING EDGE | LECLH Superseded by part number: 76015477 |
| 7. | 8282270 | [12] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 8. | 8273211 | [15] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LEC |
| 9. | 86015195 | [27] | NUT,M20 x 1.5, Cl 10 | RAC |
![]()
