纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-03C) - BLADE, DOZER - EDGES, CUTTING - LGP (SERIAL NO. NBDC15003 AND EARLIER) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

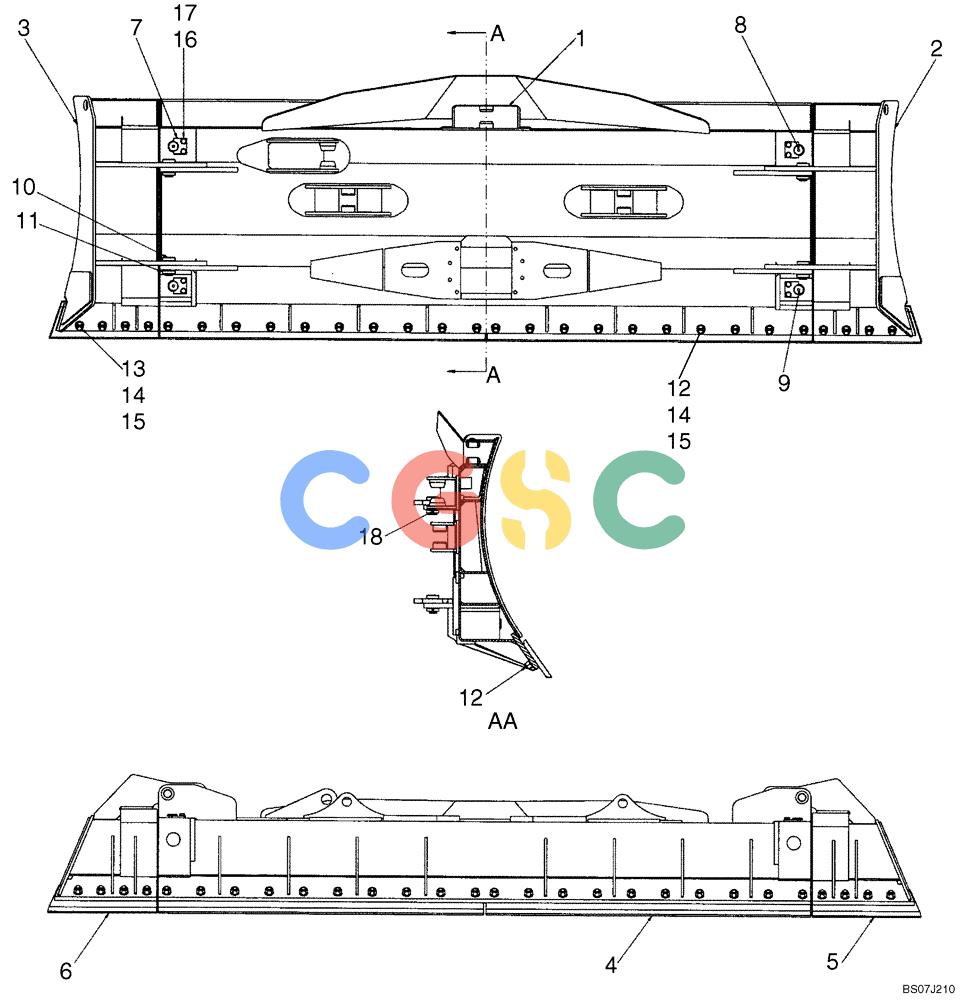

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 76093770 | [1] | DOZER BLADE | LEC3900 mm (153 - 35/64 in) Blade; LGP Models Only; Incl. Refs. 1 - 18, Serial Range: -NBDC15003 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONMOLDBOARD, LGP Folded |
| 2. | 87679624 | [1] | BLADE, RH | |
| 3. | 87692479 | [1] | BLADE, LH | |
| 4. | 76089466 | [2] | CUTTING EDGE | LECBottom Center Superseded by part number: 76072357 |
| 5. | 76089465 | [1] | CUTTING EDGE | LECBottom RH Superseded by part number: 76071103 |
| 6. | 76089464 | [1] | CUTTING EDGE | LECBottom LH Superseded by part number: 76071104 |
| 7. | 76033228 | [4] | COVER PLATE | LEC |
| 8. | 76079150 | [2] | PIN | LEC |
| 9. | 76073124 | [2] | PIN | LEC |
| 10. | 76079151 | [4] | PIN | LEC |
| 11. | 76073125 | [4] | THRUST WASHER | LEC |
| 12. | 8273211 | [20] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LECM20 x 1.5 x 48 |
| 13. | 8282270 | [8] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LECM20 x 1.5 x 53 |
| 14. | 86511327 | [28] | WASHER,21mm ID x 37mm OD x 3mm Thk | NH |
| 15. | 86015195 | [28] | NUT,M20 x 1.5, Cl 10 | RAC |
| 16. | 140018 | [8] | WASHER,13.5mm ID x 24mm OD x 2.5mm Thk | NH Superseded by part number: 87364 |
| 17. | 398792 | [8] | SCREW,Hex, M12 x 25mm, Cl 10.9 | WIN |
| 18. | 14604770 | [4] | PIN,6mm OD x 55mm L, Slotted | MKT |
![]()
