纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-03B) - BLADE, DOZER - EDGES, CUTTING - LGP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

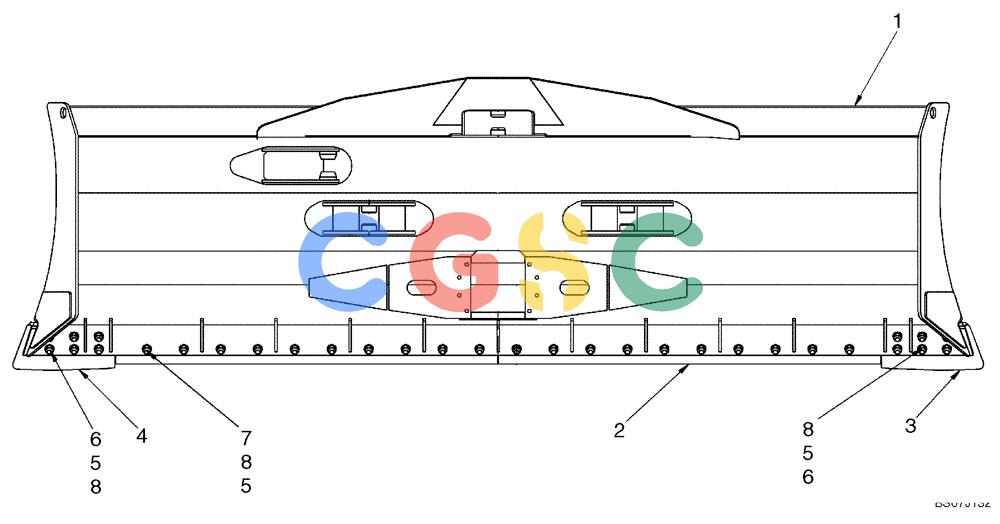

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 84202263 | [1] | DOZER BLADE | BURBLADE, 4000 mm (157 - 1/2 in) Blade; LGP Models Only; Incl. Refs. 1 - 8 |
| . . | 47591881 | [1] | DOZER BLADE | BURWith Welded Blade Support on Figure 09-01 Ref 7 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONMOLDBOARD, LGP |
| 2. | 76089456 | [2] | EDGE, CUTTING, Center | |
| 3. | 76089458 | [1] | CUTTING EDGE | LECRH Superseded by part number: 79104464 |
| 4. | 76089460 | [1] | CUTTING EDGE | LECLH Superseded by part number: 8294274 |
| 5. | 14497131 | [32] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 6. | 8282270 | [12] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LECM20 x 1.5 x 53 |
| 7. | 8273211 | [20] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LECM20 x 1.5 x 48 |
| 8. | 86015195 | [32] | NUT,M20 x 1.5, Cl 10 | RAC |
![]()
