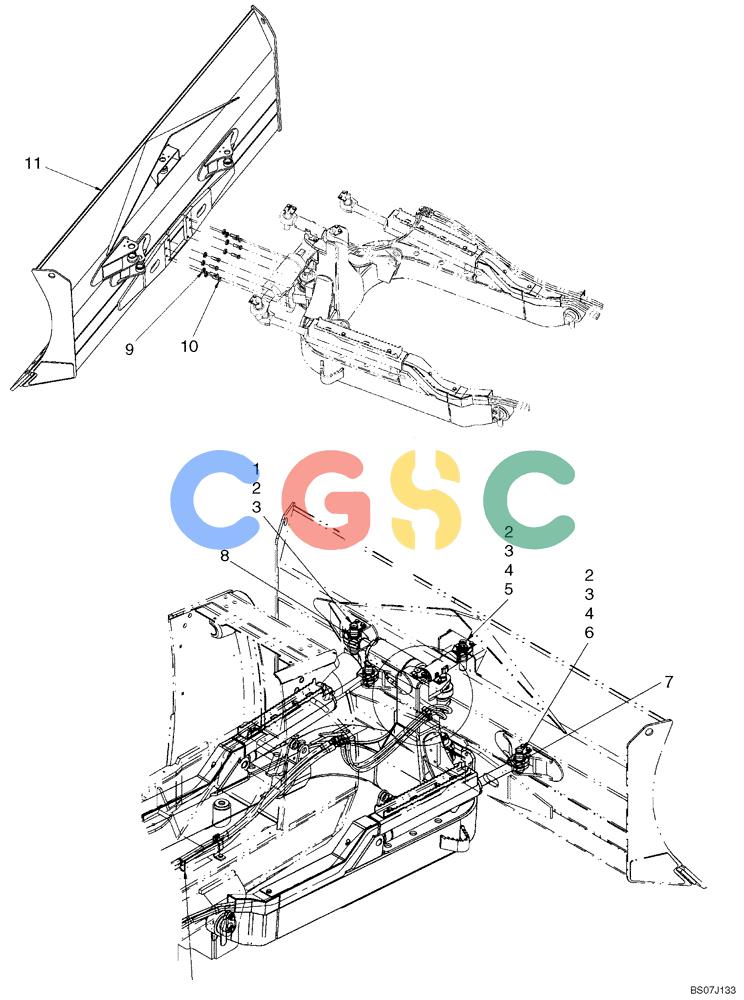

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-02) - DOZER BLADE - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84204211 | [1] | PIN,44.8mm OD x 186mm L | BURTilt Cylinder |
| 2. | 76033228 | [4] | COVER PLATE | LEC |
| 3. | 895-11012 | [8] | WASHER,13.5mm ID x 24mm OD x 2.5mm Thk | CAS |
| 4. | 627-12025 | [8] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 398792 |
| 5. | 84204212 | [1] | PIN | BURStrut Superseded by part number: 84306890 |
| 6. | 84204209 | [2] | PIN,39.8mm OD x 148mm L | BURAngle Cylinder |
| 7. | 76041091 | [1] | SHIM | LEC |
| 8. | 76041090 | [1] | SHIM | LEC |
| 9. | 79005240 | [8] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 10. | 627-16045 | [8] | BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd | CASUse Loctite 242/243 Superseded by part number: 86508624 |
| 11. | 76093768 | [1] | DOZER BLADE | LECLT, If Used; See Figure 09-03 |
| 11. | 87674642 | [1] | DOZER BLADE | BURBLADE, XLT, If Used; See Figure 09-03A Superseded by part number: 84202260 |
| 11. | 87674647 | [1] | DOZER BLADE | BURBLADE, LGP, If Used; See Figure 09-03B |
| 11. | 76093770 | [1] | DOZER BLADE | LECLGP, Folded Blade, If Used; See Figure 09-03C |
![]()
