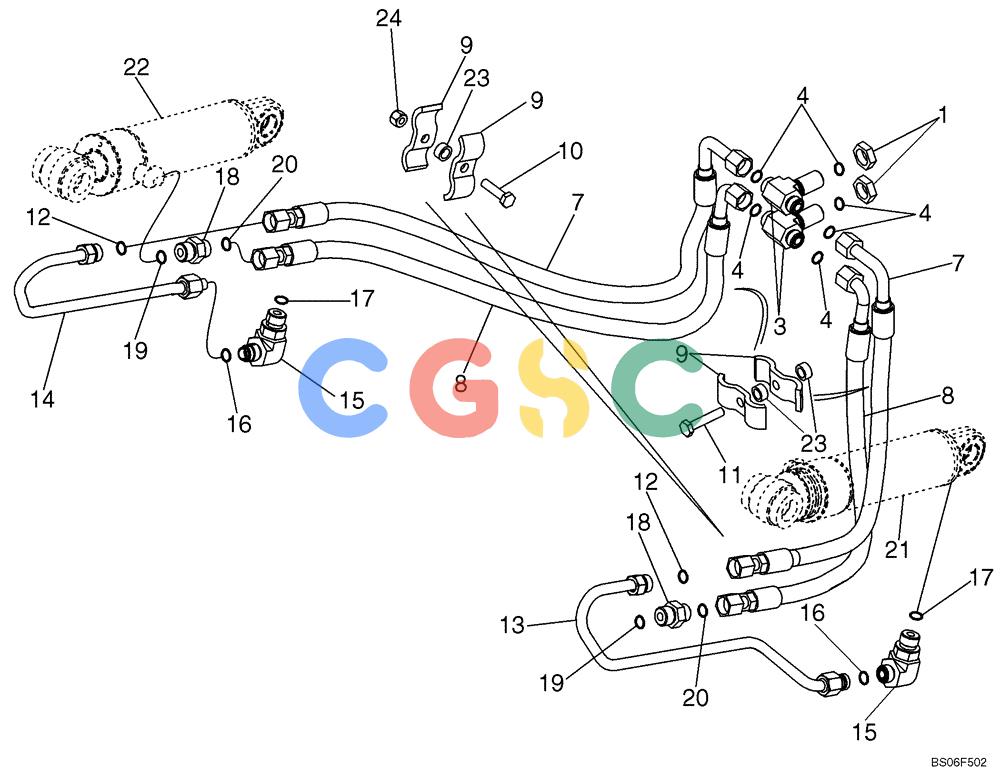

| 1. | 201-903 | [2] | TUBE NUT,Blkhd, 13/16"-16 | CAS |
| 3. | 201-452 | [2] | TEE,13/16"-16, Blkhd Br | BRRIncl. Ref 4 Superseded by part number: 86639082 |
| 4. | 238-6014 | [6] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9992298 |
| 7. | 87405656 | [2] | HOSE ASSY. | BUR794 mm long; Upper; To Closed End Of Cylinder |
| 8. | 87408851 | [2] | HOSE ASSY. | BUR775 mm lg; Lower; To Rod End Of Cylinder |
| 9. | 434130A1 | [8] | HOSE CLAMP | BUR |
| 10. | 614-10040 | [2] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120112 |
| 11. | 43249 | [2] | BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9 | NH |
| 13. | 87352784 | [1] | TUBE,12.70 mm OD | BURRight-Hand Cylinder Tube |
| 14. | 87352785 | [1] | TUBE,12.70 mm OD | BURLeft-Hand Cylinder Tube |
| 15. | 201-326 | [2] | ELBOW,90º, 13/16"-16 x 7/8"-14, Adj, ORFS | CASIncl., 16, 17 Superseded by part number: 85802961 |
| 17. | 237-6010 | [2] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186125, 167269 |
| 18. | 201-112 | [2] | HYD CONNECTOR,13/16"-16 ORFS x 7/8"-14 ORB | CASIncludes Ref 19, 20 Superseded by part number: 73338799 |
| 19. | 237-6014 | [2] | O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro | CASBoss End Superseded by part number: 70921886 |
| 21. | 87651091 | [1] | CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke | BURCYLINDER ASSY, RIPPER; Right-Hand; Ripper; See Figure 08-25 |
| 21. | 87651091R | [1] | REMAN-HYD CYLINDER | BURD150B TIER 3 (HYDRO) (10/07) |
| 21. | 87651091C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 22. | 87651121 | [1] | CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke | BURCYLINDER ASSY. RIPPER; Left-Hand; Ripper; See Figure 08-25 |
| 22. | 87651121R | [1] | REMAN-HYD CYLINDER | BURD150B TIER 3 (HYDRO) (10/07-) |
| 22. | 87651121C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 23. | 87311572 | [6] | SPACER,12.7mm x 19mm x 9mm | BUR |
| 24. | 832-10410 | [2] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
