纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (04-11) - RIPPER CONTROL, ELECTRIC New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

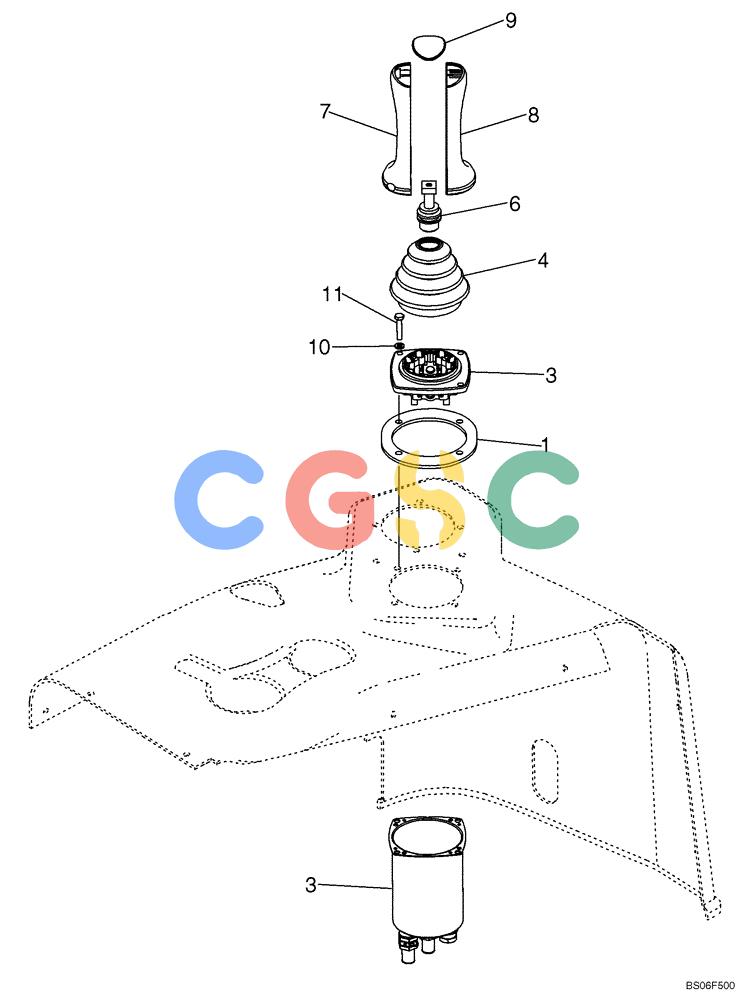

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87386605 | [1] | RETAINING PLATE | BURUpper Adapter Plate, Mounts on Top of Right Hand Console |
| . . | 84167852 | [1] | MANIPULATOR | BURRipper Control Assembly; Mounts Next to Blade Control in Right Hand Console; Incl. Ref 3 - 9 |
| 3. | 84167853 | [1] | JOYSTICK CONTROL KIT | BURRipper Control Base |
| 4. | 87386593 | [1] | BOOT | BURBoot |
| . . | 87386592 | [1] | HANDLE GRIP | BURGrip Assembly; Incl. Ref 6 - 9 |
| 6. | 87433762 | [1] | ADAPTER | BURAdapter |
| 7. | 87428164 | [1] | HANDLE GRIP | BURLeft Hand Superseded by part number: 87308838 |
| 8. | 87428165 | [1] | HANDLE GRIP | BURRight Hand Superseded by part number: 87308839 |
| 9. | 87388899 | [1] | BEZEL | BURBezel |
| 10. | 892-11006 | [4] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 11. | 614-6030 | [4] | BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd | CAS Superseded by part number: 87317695 |
![]()
