纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-04) - SHIELDS, DOZER HYDRAULICS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

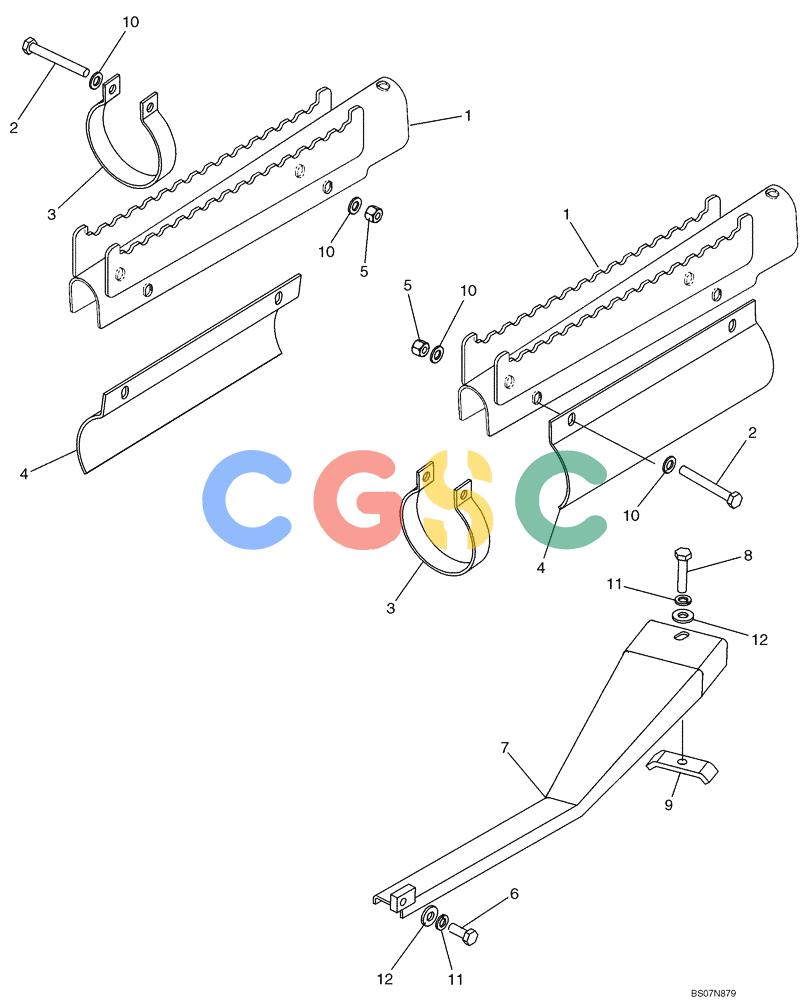

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87496581 | [2] | GUARD ASSY. | BURGUARD ASSY., Hose Shield; Angle Cylinder |
| 2. | 814-10080 | [4] | BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8 | CAS Superseded by part number: 129796A1 |
| 3. | 87434531 | [4] | CLAMP | CAS |
| 4. | 87496580 | [2] | GUARD ASSY. | BURSide Shield; Angle Cylinder |
| 5. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 6. | 627-10025 | [1] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106231 |
| 7. | 87434533 | [1] | GUARD ASSY. | BURTube Shield; Tilt Cylinder |
| 8. | 827-10045 | [1] | BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9 | CAS Superseded by part number: 86508618 |
| 9. | D40236 | [1] | CLAMP | CAS |
| 10. | 895-11010 | [8] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 11. | 892-11010 | [2] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 12. | 896-15010 | [2] | WASHER,11mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86639325 |
![]()
