纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-03) - BLADE, DOZER - EDGES, CUTTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

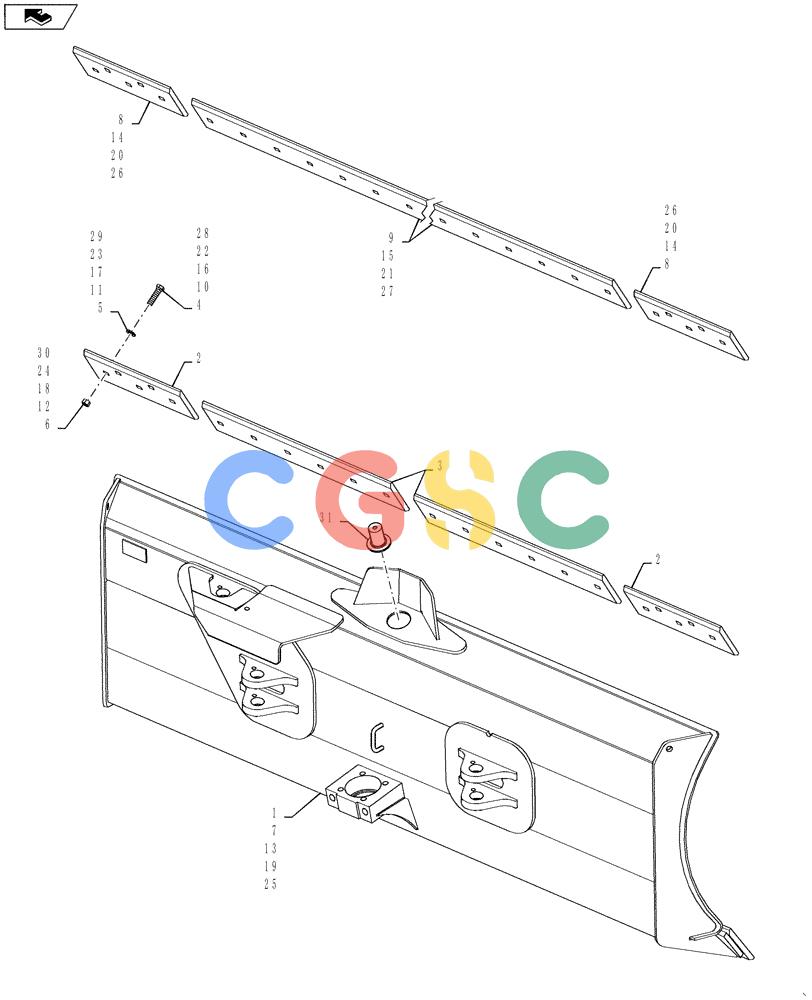

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87355561 | [1] | DOZER BLADE | BUR2642 mm (104 inch); Incl. Ref 1 - 6; Replaces 87405298 |
| . . | R41911 | [1] | EDGE, CUTTING | CASHeavy Duty Curved Cutting Edges; R.H.; If Used |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBlade |
| . . | R41910 | [1] | EDGE, CUTTING | CASHeavy Duty Curved Cutting Edges; L.H.; If Used |
| 3. | 115631A1 | [2] | EDGE | CAS867 mm (34-1/8 in); Center Cutting Edge; 6 Bolt Holes |
| 4. | R56474 | [22] | PLOW BOLT | CAS3/4 x 2-1/2; 8 Superseded by part number: 87547968 |
| 2. | R42490 | [2] | END | CAS442 mm (17-7/16 in); Cutting Edge; If Used |
| 5. | 92-11075 | [22] | LOCK WASHER,3/4" | CAS |
| 6. | 29-1012 | [22] | NUT,3/4"-10, G8 | CAS |
| . . | 87355563 | [1] | DOZER BLADE | BUR2794 mm (110 inch); Incl. Ref 7 - 12; Replaces 87405299 |
| 9. | 430157A1 | [1] | CUTTING EDGE | BUR1908 mm (75-1/8 in); Center Cutting Edge; 13 Bolt Holes |
| . . | 87355565 | [1] | DOZER BLADE | BUR3048 mm (120 in); Incl. Ref 13 - 18; Replaces 87405301 |
| 15. | 327539A1 | [1] | EDGE | CAS2158 mm (85 in); Center Cutting Edge; 14 Bolt Holes |
| . . | 87355566 | [1] | DOZER BLADE | BUR3150 mm (124 in); Incl. Ref 19 - 24; Replaces 87405302 |
| 21. | 126519A1 | [1] | EDGE | CAS2258 mm (88-7/8 in); Center Cutting Edge; 15 Bolt Holes |
| . . | 87355569 | [1] | DOZER BLADE | BUR3302 mm (130 in); Incl. Ref 25 - 30; Replaces 87405303 |
| 27. | 430350A1 | [1] | CUTTING EDGE | BUR2408 mm (94-13/16 in); Center Cutting Edge; 16 Bolt Holes |
| 31. | 419235A1 | [1] | PIN,44.42mm OD x 89.8mm L | BURPitch Pin; Pitchdozer Pivot; Welded |
![]()
