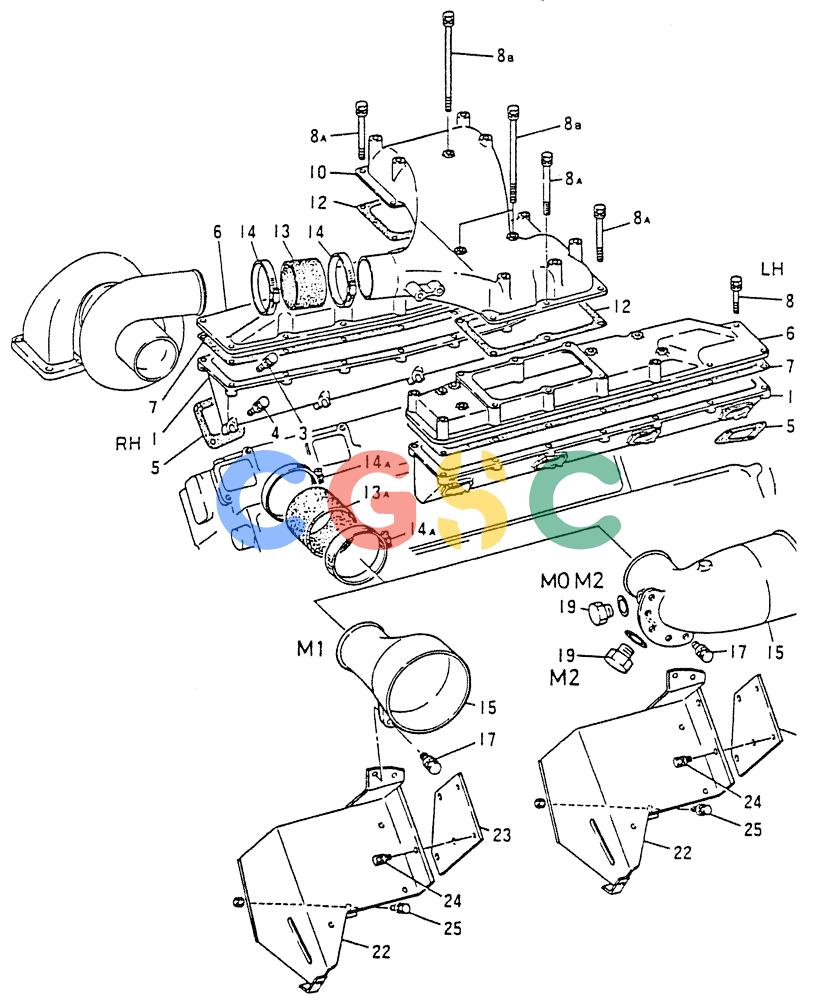

神钢零件查询(8DC9) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (01-018) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3123032301 | [2] | MANIFOLD,INLET | |
| 3. | VAMF302525 | [8] | BOLT | KOBBOLT,W/WSR 10X30 |
| 4. | VAMF302520 | [8] | BOLT,W/WSR 10X40 | |
| 5. | VA3123036200 | [8] | GASKET GASKET,INLET MANIF | GASKET GASKET,INLET MANIF |
| 6. | VAME063671 | [2] | COVER,INLET MANIF | |
| 7. | VAME063435 | [2] | GASKET | KOBGASKET,COVER |
| 8. | VAMF243655 | [3] | BOLT | KOBBOLT,W/WSR 8X30 |
| . . | VAMF240062 | [2] | 8X45 | |
| . . | VAMF240064 | [3] | 8X55 | |
| . . | VAMF243665 | [4] | BOLT | KOB8X70 |
| . . | VAMF240067 | [2] | BOLT 8X70 (FOR M2 ONLY) | BOLT 8X70 (FOR M2 ONLY) |
| . . | VAMF240068 | [4] | BOLT 8X75 (FOR M0, M1 ONLY) | BOLT 8X75 (FOR M0, M1 ONLY) |
| 8A. | VAMH000304 | [9] | BOLT | KOBBOLT,W/WSR 8X10 |
| 8B. | VAMH000669 | [3] | B0LT,W/WSR 8X200 | |
| 10. | VAME069302 | [1] | MANIFOLD,UPPER | |
| 12. | VAME067780 | [2] | GASKET | KOBGASKET,UPPER MANIF |
| 13. | VAME053204 | [1] | HOSE,RUBBER HOSE, RUBBER | HOSE,RUBBER HOSE, RUBBER |
| 13A. | VA3093034800 | [1] | HOSE HOSE,RUBBER | HOSE HOSE,RUBBER |
| 14. | VAMH021322 | [2] | CLIP, HOSE CLIP,HOSE, Start Year: 01-MAY-84 | CLIP, HOSE CLIP,HOSE, Start Year: 01-MAY-84 |
| . . | VAMH021323 | [2] | CLIP, HOSE, Years: -01-APR-84 | CLIP, HOSE, Years: -01-APR-84 |
| 14A. | VAMH021323 | [2] | CLIP, HOSE CLIP,HOSE | CLIP, HOSE CLIP,HOSE |
| 15. | VAME069303 | [1] | COUPLER,INLET (FOR M2 ONLY) | |
| . . | VAME069304 | [1] | (FOR M1ONLY) | |
| 17. | VAMF300841 | [2] | SCREW | KOBB0LT, W/WSR 10X20, Start Year: 01-OCT-85 Superseded by part number: 132461A1 |
| . . | VAMF302523 | [2] | BOLT, W/WSR 10X25, Years: -01-SEP-85 | |
| 19. | VAMH037723 | [1] | PLUG | KOBPLUG (FOR M0 ONLY) |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 22. | VAME069757 | [1] | BRACKET,CAR COOLER COMPR | |
| 23. | VAME069776 | [1] | CONNECTING PLATE,CAR COOLER | |
| 24. | VAMF244878 | [2] | BOLT BOLT,W/W5R 10X20 | BOLT BOLT,W/W5R 10X20 |
| 25. | VAMF244882 | [3] | BOLT,W/WSR 10X30 | |
| . . | VAMF430122 | [3] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
