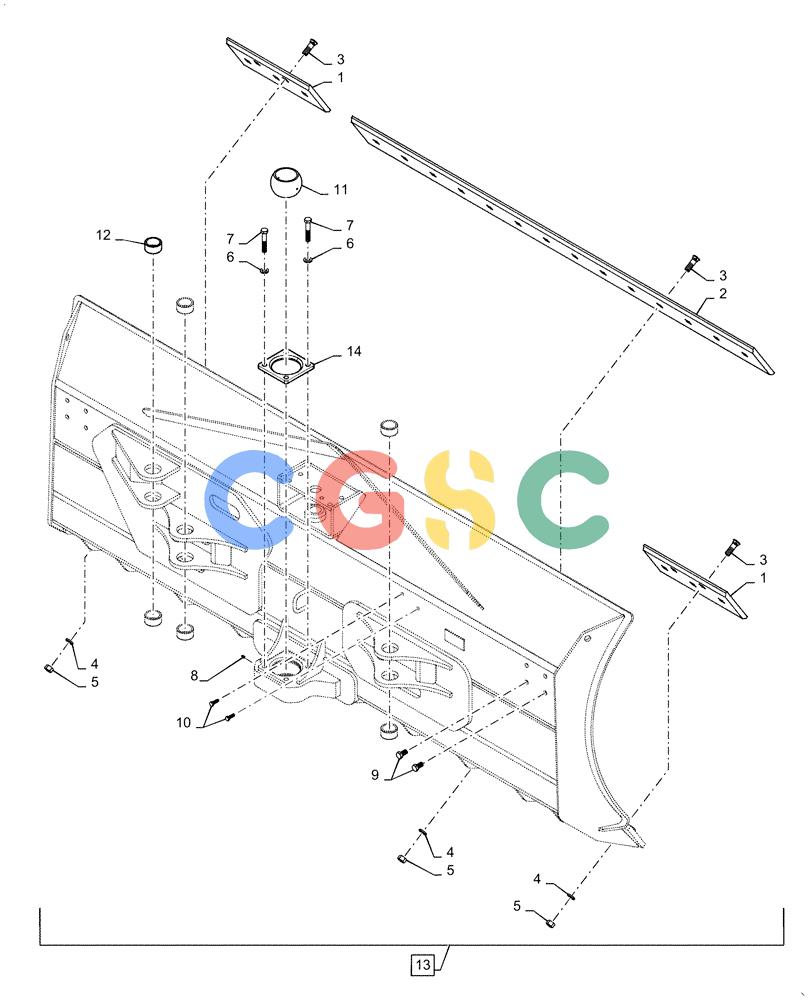

纽荷兰零件查询(D125C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (86.110.AD[02]) - BLADE, 132 INCH CUTTING EDGE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | R42490 | [2] | END | CASStandard |
| 2. | 87313382 | [1] | BIT | BUR |
| 3. | R56474 | [26] | PLOW BOLT | CASDome Hd, 3/4-10 X 2.5 Grade 8 Superseded by part number: 87547968 |
| 4. | 92-11075 | [26] | LOCK WASHER,3/4" | CAS |
| 5. | 29-1012 | [26] | NUT,3/4"-10, G8 | CAS |
| 6. | 87655044 | [4] | SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM | BURM16 X 17.75 X 31.5 X 4.2 Hts Boron |
| 7. | 86521733 | [4] | BOLT,Hex Flg, M16 x 90mm, Cl 10.9 | NH |
| 8. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 9. | 86508623 | [8] | BOLT,Hex, M16 x 30mm, Cl 10.9 | DUB |
| 10. | 43140 | [2] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8 | NH |
| 11. | 87314613 | [1] | BUSHING | BURRoller, 3.25 Diameter |
| 12. | D30756 | [6] | BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L | CAS |
| 13. | 84599293 | [1] | DOZER BLADE | BURIncl 1 - 12, 14 |
| 14. | 84545666 | [1] | CAP | BUR |
![]()
