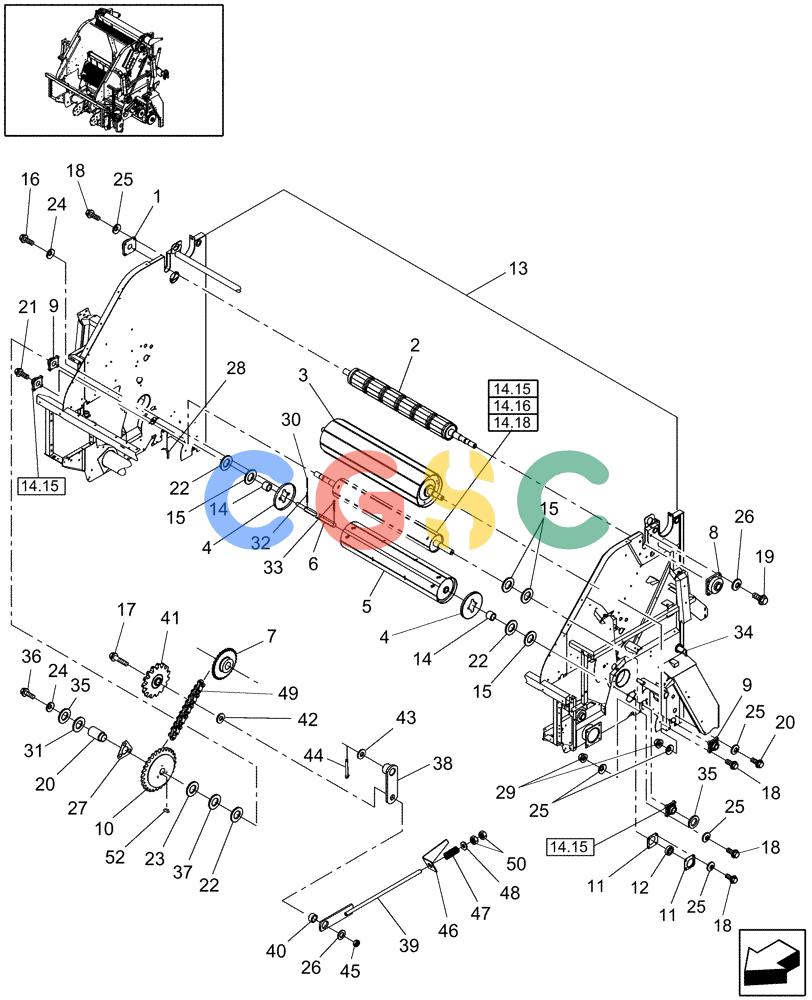

| 1. |
86609558
|
[1] |
BEARING ASSY,45mm ID
|
NH
1.772" ID
|
| 2. |
86635441
|
[1] |
ROLL
|
PA
Drive, Keyed to YAN 43708
|
| 2. |
87027869
|
[1] |
ROLLER
|
PA
Drive, Splined , Start Serial: 43709 Superseded by part number: 84496217
|
| 3. |
87398372
|
[1] |
ROLLER ASSY.,304.5mm OD x 1293mm L
|
PA
Floor, Includes: Square Rods
|
| 4. |
87602845
|
[2] |
SHIELD
|
PA
Trash
|
| 4. |
84388614
|
[2] |
SHIELD
|
PLO
Trash
|
| 5. |
87660302
|
[1] |
ROLL
|
NH
Fixed Dimple Superseded by part number: 84388620, 84388620, 84407607
|
| 5. |
84388620
|
[1] |
ROLL
|
PLO
Rib Superseded by part number: 84466744
|
| 6. |
86611130
|
[1] |
SHAFT
|
NH
|
| 7. |
86610109
|
[1] |
SPROCKET
|
NH
28T, RC60 Superseded by part number: 87660330
|
| 8. |
86590752
|
[1] |
BEARING ASSY
|
NH
1.969" ID Superseded by part number: 87660333
|
| 9. |
86590753
|
[2] |
BEARING ASSY
|
NH
1.575" ID
|
| 10. |
9621054
|
[1] |
CLUTCH ASSEMBLY
|
PA
Slip Superseded by part number: 87660307
|
| 11. |
86837676
|
[4] |
FLANGED BEARING
|
PA
Superseded by part number: 86979948
|
| 12. |
286909
|
[2] |
BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W
|
NH
1-1/2" Hex Bore Superseded by part number: 47577178
|
| 13. |
87630654
|
[1] |
FRAME
|
NH
Main, North America
|
| 13. |
87630648
|
[1] |
FRAME
|
NH
Main, Europe & R.O.W.
|
| 14. |
86622263
|
[2] |
HUB
|
NH
Superseded by part number: 87660304
|
| 15. |
86619043
|
[1] |
WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk
|
NH
Plated
|
| 16. |
43138
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 17. |
9804273
|
[1] |
BOLT,Hex, M16 x 60mm, Cl 8.8
|
NH
|
| 18. |
300389
|
[18] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 19. |
43168
|
[4] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 20. |
86979126
|
[1] |
SPACER,30.2mm ID x 41.53mm OD x 74mm L
|
PA
|
| 21. |
86629541
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 22. |
58821
|
[1] |
WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk
|
NH
.060" Thk
|
| 23. |
86627126
|
[1] |
WASHER,29.18mm ID x 51.56mm OD x 2.03mm Thk
|
NH
|
| 24. |
140045
|
[5] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 25. |
140046
|
[28] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 26. |
140048
|
[4] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 27. |
80707372
|
[1] |
BRACKET
|
NH
Superseded by part number: 86636168
|
| 28. |
87039466
|
[2] |
STRIPPER
|
PA
|
| 29. |
86512497
|
[4] |
FLANGE NUT,M12 x 1.75, Cl 10
|
NH
|
| 30. |
84024216
|
[1] |
LOCK PIN,5mm OD x 50mm L, Slotted
|
PLO
|
| 31. |
27696
|
[3/AR] |
WASHER,1.281" ID x 2" OD x .060" Thk
|
NH
Superseded by part number: 675
|
| 32. |
412689
|
[1] |
LOCK PIN,8mm OD x 50mm L, Slotted
|
NH
|
| 33. |
87400
|
[1] |
COTTER PIN,3/16" x 2"
|
WIN
|
| 34. |
86636753
|
[2] |
PIN
|
NH
|
| 35. |
86624647
|
[1] |
WASHER,10.8mm ID x 57mm OD x 6.1mm Thk
|
NH
|
| 36. |
9706704
|
[1] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
Lower, Square-Shaped
|
| 37. |
633743
|
[1] |
SPACER
|
NH
|
| 38. |
86615181
|
[1] |
ARM
|
NH
|
| 39. |
86615228
|
[1] |
STRAP
|
NH
|
| 40. |
590224
|
[1] |
SPACER,41/64” ID x .875” OD x 13/32” Wide
|
PA
Superseded by part number: 87020989
|
| 41. |
624618
|
[1] |
DRIVEN SPROCKET
|
GI
Superseded by part number: 86627639
|
| 42. |
27367
|
[1] |
WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk
|
NH
|
| 43. |
87381
|
[1] |
WASHER,0.81" ID x 1.47" OD x 0.13" Thk
|
NH
|
| 44. |
80754
|
[1] |
COTTER PIN,3/16" OD x 1-1/2" OAL
|
NH
|
| 45. |
100020
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 46. |
86643094
|
[1] |
INDICATOR
|
NH
|
| 47. |
22
|
[1] |
SPRING
|
GI
Superseded by part number: 86635754
|
| 48. |
80702
|
[1] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 49. |
86621149
|
[1] |
CHAIN,60, 57 Links x 19.05mm = 1085.85mm
|
NH
RC60, 57 Total Links, Includes: Ref. 48 & 49
|
| 50. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 51. |
86595275
|
[1] |
OFFSET LINK
|
ZED
Superseded by part number: 241-1716
|
| 52. |
165590
|
[1] |
CONNECTING LINK
|
PA
Superseded by part number: 241-1316
|
