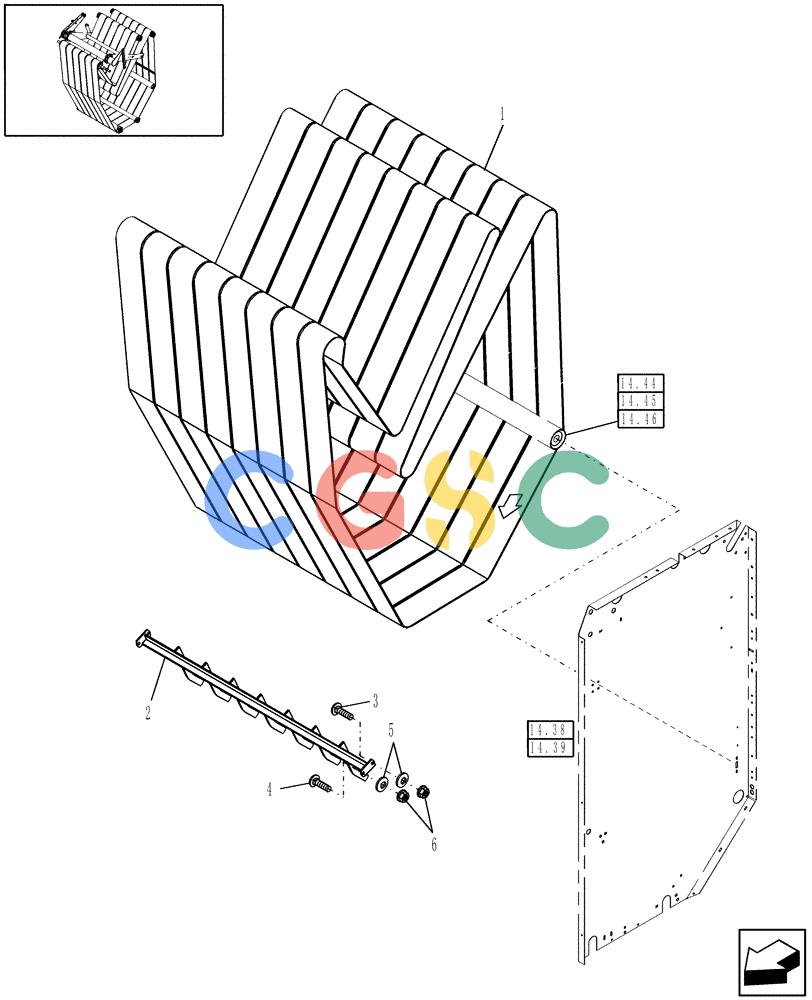

凯斯零件查询(RB464) - CASE IH ROUND BALER (7/07-1/14) (14.08) - ENDLESS CHEVRON BELT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84141595
|
[6] |
BELT,177.80 mm W x 10681.00 mm L
|
NH
Endless, Chevron, RB464
|
| 2. |
86637506
|
[1] |
GUIDE
|
NH
Belt, Optional, RB464 Superseded by part number: 84394681
|
| 3. |
86977995
|
[1] |
GUIDE
|
NH
Belt, Front, Optional Superseded by part number: 84329860, 84326050
|
| 3. |
811-10030
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 4. |
811-10060
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 86512447
|
| 5. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 6. |
825-2410
|
[4] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
