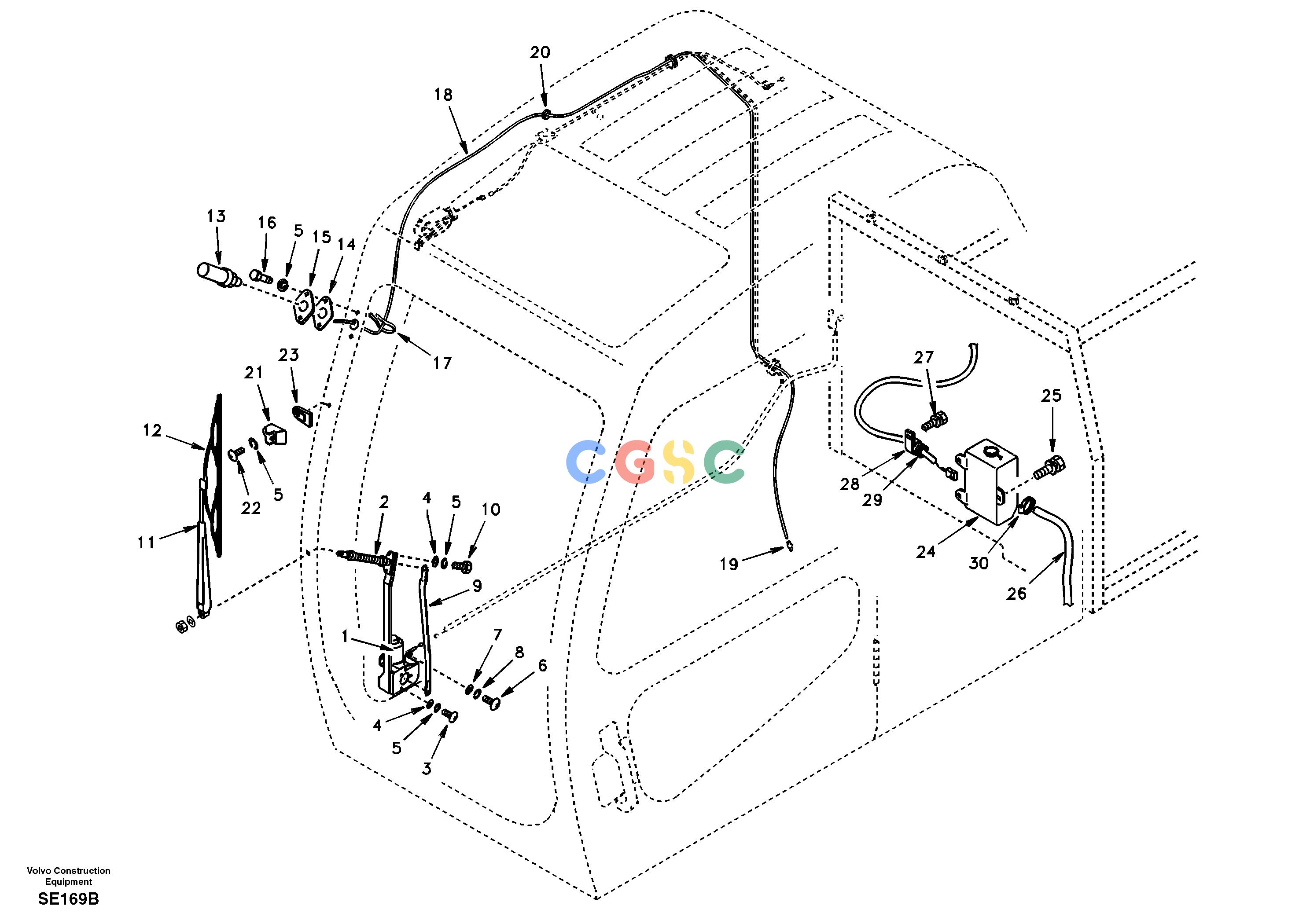

沃尔沃零件查询EC210 Windshield wiperNoneDD00A001-DD08A001SADD00A001NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA1122-04000
|
|
Cable harness
|
|
| 1. |
VOE14529140
|
|
Wiper motor
|
|
| 2. |
VOE14529149
|
|
Bracket
|
|
| 3. |
SA9021-10603
|
|
Cross recessed screw
|
|
| 4. |
VOE955892
|
|
Plain washer
|
|
| 5. |
SA9213-06000
|
|
Spring washer
|
|
| 6. |
SA9021-10803
|
|
Cross recessed screw
|
|
| 7. |
VOE993835
|
|
Plain washer
|
|
| 8. |
SA9213-08000
|
|
Spring washer
|
|
| 9. |
VOE14529150
|
|
Link
|
|
| 10. |
VOE14881310
|
|
Cross recessed screw
|
|
| 11. |
VOE14529141
|
|
Wiper arm
|
|
| 12. |
VOE14529142
|
|
Wiper blade
|
|
| 13. |
VOE14529209
|
|
Nozzle
|
|
| 14. |
SA1023-00730
|
|
Plate
|
|
| 15. |
VOE14529210
|
|
Bracket
|
|
| 16. |
SA9011-10603
|
|
Bolt
|
|
| 17. |
SA9314-02100
|
|
Cable tie
|
|
| 18. |
SA9962-10565
|
|
Cooling hose
|
|
| 19. |
VOE14529354
|
|
Hose connection
|
|
| 20. |
SA9751-11003
|
|
Grommet
|
|
| 21. |
SA1123-00980
|
|
Stop
|
|
| 22. |
SA9021-10607
|
|
Cross recessed screw
|
|
| 23. |
VOE14529200
|
|
Grommet
|
|
| 24. |
VOE14629274
|
[1] |
Washer pump
|
|
| |
VOE14729116
|
[1] |
Washer pump
|
|
| |
VOE14729118
|
[1] |
Cap
|
|
| |
VOE14629275
|
[1] |
Washer pump
|
|
| |
VOE14614043
|
[1] |
Washer pump
|
|
| |
VOE14629276
|
[1] |
Seal
|
|
| 25. |
SA9041-10804
|
[3] |
Bolt
|
|
| 26. |
VOE14881147
|
[1] |
Cooling hose
|
|
| 27. |
SA9041-11003
|
[1] |
Bolt
|
|
| 28. |
SA9315-01602
|
[1] |
Insulating clip
|
|
| 29. |
VOE14529133
|
[1] |
Grommet
|
|
| 30. |
VOE943469
|
|
Hose clamp
|
SER NO 3744-
|
