沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FTransmissionsFolding Propeller 2-blade, Later ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：次

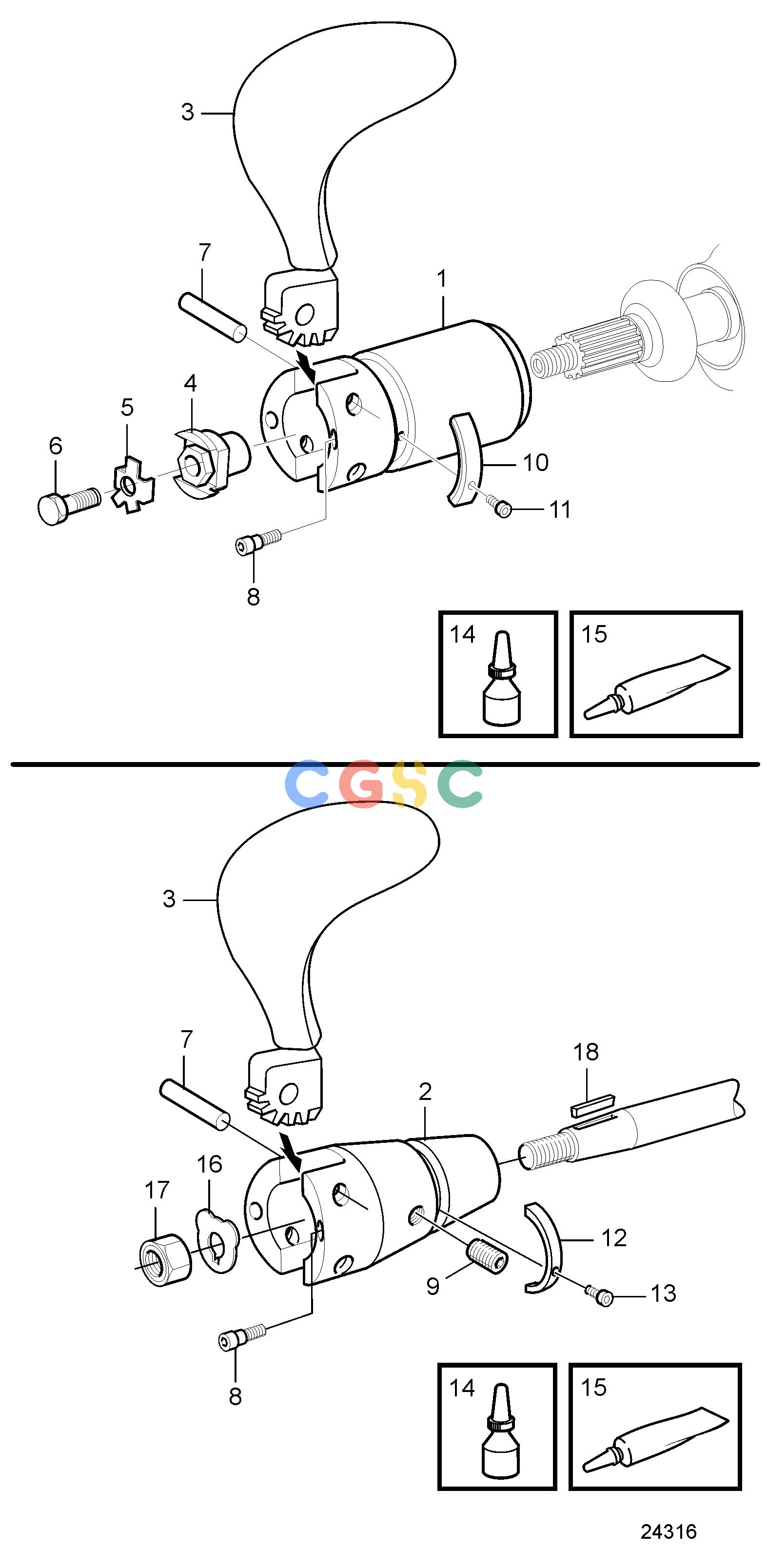

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21630720
|
[1] |
Hub kit
|
S-drive, (3888450)
|
| 2. |
21630721
|
[1] |
Hub kit
|
Shaft 25mm, (3888453)
|
| 2. |
21630722
|
[1] |
Hub kit
|
Shaft 30mm, (3888456)
|
| 2. |
21630723
|
[1] |
Hub kit
|
Shaft 1'', (3888459)
|
| 2. |
3888485
|
[1] |
Hub kit
|
Shaft 1.25''
|
| 2. |
21630725
|
[1] |
Hub kit
|
Shaft pre drilled, (3888488)
|
| 3. |
21629132
|
[1] |
Propeller blade kit
|
Left 14x7
|
| 3. |
21629140
|
[1] |
Propeller blade kit
|
Left 14x8
|
| 3. |
21629147
|
[1] |
Propeller blade kit
|
Left 15x8
|
| 3. |
21629158
|
[1] |
Propeller blade kit
|
Left 15x10
|
| 3. |
21629173
|
[1] |
Propeller blade kit
|
Left 16x10
|
| 3. |
21629182
|
[1] |
Propeller blade kit
|
Left 16x11, (3888411)
|
| 3. |
21629190
|
[1] |
Propeller blade kit
|
Left 17x11
|
| 3. |
21629198
|
[1] |
Propeller blade kit
|
Left 17x12, (3888427)
|
| 3. |
21629205
|
[1] |
Propeller blade kit
|
Left 18x12
|
| 3. |
21629214
|
[1] |
Propeller blade kit
|
Left 19x13
|
| 3. |
21629136
|
[1] |
Propeller blade kit
|
Right 14x7
|
| 3. |
21629144
|
[1] |
Propeller blade kit
|
Right 14x8
|
| 3. |
21629152
|
[1] |
Propeller blade kit
|
Right 15x8
|
| 3. |
21629167
|
[1] |
Propeller blade kit
|
Right 15x10
|
| 3. |
21629177
|
[1] |
Propeller blade kit
|
Right 16x10
|
| 3. |
21629186
|
[1] |
Propeller blade kit
|
Right 16x11
|
| 3. |
21629194
|
[1] |
Propeller blade kit
|
Right 17x11
|
| 3. |
21629201
|
[1] |
Propeller blade kit
|
Right 17x12
|
| 3. |
21629211
|
[1] |
Propeller blade kit
|
Right 18x12
|
| 3. |
21629218
|
[1] |
Propeller blade kit
|
Right 19x13
|
| 4. |
3584466
|
[1] |
Propeller nut
|
Included in hub kit
|
| 5. |
3851994
|
[1] |
Lock washer
|
Included in hub kit
|
| 6. |
946730
|
[1] |
Hexagon screw
|
Included in hub kit
|
| 7. |
3888495
|
[2] |
Shaft
|
Included in hub kit
|
| 8. |
3595221
|
[2] |
Lock screw
|
Included in hub kit
|
| 9. |
3581246
|
[2] |
Screw
|
Included in hub kit
|
| 10. |
3858399
|
[1] |
Zinc anode kit
|
S-drive, Included in hub kit
|
| 10. |
3858400
|
[1] |
Magnesium anode kit
|
S-drive
|
| 11. |
963677
|
[3] |
Hex. socket screw
|
|
| 12. |
3888491
|
[1] |
Anode kit
|
Shaft, Included in hub kit
|
| 12. |
3888493
|
[1] |
Anode kit
|
Shaft
|
| 13. |
963675
|
[2] |
Hex. socket screw
|
|
| 14. |
1161053
|
[1] |
Locking fluid
|
Included in hub kit
|
| 15. |
828250
|
[1] |
Lubricating grease
|
Included in propeller blade kit
|
| 16. |
873475
|
[1] |
Tab washer
|
M16
|
| 16. |
873488
|
[1] |
Tab washer
|
M20
|
| 17. |
873473
|
[1] |
Nut
|
M16
|
| 17. |
873486
|
[1] |
Nut
|
M20
|
| 18. |
873474
|
[1] |
Key
|
For 25mm propeller shaft.
|
| 18. |
873487
|
[1] |
Key
|
For 30mm propeller shaft.
|
