神钢零件查询(6D16-T) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (02-019) - OIL COOLER Kobelco
广数供应链运营团队, 18 02月, 2025，浏览：次

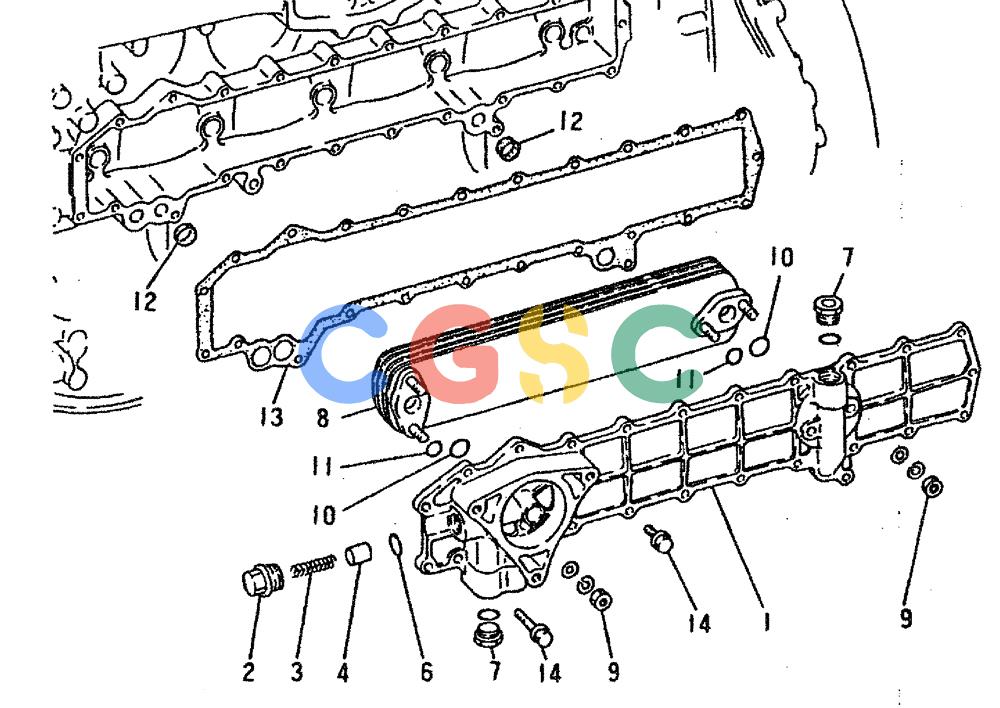

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-11. | VAME070018 | [1] | COOLER ASSY. | KOBM0 ONLY |
| . . | VAME074018 | [1] | COOLER ASSY. | KOBM1 ONLY |
| 1-7. | VAME034573 | [1] | COVER | KOBOIL COOLER |
| 1. | VAME034572 | [1] | COVER | KOB |
| 2. | VAME034554 | [1] | PLUG | KOBBY-PASS /V |
| 3. | VAME034700 | [1] | SPRING | KOB |
| 4. | VAME034556 | [1] | VALVE | KOBBY-PASS |
| 6. | VAMH035092 | [1] | O-RING | KOBO-RING 14 Superseded by part number: VA0550700140 |
| 7. | VAMH037117 | [3] | PLUG | KOBPLUG |
| . . | VAMH035044 | [3] | O-RING | KOBO-RING 18 Superseded by part number: 240098A1 |
| 8. | VAME034561 | [1] | OIL COOLER FILTER | KOBO/C (3), M0 ONLY |
| . . | VAME074020 | [1] | ELEMENT | KOB(4), M1 ONLY |
| 9. | VAMF430006 | [4] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [4] | WASHER | KOBWASHER, SPG 10 |
| . . | VAMF450006 | [4] | NUT | KOBWASHER, PLAIN 10 Superseded by part number: 133247A1 |
| 10. | VAMH035091 | [2] | O-RING | KOBO-RING |
| 11. | VAMH035092 | [4] | O-RING | KOBO-RING Superseded by part number: VA0550700140 |
| 12. | VAMH035094 | [3] | O-RING | KOBO-RING |
| 13. | VAME034031 | [1] | GASKET | KOB Superseded by part number: 77269118, VAME074293 |
| 14. | VAMF140226 | [23] | SCREW | KOBBOLT, FLANGE, 8 X 22 |
