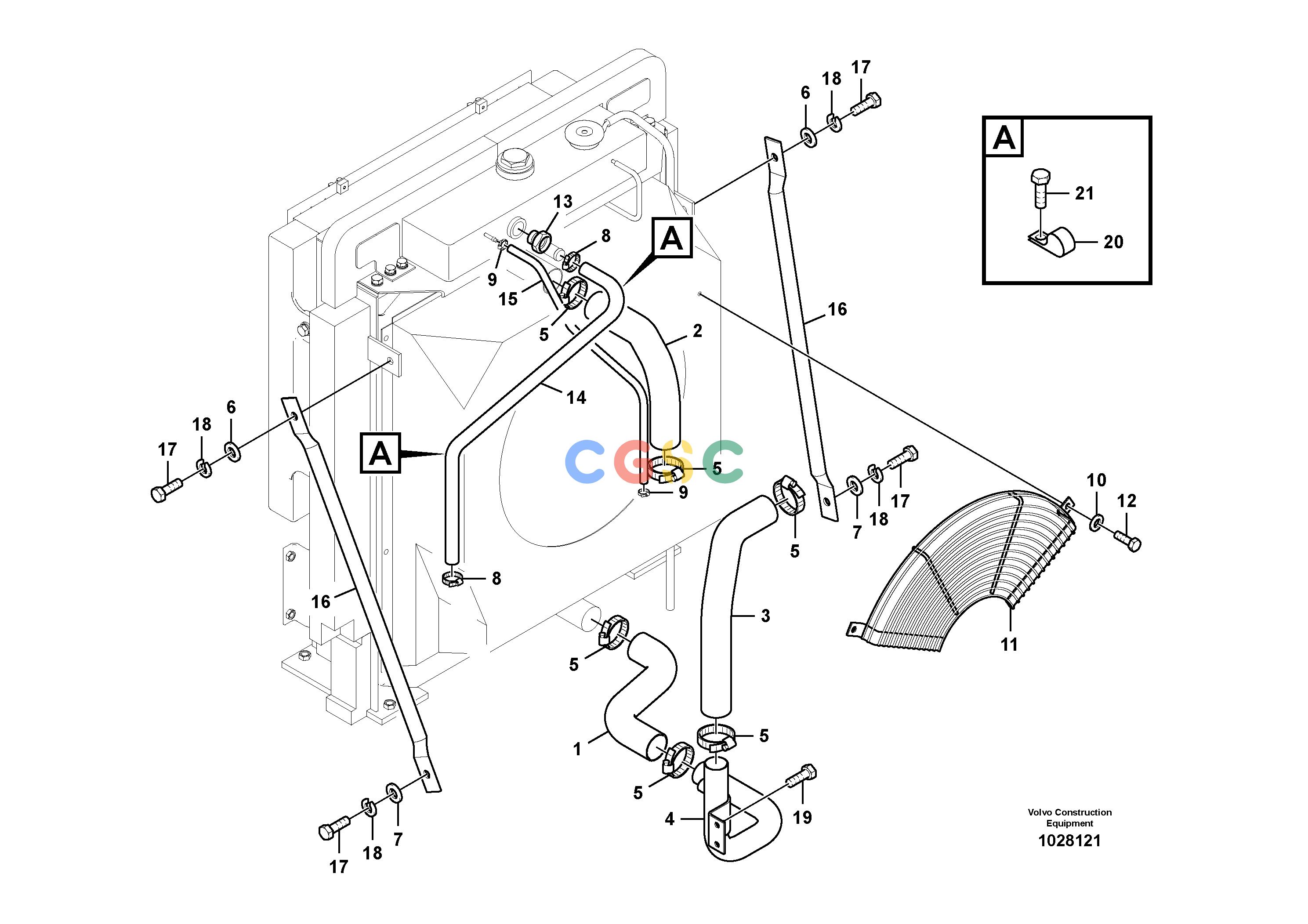

沃尔沃零件查询EC135B Cooling systemSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
VOE14506005
|
[1] |
Hose
|
|
2. |
VOE14506004
|
[1] |
Hose
|
|
3. |
VOE14506007
|
[1] |
Hose
|
|
4. |
VOE14517021
|
[1] |
Pipe
|
SER NO 20001-20041
|
|
VOE14548950
|
[1] |
Pipe
|
SER NO 20042-20063
|
|
VOE14553068
|
[1] |
Pipe
|
SER NO 20064-
|
5. |
VOE11109241
|
[6] |
Clamp
|
|
6. |
VOE992042
|
[2] |
Plain washer
|
|
7. |
VOE14532477
|
[2] |
Washer
|
|
8. |
SA9312-10175
|
[2] |
Hose clamp
|
|
9. |
VOE943469
|
[2] |
Hose clamp
|
|
10. |
VOE993835
|
[2] |
Plain washer
|
|
11. |
VOE14524715
|
[1] |
Guard
|
|
12. |
VOE983241
|
[2] |
Hexagon screw
|
|
13. |
VOE14506388
|
[1] |
Gauge
|
|
14. |
VOE14881164
|
[1] |
Cooling hose
|
SER NO 20001-20063
|
|
VOE14880430
|
[1] |
Cooling hose
|
SER NO 20064-
|
15. |
VOE14881149
|
[1] |
Cooling hose
|
|
16. |
VOE14506002
|
[2] |
Stay
|
|
17. |
VOE978933
|
[4] |
Hexagon screw
|
|
18. |
VOE955923
|
[4] |
Spring washer
|
|
19. |
VOE946441
|
[2] |
Flange screw
|
|
20. |
SA9315-03001
|
[2] |
Clip
|
SER NO 20064-
|
21. |
VOE946471
|
[2] |
Flange screw
|
SER NO 20064-
|
