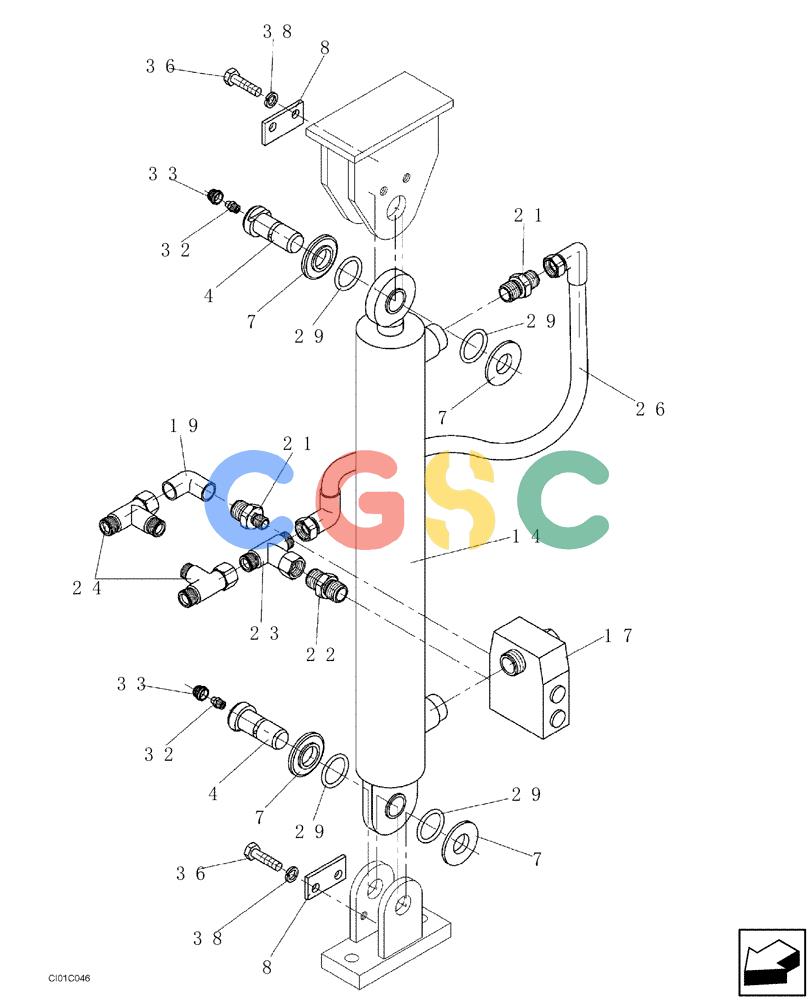

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (10-008-00[01]) - HYDRAULIC CIRCUIT - ENGINE HOOD OPENING CYLINDER - LEFT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | ND049262 | [2] | PIN | STA |
| 7. | ND049260 | [4] | INSERT | STA |
| 8. | ND049268 | [2] | COVER PLATE | STA |
| 14. | ND068121 | [1] | CYLINDER | STA |
| 17. | ND067918 | [1] | VALVE | STA |
| 19. | ND062414 | [1] | ELBOW | STA |
| 21. | ND062200 | [2] | HYD CONNECTOR | STA |
| 22. | ND062221 | [1] | HYD CONNECTOR | STA |
| 23. | ND062326 | [1] | HYD CONNECTOR | STA |
| 24. | ND062313 | [2] | HYD CONNECTOR | STA |
| 26. | ND101576 | [1] | FLEXIBLE HOSE | STA6 x 40 |
| 29. | ND079727 | [4] | O-RING | STA33 x 2,5 |
| 32. | ND070133 | [2] | LUBE NIPPLE,M10 x 1 | STA |
| 33. | ND064758 | [2] | PLUG | STA |
| 36. | ND021292 | [4] | BOLT | STAM8 x 12 |
| 38. | ND035940 | [4] | SPRING WASHER | STAID 8 |
![]()
