纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (10-021-00[01]) - HAND PUMP - OPERATOR'S COMPARTMENT MANUAL TILTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

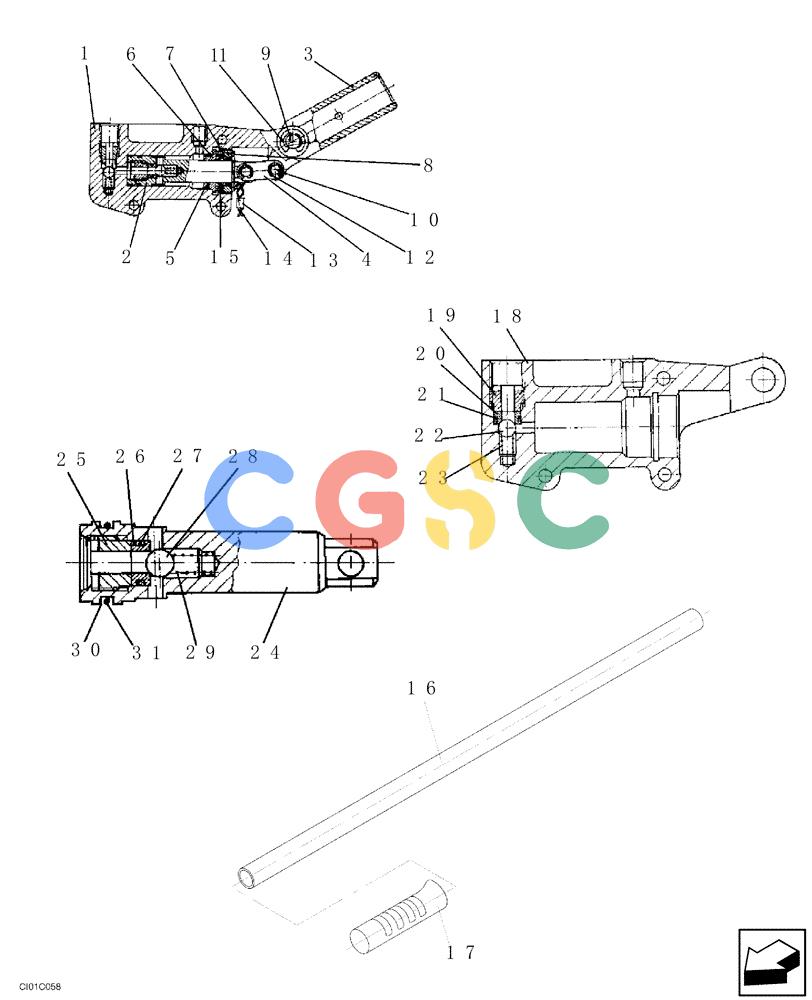

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ND067870 | [1] | HYDRAULIC PUMP | STA |
| 1. | ND102694 | [1] | BODY | STA |
| 2. | ND102695 | [1] | PISTON | STA |
| 3. | ND102687 | [1] | FORK | STA |
| 4. | ND102684 | [2] | CONNECTING LINK | STA |
| 5. | ND102692 | [1] | INSERT | STA |
| 6. | ND102699 | [1] | RING | STA520,5 x 2,2 |
| 7. | ND102700 | [1] | SEAL | STA |
| 8. | ND102693 | [1] | BOLT | STA |
| 9. | ND102686 | [1] | PIN | STA |
| 10. | ND102685 | [2] | PIN | STA |
| 11. | ND102703 | [2] | RING | STA |
| 12. | ND102702 | [4] | RING | STA |
| 13. | ND102704 | [1] | LEAD SEAL | STA |
| 14. | ND102706 | [1] | WIRE | STA |
| 15. | ND102707 | [1] | RING | STA |
| 16. | ND030922 | [1] | FLEXIBLE HOSE | STA |
| 17. | ND078404 | [1] | HANDLE GRIP | STA |
| 18. | ND102688 | [1] | BODY | STA |
| 19. | ND102689 | [1] | NUT | STA |
| 20. | ND102690 | [1] | INSERT | STA |
| 21. | ND102698 | [1] | SEAL | STA |
| 22. | ND102705 | [1] | BALL | STA |
| 23. | ND102701 | [1] | SPRING | STA |
| 24. | ND102691 | [1] | PISTON | STA |
| 30. | ND102696 | [1] | RING | STA20,5 x 25 x 1 |
| 31. | ND102697 | [1] | SEAL | STA19,5 x 2,8 |
