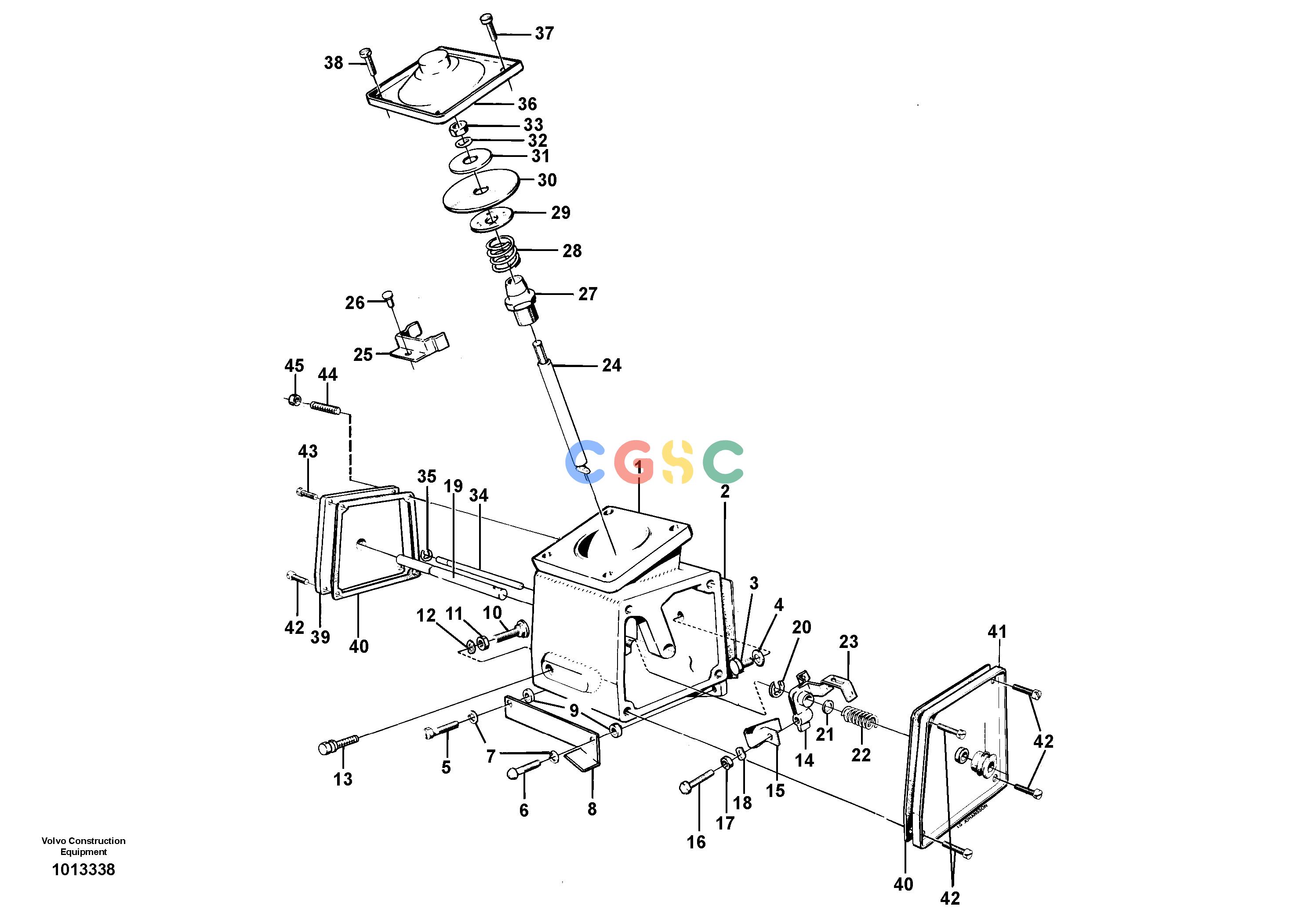

沃尔沃零件查询4500 Smoke limiter4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE7241794
|
[1] |
Washer
|
|
| 5. |
VOE956096
|
[1] |
Cross recessed screw
|
|
| 6. |
VOE244741
|
[1] |
Screw
|
|
| 7. |
VOE13941906
|
[2] |
Washer
|
|
| 8. |
VOE7241648
|
[1] |
Indicator hand
|
|
| |
VOE243257
|
[1] |
Smoke limiter
|
|
| 9. |
VOE7241795
|
[2] |
Washer
|
|
| 10. |
VOE863823
|
[1] |
Screw
|
|
| 11. |
VOE13955781
|
[1] |
Nut
|
|
| 12. |
VOE13941906
|
[1] |
Washer
|
|
| 13. |
VOE243074
|
[1] |
Screw
|
|
| 14. |
VOE7241782
|
[0001] |
Lever
|
|
| 15. |
VOE7243260
|
[0001] |
Spring
|
|
| 16. |
VOE243827
|
[0001] |
Screw
|
|
| 17. |
VOE13955781
|
[0001] |
Nut
|
|
| 18. |
VOE13941906
|
[0001] |
Washer
|
|
| 1. |
|
[1] |
Housing
|
|
| 19. |
VOE241783
|
[0001] |
Shaft
|
|
| 20. |
VOE13951669
|
[0001] |
Retaining ring
|
|
| 21. |
VOE233816
|
[0001] |
Washer
|
|
| 22. |
VOE7241787
|
[0001] |
Spring
|
|
| 23. |
VOE7241780
|
[0001] |
Yoke
|
|
| 24. |
VOE7241771
|
[0001] |
Control rod
|
|
| 25. |
VOE837741
|
[0001] |
Spring
|
|
| 26. |
VOE837744
|
[0001] |
Protection
|
|
| 27. |
VOE7241770
|
[0001] |
Bushing
|
|
| 28. |
VOE243258
|
[0001] |
Spring
|
|
| 2. |
VOE1698172
|
[1] |
Gasket
|
|
| 29. |
VOE241774
|
[0001] |
Spring
|
|
| 30. |
VOE241775
|
[0001] |
Diaphragm
|
|
| 31. |
VOE7241776
|
[0001] |
Washer
|
|
| 32. |
VOE13941906
|
[0001] |
Washer
|
|
| 33. |
VOE13955781
|
[0001] |
Nut
|
|
| 34. |
VOE7241788
|
[0001] |
Pin
|
|
| 35. |
VOE951667
|
[0001] |
Retaining ring
|
|
| 36. |
|
[0001] |
Cover
|
|
| 37. |
VOE14014666
|
[0002] |
Screw
|
|
| 38. |
VOE14014666
|
[0002] |
Screw
|
|
| 3. |
VOE13955294
|
[1] |
Screw
|
|
| 39. |
VOE7241789
|
[0001] |
Cover
|
|
| 40. |
VOE1698171
|
[0002] |
Gasket
|
|
| 41. |
VOE241791
|
[0001] |
Cover
|
|
| 42. |
VOE956092
|
[0005] |
Cross recessed screw
|
|
| 43. |
VOE7239318
|
[0002] |
Screw
|
|
| 44. |
VOE243273
|
[0001] |
Stud
|
|
| 45. |
VOE13955781
|
[0001] |
Nut
|
|
| 46. |
VOE241792
|
[0001] |
Bellows
|
|
![]()
