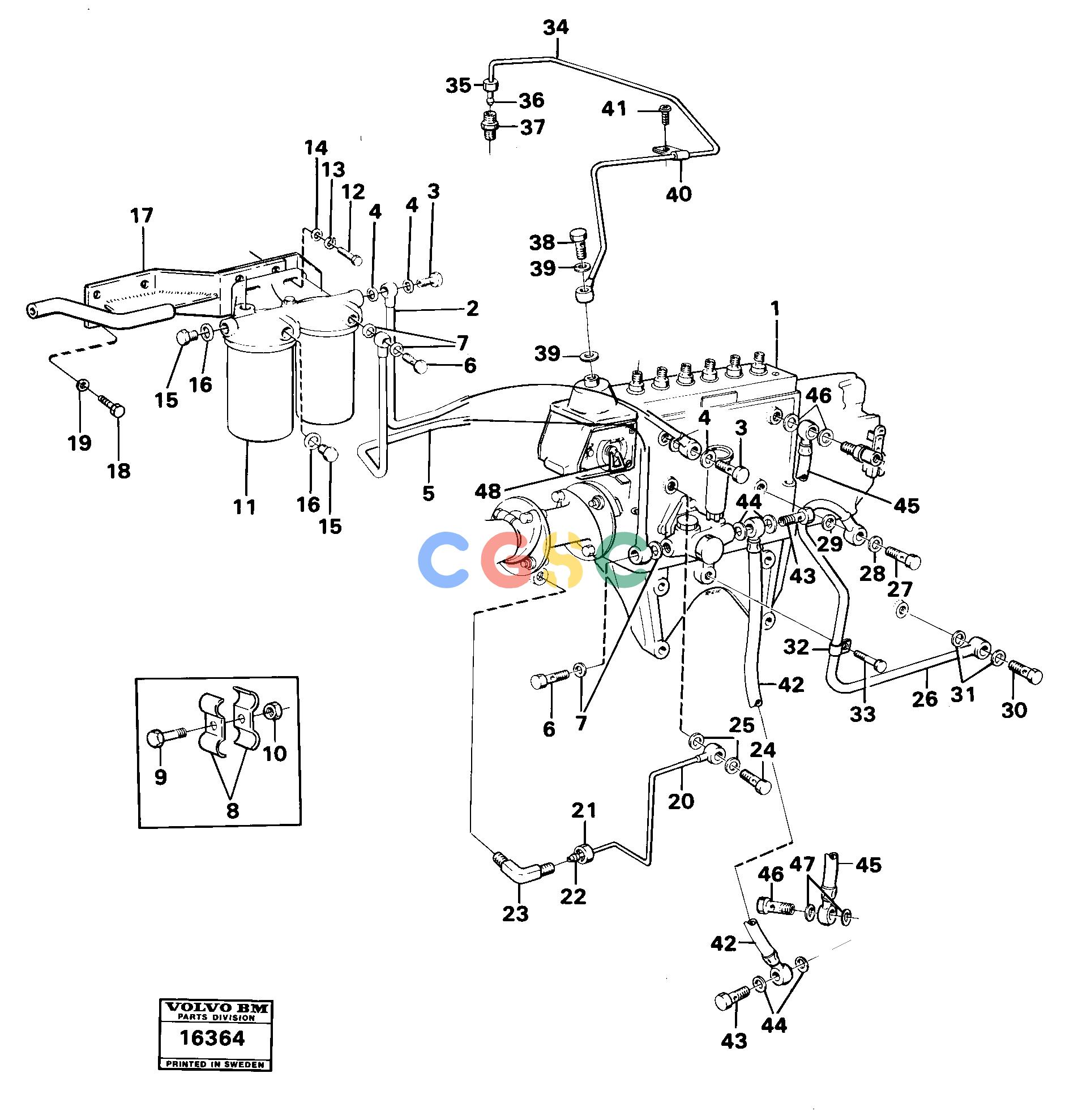

沃尔沃零件查询4500 Fuel pipes fuel injection, Fuel Filter4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4771408
|
[0001] |
Tube
|
TD 70 H
|
| |
VOE4771453
|
[0001] |
Tube
|
TD 70 G
|
| 6. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 7. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 8. |
VOE944289
|
[0002] |
Clamp
|
TD 70 H
|
| |
VOE7402404
|
[0002] |
Clamp
|
TD 70 G
|
| 9. |
VOE950048
|
[0002] |
Cross recessed screw
|
TD 70 H
|
| |
VOE955533
|
[0002] |
Hexagon screw
|
TD 70 G
|
| 1. |
|
[0001] |
Injcection pump
|
|
| 10. |
VOE955825
|
[0002] |
Hexagon nut
|
|
| 11. |
|
[0001] |
Fuel filter
|
|
| 12. |
VOE955536
|
[0002] |
Hexagon screw
|
|
| 13. |
VOE955950
|
[0002] |
Toothed washer
|
TD 70 H
|
| |
VOE955949
|
[0002] |
Toothed washer
|
TD 70 G
|
| 14. |
VOE13960142
|
[0002] |
Washer
|
|
| 15. |
VOE960630
|
[0003] |
Plug
|
|
| 16. |
VOE13947621
|
[0003] |
Plane gasket
|
|
| 17. |
VOE4771396
|
[0001] |
Anchorage
|
|
| 18. |
VOE955534
|
[0004] |
Hexagon screw
|
|
| 19. |
VOE13942336
|
[0004] |
Spring washer
|
|
| 2. |
VOE4771409
|
[0001] |
Tube
|
TD 70 H
|
| 20. |
VOE466168
|
[0001] |
Delivery pipe
|
TD 70 H
|
| |
VOE466663
|
[0001] |
Tube
|
TD 70 G
|
| 21. |
VOE954356
|
[0001] |
Fitting nut
|
|
| 22. |
VOE954364
|
[0001] |
Ferrule
|
|
| 23. |
VOE329638
|
[0001] |
Elbow nipple
|
|
| 24. |
VOE7048634
|
[0001] |
Hollow screw
|
|
| |
VOE4771454
|
[0001] |
Tube
|
TD 70 G
|
| 25. |
VOE957173
|
[0002] |
Gasket
|
|
| 26. |
VOE466167
|
[0001] |
Return line
|
TD 70 H
|
| |
VOE466499
|
|
Tube
|
TD 70 G
|
| 27. |
VOE942007
|
[0001] |
Hollow screw
|
|
| 28. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 29. |
VOE13947621
|
[0001] |
Plane gasket
|
|
| 3. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 30. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 31. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 32. |
VOE7018964
|
[0001] |
None
|
TD 70 H
|
| |
VOE18387
|
[0001] |
Clamp
|
TD 70 G
|
| 33. |
VOE955564
|
[0001] |
Hexagon screw
|
TD 70 H
|
| |
VOE950045
|
[0001] |
Cross recessed screw
|
TD 70 G
|
| 34. |
VOE466012
|
[0001] |
Tube
|
TD 70 H
|
| |
VOE4771113
|
[0001] |
Pipe
|
TD 70 G
|
| 35. |
VOE954357
|
[0001] |
Nut
|
|
| 36. |
VOE954365
|
[0001] |
Olive
|
|
| 37. |
VOE949554
|
[0001] |
Nipple
|
|
| 38. |
VOE968178
|
[0001] |
Hollow screw
|
|
| 39. |
VOE13947282
|
[0002] |
Gasket
|
|
| 4. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 40. |
VOE942400
|
[0001] |
Clamp
|
|
| 41. |
VOE950020
|
[0001] |
Cross recessed screw
|
TD 70 H
|
| |
VOE950044
|
[0001] |
Cross recessed screw
|
TD 70 G
|
| 42. |
VOE4774631
|
[0001] |
Fuel hose
|
|
| 43. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 44. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 45. |
VOE4774632
|
[0001] |
Fuel hose
|
|
| 46. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 47. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| |
VOE4881440
|
[0001] |
Cable tie
|
|
| 48. |
VOE422525
|
[0001] |
Towing eye
|
|
![]()
