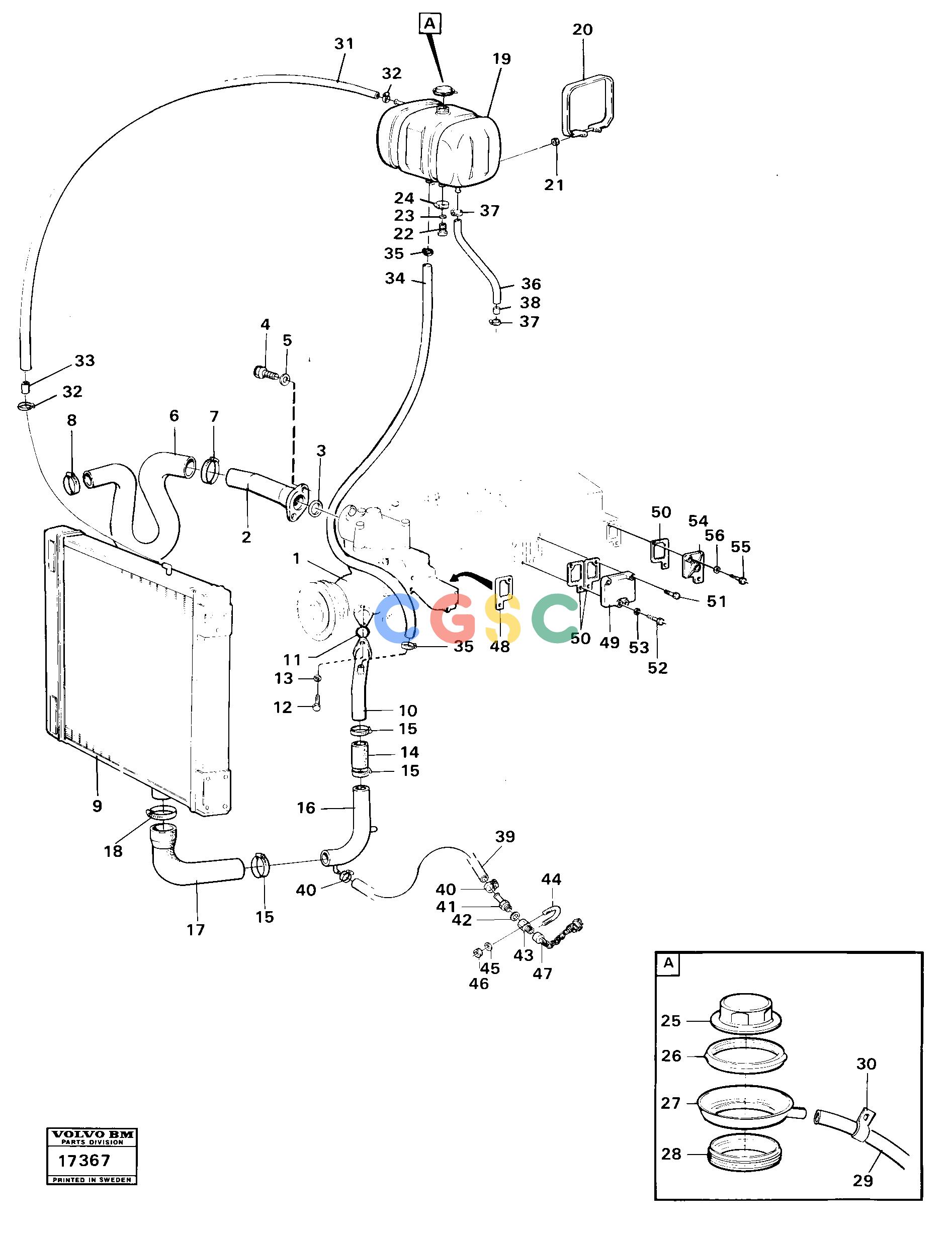

沃尔沃零件查询4500 Cooling system tillv nr 2056-4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 49. |
VOE421159
|
[0001] |
Water pipe
|
|
| 50. |
VOE424623
|
[0003] |
Gasket
|
|
| 51. |
VOE955537
|
[0002] |
Hexagon screw
|
|
| 52. |
VOE955539
|
[0002] |
Hexagon screw
|
|
| 53. |
VOE13942336
|
[0004] |
Spring washer
|
|
| 54. |
VOE421161
|
[0001] |
Cap
|
|
| 55. |
VOE955535
|
[0002] |
Hexagon screw
|
|
| 56. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 6. |
VOE4771398
|
[0001] |
Hose
|
|
| 7. |
VOE943479
|
[0001] |
Hose clamp
|
|
| 8. |
VOE943480
|
[0001] |
Hose clamp
|
|
| 9. |
|
[0001] |
Radiator
|
|
| 1. |
|
[0001] |
Water pump
|
|
| 10. |
VOE4771397
|
[0001] |
Connection pipe
|
|
| 11. |
VOE925069
|
[0001] |
O-ring
|
|
| 12. |
VOE955539
|
[0002] |
Hexagon screw
|
|
| 13. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 14. |
VOE943370
|
[REQ] |
Hose
|
|
| 15. |
VOE943478
|
[0003] |
Hose clamp
|
|
| 16. |
VOE4771413
|
[0001] |
Tube
|
|
| 17. |
VOE4771406
|
[0001] |
Hose
|
|
| 18. |
VOE943480
|
[0001] |
Hose clamp
|
|
| 19. |
VOE11110211
|
[1] |
Expansion tank
|
|
| 2. |
VOE4771547
|
[0001] |
Connection pipe
|
|
| 20. |
VOE4804563
|
[2] |
Tensioning band
|
|
| 21. |
VOE955780
|
[2] |
Hexagon nut
|
|
| 22. |
VOE4804282
|
[1] |
Plug
|
|
| 23. |
VOE13960164
|
[1] |
O-ring
|
|
| 24. |
|
[1] |
Clamp
|
|
| 25. |
VOE1542591
|
[1] |
Cap
|
|
| 26. |
VOE4804409
|
[1] |
Sealing ring
|
|
| 27. |
VOE11431708
|
[1] |
Collar
|
|
| 28. |
VOE4804410
|
[1] |
Sealing ring
|
|
| 29. |
VOE941363
|
[REQ] |
Hose
|
L=1600
|
| 3. |
VOE925091
|
[0001] |
O-ring
|
|
| 30. |
VOE4881440
|
[2] |
Cable tie
|
|
| 31. |
VOE943367
|
[REQ] |
Hose
|
L=1495
|
| 32. |
VOE943471
|
[2] |
Hose clamp
|
|
| 33. |
VOE11033572
|
[0001] |
Restrictor
|
|
| 34. |
VOE4856263
|
[REQ] |
Radiator hose
|
L=800
|
| 35. |
VOE943475
|
[0002] |
Hose clamp
|
|
| 36. |
VOE943367
|
[REQ] |
Hose
|
L=500
|
| 37. |
VOE943471
|
[0002] |
Hose clamp
|
|
| 38. |
VOE11033572
|
[0001] |
Restrictor
|
|
| 39. |
VOE943367
|
[REQ] |
Hose
|
L=500
|
| 4. |
VOE13940115
|
[0002] |
Screw
|
|
| 40. |
VOE943471
|
[0002] |
Hose clamp
|
|
| 41. |
VOE945567
|
[0001] |
Nipple
|
|
| 42. |
VOE948883
|
[0001] |
Gasket
|
|
| 43. |
VOE4786585
|
[0001] |
Insert nipple
|
|
| 44. |
VOE4739982
|
[0001] |
Clamp
|
|
| 45. |
VOE13941907
|
[0002] |
Washer
|
|
| 46. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 47. |
VOE11147580
|
[0001] |
Dust cover
|
SER NO - 3855
|
| |
VOE11194108
|
[0001] |
Protecting sleeve
|
SER NO 3856 -
|
| 48. |
VOE420160
|
[0001] |
Gasket
|
|
![]()
