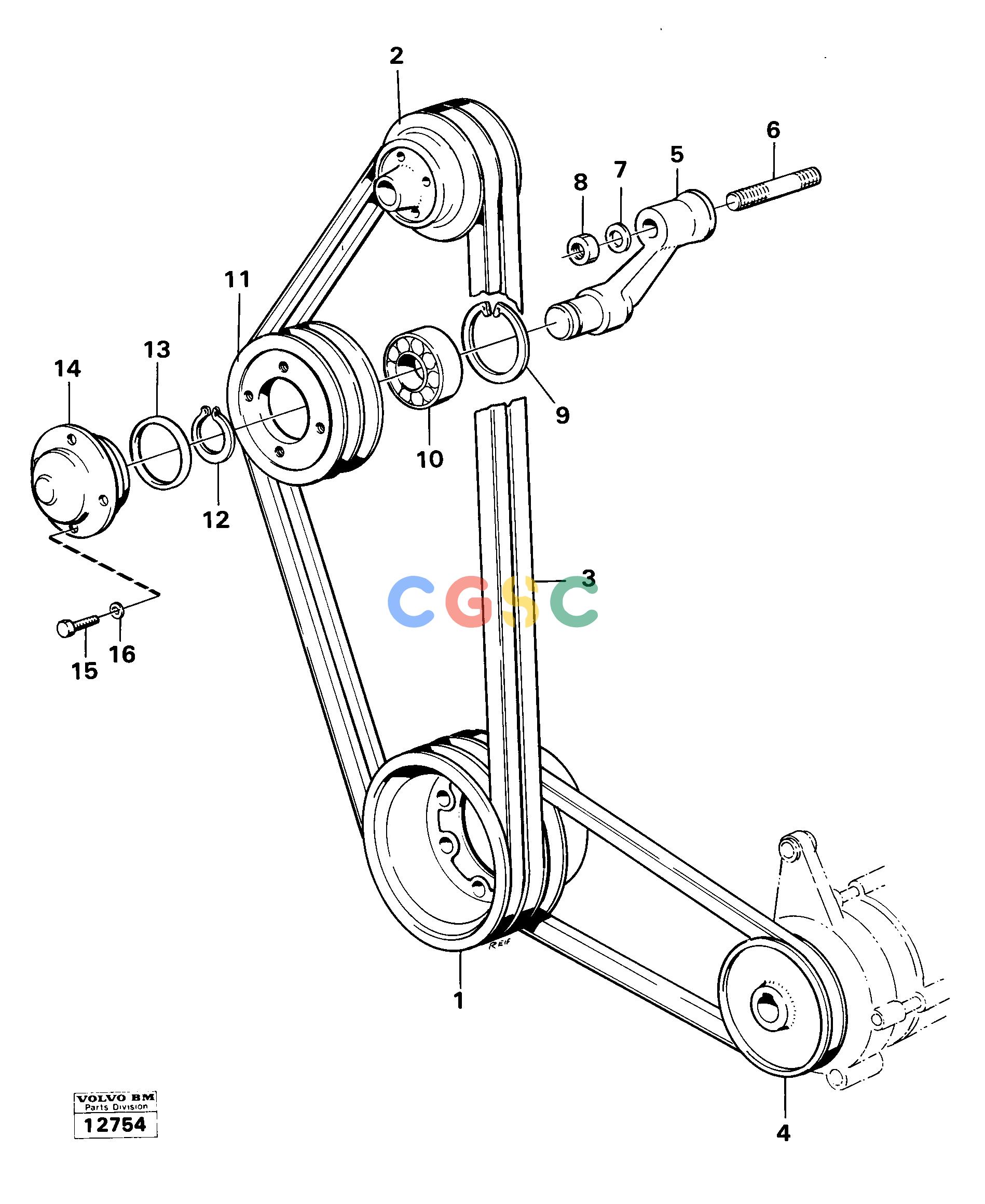

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4777162
|
[0001] |
Lever
|
|
| 6. |
VOE953579
|
[0001] |
Stud
|
|
| 7. |
VOE941911
|
[0001] |
Spring washer
|
|
| 8. |
VOE13955828
|
[0001] |
Nut
|
|
| 9. |
VOE914533
|
[0001] |
Retaining ring
|
|
| 1. |
|
[0001] |
Pulley
|
SEE GROUP 21
|
| 10. |
VOE181538
|
[0001] |
Ball bearing
|
|
| 11. |
VOE4773753
|
[0001] |
Pulley
|
|
| 12. |
VOE914462
|
[0001] |
Snap ring
|
|
| 13. |
VOE925091
|
[0001] |
O-ring
|
|
| 14. |
VOE4773754
|
[0001] |
Protecting casing
|
|
| 15. |
VOE955245
|
[0004] |
Hexagon screw
|
|
| 16. |
VOE941905
|
[0004] |
Spring washer
|
|
| 2. |
|
[0001] |
Pulley
|
|
| 3. |
VOE967191
|
[0001] |
V-belt
|
SER NO -1673
|
| |
VOE947962
|
[0001] |
Belt set
|
SER NO 1674-2600
|
| |
VOE966396
|
[0001] |
V-belt
|
SER NO 2601-
|
| 4. |
|
[0001] |
Pulley
|
SEE GROUP 31
|
![]()
