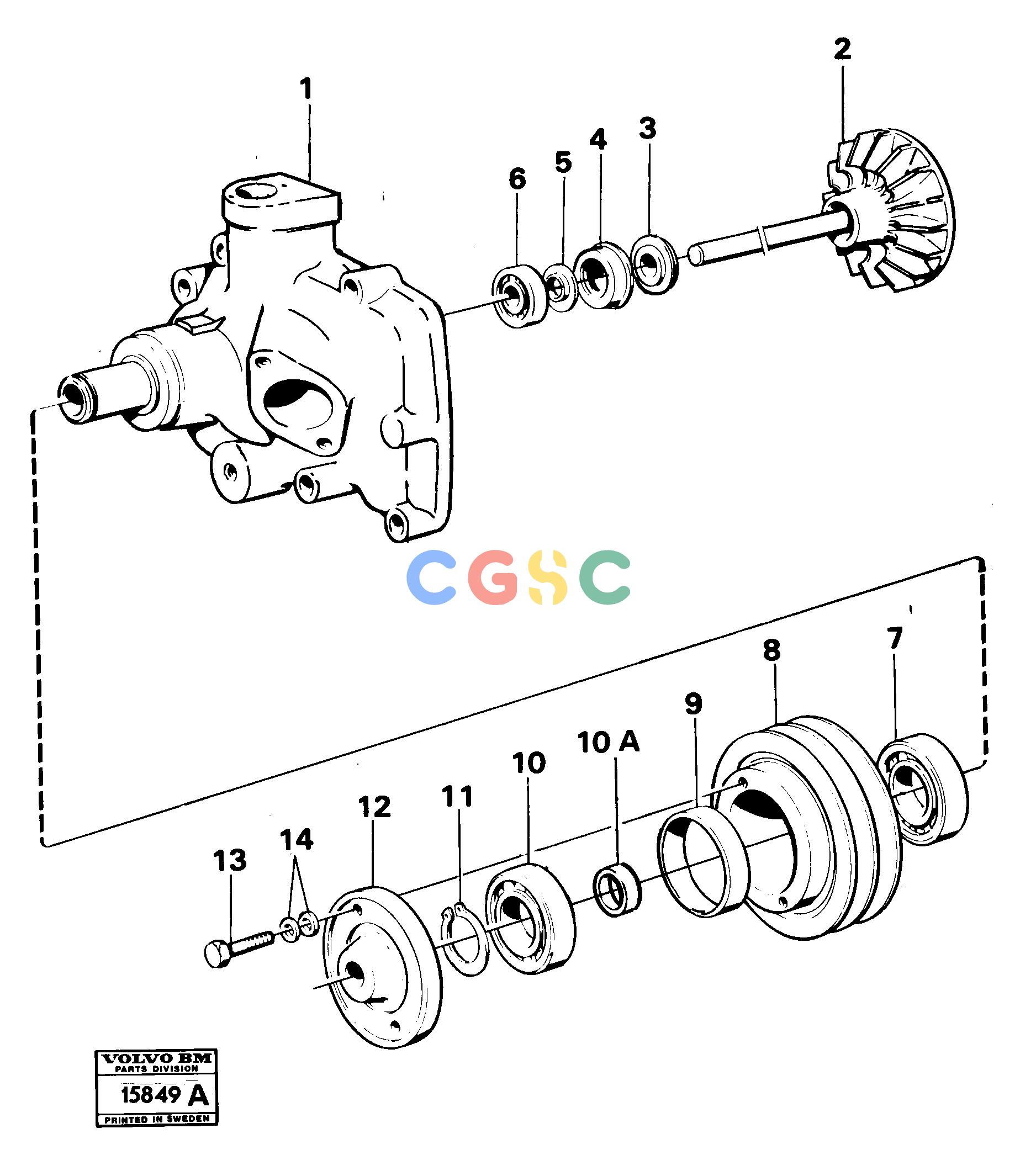

沃尔沃零件查询4500 Water pump4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE1676432
|
[0001] |
Sealing ring
|
|
| 5. |
VOE7070913
|
[0001] |
Deflector
|
|
| 6. |
VOE1660609
|
[0001] |
Ball bearing
|
|
| 7. |
VOE181538
|
[0001] |
Ball bearing
|
|
| 8. |
VOE4770808
|
[0001] |
Pulley
|
|
| |
VOE4771446
|
[0001] |
Water pump
|
|
| 9. |
VOE422202
|
[0001] |
Spacer sleeve
|
|
| 10. |
VOE1542870
|
[0001] |
Roller bearing
|
|
| 10A. |
VOE1542871
|
[0001] |
Spacer sleeve
|
|
| 11. |
VOE914462
|
[0001] |
Snap ring
|
|
| 12. |
VOE466286
|
[0001] |
Hub
|
|
| 13. |
VOE13940135
|
[0002] |
Screw
|
|
| 14. |
VOE13955894
|
[0002] |
Washer
|
|
| |
VOE6630846
|
[0001] |
Overhaul kit
|
|
| 1. |
|
[0001] |
Housing
|
|
| 2. |
VOE421148
|
[0001] |
Shaft
|
|
| 3. |
VOE1676432
|
[0001] |
Sealing ring
|
|
![]()
