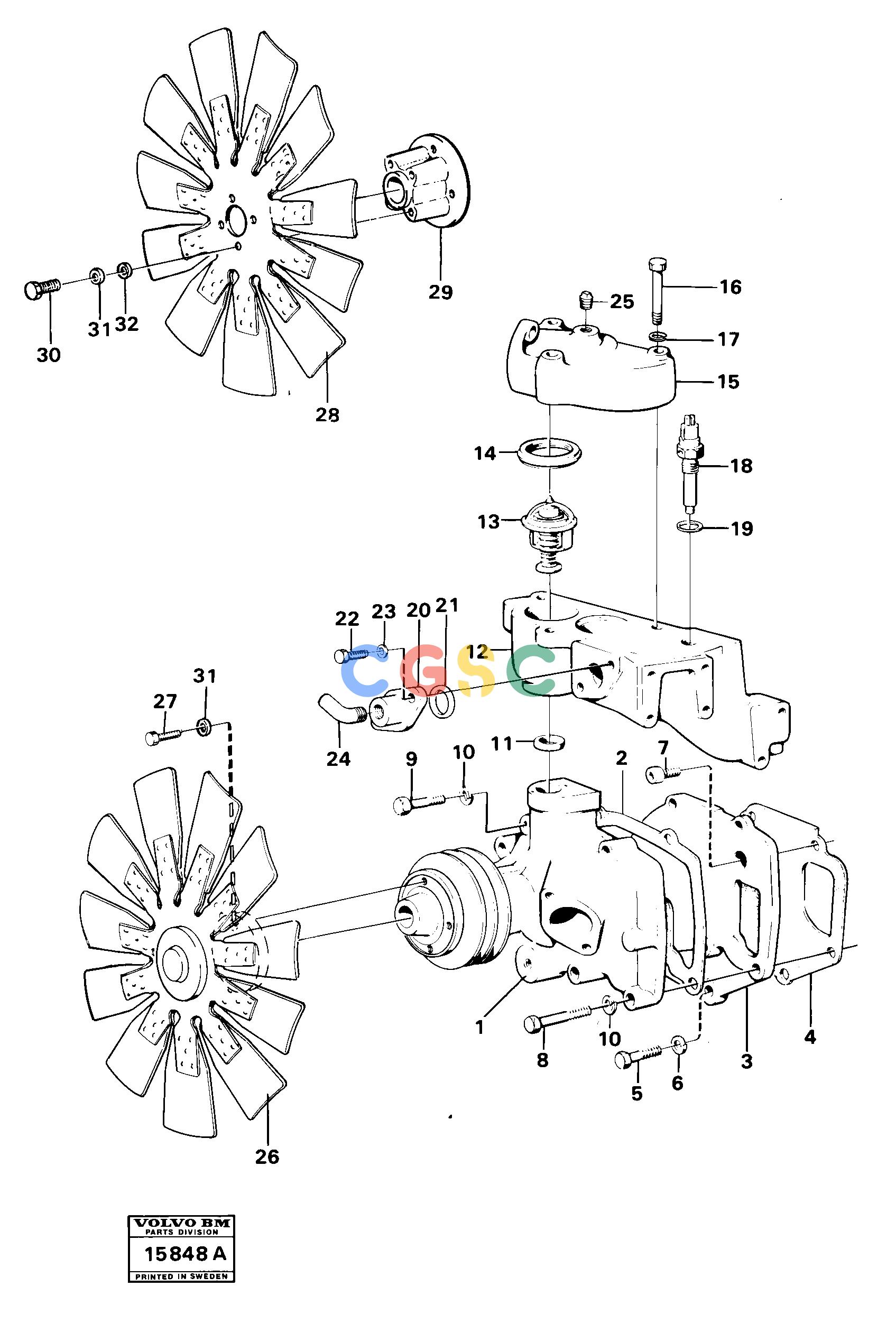

沃尔沃零件查询4500 Water pump with fitting parts4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13940159
|
[2] |
Screw
|
|
| 6. |
VOE13941907
|
[2] |
Washer
|
|
| 7. |
VOE956569
|
[2] |
Hex. socket screw
|
|
| 8. |
VOE13940136
|
[2] |
Screw
|
|
| 9. |
VOE940161
|
[5] |
Hexagon screw
|
|
| 1. |
|
[1] |
Water pump
|
|
| 10. |
VOE13941907
|
[7] |
Washer
|
|
| 11. |
VOE420162
|
[1] |
Sealing ring
|
|
| 12. |
VOE465052
|
[1] |
Thermostat housing
|
|
| 13. |
VOE1544097
|
[2] |
Thermostat
|
|
| 14. |
VOE416033
|
[2] |
Gasket
|
|
| 15. |
VOE465122
|
[1] |
Thermostat housing
|
|
| 16. |
VOE955540
|
[3] |
Hexagon screw
|
|
| 17. |
VOE13942336
|
[3] |
Spring washer
|
|
| 18. |
VOE4803227
|
[1] |
Sensor
|
PROD NO 33300,33307
|
| |
VOE4780328
|
[1] |
Sensor
|
PROD NO 33303,33308
|
| 19. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 2. |
VOE4770811
|
[1] |
Gasket
|
|
| 20. |
VOE4770109
|
[1] |
Flange
|
|
| |
VOE4771028
|
[1] |
Flange
|
TD 70 G
|
| 21. |
VOE469477
|
[1] |
Sealing ring
|
|
| 22. |
VOE13940135
|
[2] |
Screw
|
|
| 23. |
VOE13941907
|
[2] |
Washer
|
|
| 24. |
VOE961610
|
[1] |
Elbow nipple
|
|
| |
VOE13961607
|
[1] |
Nipple
|
TD 70 G
|
| 25. |
VOE479979
|
[1] |
Plug
|
|
| 26. |
VOE4774706
|
[1] |
Fan
|
SER NO -2275, 11 blades
|
| 27. |
VOE940186
|
[4] |
Hexagon screw
|
SER NO -2275
|
| |
VOE13963217
|
[4] |
Screw
|
|
| |
|
|
None
|
SER NO 2276-
|
| 28. |
VOE4774880
|
[1] |
Fan wheel
|
SER NO 2276-, 11 blades
|
| |
VOE4774609
|
[1] |
Fan
|
6 blades
|
| 3. |
VOE4770812
|
[1] |
Intmd Section
|
|
| 29. |
VOE4856412
|
[1] |
Fan hub
|
SER NO 2276-
|
| 30. |
VOE940132
|
[4] |
Hexagon screw
|
SER NO 2276-
|
| 31. |
VOE13955894
|
[8] |
Washer
|
SER NO 2276-
|
| 32. |
VOE120001
|
[4] |
Plain washer
|
SER NO 2276-
|
| 4. |
VOE4770810
|
[1] |
Gasket
|
|
![]()
