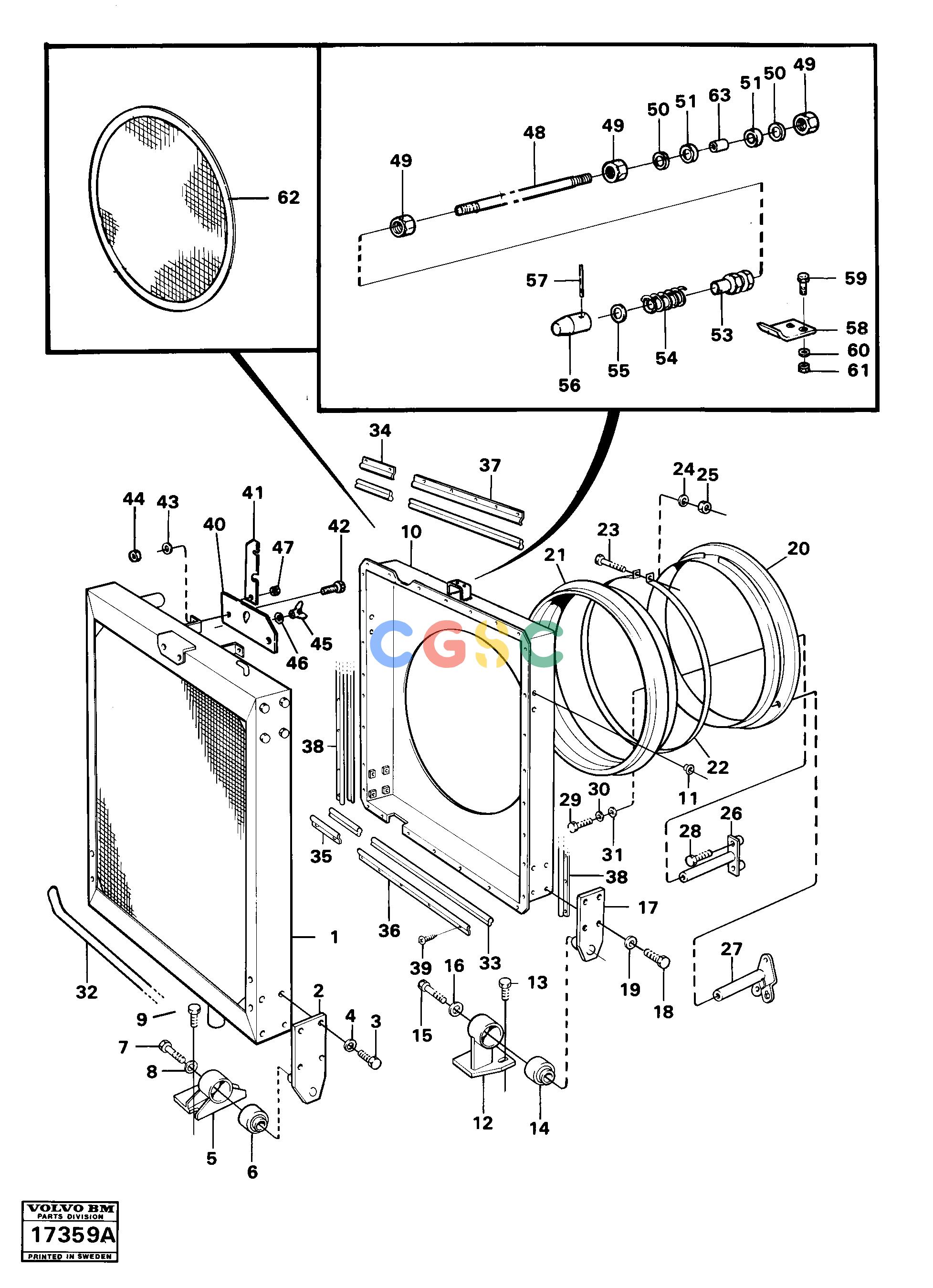

沃尔沃零件查询4500 Radiator with fitting parts Tillv Nr 2276-4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4771356
|
[0001] |
Bracket
|
H
|
| 48. |
VOE4854537
|
[0001] |
Link rod
|
|
| 49. |
VOE955785
|
[0003] |
Hexagon nut
|
|
| 50. |
VOE191940
|
[0002] |
Washer
|
|
| 51. |
VOE252203
|
[0002] |
Washer
|
|
| 52. |
VOE925059
|
[0001] |
O-ring
|
|
| 53. |
VOE4854356
|
[0001] |
Spring retainer
|
|
| 54. |
VOE4854353
|
[0001] |
Spring
|
|
| 55. |
VOE925751
|
[0001] |
Washer
|
|
| 56. |
VOE4854357
|
[0001] |
Pin
|
|
| 57. |
VOE13951966
|
[0001] |
Spring pin
|
|
| |
VOE4771342
|
[0001] |
Bracket
|
V
|
| 58. |
|
[0001] |
Bracket
|
|
| 59. |
VOE13955295
|
[0002] |
Screw
|
|
| 60. |
VOE13955894
|
[0002] |
Washer
|
|
| 61. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 62. |
VOE4854363
|
[0001] |
Net
|
|
| 63. |
VOE252202
|
[0001] |
Spacer tube
|
SER NO 2818 -
|
| 6. |
VOE4787237
|
[0002] |
Rubber bushing
|
|
| 7. |
VOE955363
|
[0002] |
Hexagon screw
|
|
| 8. |
VOE4776561
|
[0002] |
Washer
|
|
| 1. |
VOE4775026
|
|
Radiator
|
|
| 9. |
VOE13946817
|
[0004] |
Screw
|
|
| 10. |
VOE4856392
|
[0001] |
Fan shroud
|
|
| 11. |
VOE943582
|
[0006] |
Plug
|
|
| 12. |
VOE4771355
|
[0001] |
Bracket
|
H
|
| |
VOE4771346
|
[0001] |
Bracket
|
V
|
| 13. |
VOE13946817
|
[0004] |
Screw
|
|
| 14. |
VOE4787237
|
[0002] |
Rubber bushing
|
|
| 15. |
VOE955363
|
[0002] |
Hexagon screw
|
|
| 16. |
VOE4776561
|
[0002] |
Washer
|
|
| 17. |
VOE4771357
|
[0002] |
Anchorage
|
|
| 2. |
VOE4776697
|
[0002] |
Anchorage
|
|
| 18. |
VOE13970947
|
[0008] |
Hexagon screw
|
|
| 19. |
VOE941908
|
[0008] |
Spring washer
|
|
| 20. |
VOE4856354
|
[0001] |
Fan ring
|
|
| 21. |
VOE4771527
|
[0001] |
Sealing strip
|
|
| 22. |
VOE1544652
|
[0001] |
Tensioning band
|
|
| 23. |
VOE956088
|
[0001] |
Cross recessed screw
|
|
| 24. |
VOE13940090
|
[0001] |
Washer
|
|
| 25. |
VOE13963104
|
[0001] |
Lock nut
|
|
| 26. |
VOE4771086
|
[0001] |
Fan ring attachment
|
|
| 27. |
VOE4771388
|
[0001] |
Fan ring attachment
|
|
| 3. |
VOE13970947
|
[0010] |
Hexagon screw
|
|
| 28. |
VOE13955527
|
[0002] |
Screw
|
|
| 29. |
VOE955293
|
[0004] |
Hexagon screw
|
|
| 30. |
VOE13955894
|
[0004] |
Washer
|
|
| 31. |
VOE13941907
|
[0004] |
Washer
|
|
| 32. |
VOE4824275
|
[REQ] |
Profile
|
|
| 33. |
VOE4776743
|
[REQ] |
Sealing strip
|
|
| 34. |
VOE4771365
|
[0001] |
Rail
|
L=160
|
| 35. |
VOE4771402
|
[0001] |
Rail
|
L=160
|
| 36. |
VOE4771364
|
[0001] |
Rail
|
L=520
|
| 37. |
VOE4771401
|
[0001] |
Rail
|
L=520
|
| 4. |
VOE941908
|
[0010] |
Spring washer
|
|
| 38. |
VOE4771363
|
[0002] |
Rail
|
L=790
|
| 39. |
VOE13965171
|
[0030] |
Screw
|
|
| 40. |
VOE4856320
|
[0001] |
Retainer
|
|
| 41. |
VOE4854358
|
[0001] |
Lock brace
|
|
| 42. |
VOE13970947
|
[0002] |
Hexagon screw
|
|
| 43. |
VOE13960143
|
[0002] |
Washer
|
|
| 44. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 45. |
VOE192354
|
[0001] |
Wing nut
|
|
| 46. |
VOE13955894
|
[0001] |
Washer
|
|
| 47. |
VOE930827
|
[0001] |
Lock screw
|
|
![]()
