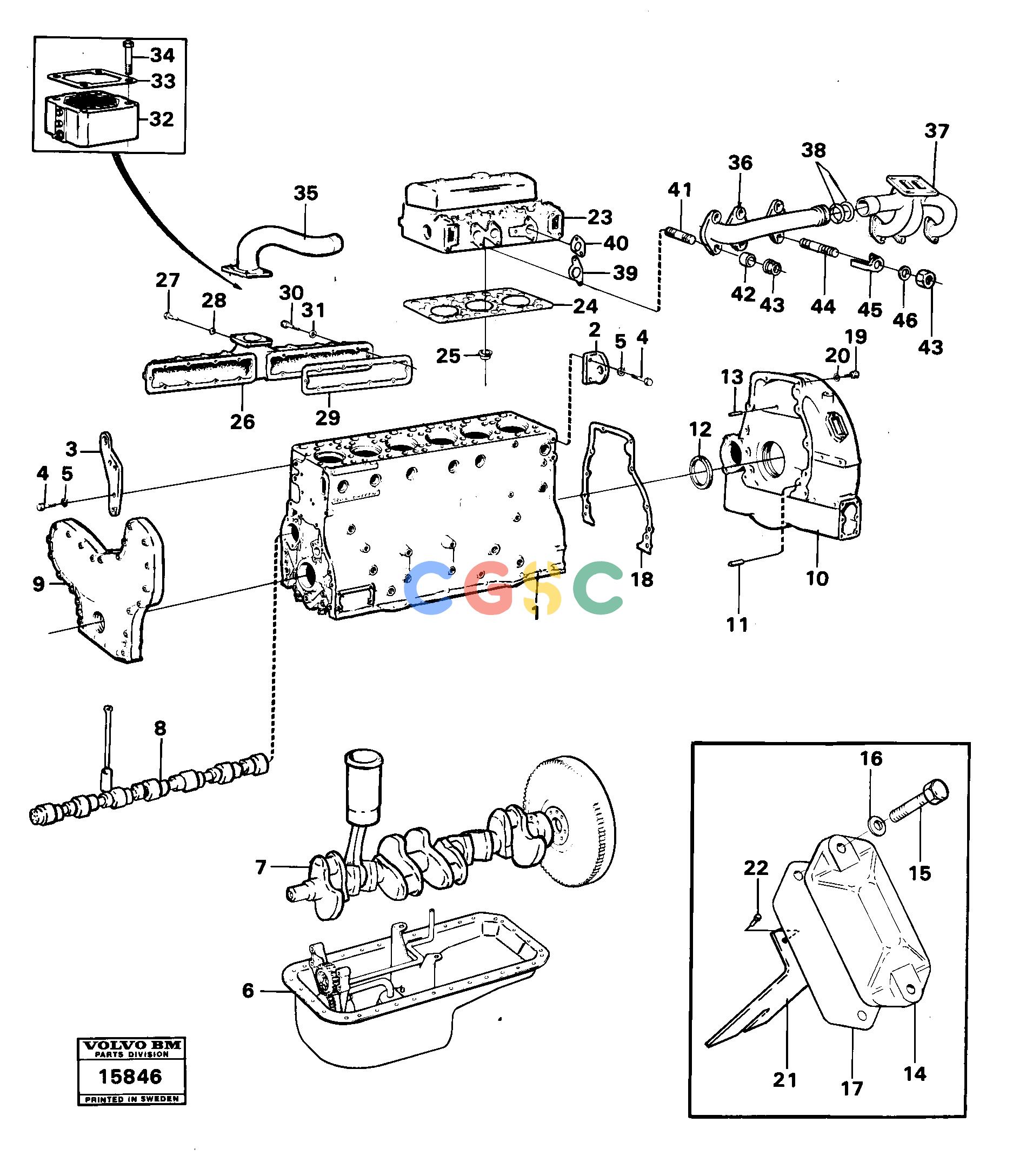

沃尔沃零件查询4500 Engine with fitting parts4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE940280
|
[0006] |
Spring washer
|
|
| 40. |
VOE421534
|
[0002] |
Gasket
|
|
| 41. |
VOE953490
|
[0012] |
Stud
|
|
| 42. |
VOE422217
|
[0012] |
Spacer sleeve
|
|
| 43. |
VOE942299
|
[0012] |
Flange nut
|
|
| 44. |
VOE953494
|
[0001] |
Stud
|
|
| 45. |
VOE421335
|
[0001] |
Clamping connector
|
|
| 46. |
VOE13940097
|
[0001] |
Washer
|
|
| |
VOE6630589
|
[0001] |
Equipment
|
TD 70 H
|
| |
VOE6630589
|
[0001] |
Equipment
|
TD 70 G
|
| |
VOE275450
|
[0001] |
Gasket kit
|
|
| |
VOE275527
|
[0001] |
Gasket kit
|
|
| 6. |
|
[0001] |
Lubricating system
|
|
| 7. |
|
[0001] |
Crankshaft
|
|
| 8. |
|
[0001] |
Camshaft
|
|
| 9. |
|
[0001] |
Timing gear casing
|
|
| 1. |
|
[0001] |
Cylinder block
|
|
| 10. |
VOE4771331
|
[0001] |
Flywheel housing
|
|
| 11. |
VOE191171
|
[0002] |
Pin
|
|
| 12. |
VOE477119
|
[0001] |
Crankshaft seal
|
|
| 13. |
VOE17229696
|
[0001] |
Pipe
|
|
| 14. |
VOE4772168
|
[0001] |
Cover
|
|
| 15. |
VOE955513
|
[0002] |
Hexagon screw
|
|
| 16. |
VOE13941906
|
[0002] |
Washer
|
|
| 17. |
VOE4804167
|
[0001] |
Gasket
|
|
| 18. |
VOE424620
|
[0001] |
Gasket
|
|
| 19. |
VOE955580
|
[0002] |
Hexagon screw
|
L= 57
|
| 2. |
|
[0002] |
Iron
|
|
| |
VOE955581
|
[0002] |
Hexagon screw
|
L= 64
|
| |
VOE955583
|
[0003] |
Hexagon screw
|
L= 76
|
| |
VOE959820
|
[0001] |
Hexagon screw
|
L= 140
|
| |
VOE959821
|
[0001] |
Hexagon screw
|
L= 152
|
| |
VOE955586
|
[0001] |
Hexagon screw
|
L= 95
|
| 20. |
VOE941911
|
[0010] |
Spring washer
|
|
| 21. |
VOE4771328
|
[0001] |
Setting indicator
|
|
| 22. |
VOE905654
|
[0002] |
Drive screw
|
|
| 23. |
|
[0001] |
Cylinder head
|
|
| 24. |
VOE275525
|
[0002] |
Gasket kit
|
|
| 3. |
|
[0001] |
Iron
|
|
| 25. |
VOE422413
|
[0002] |
Sealing ring
|
|
| |
VOE466421
|
|
Sealing ring
|
|
| |
VOE422414
|
|
Sealing ring
|
|
| 26. |
VOE466515
|
[0001] |
Inlet manifold
|
|
| 27. |
VOE940113
|
[0001] |
Hexagon screw
|
|
| 28. |
VOE957171
|
[0001] |
Gasket
|
|
| 29. |
VOE3829433
|
[0002] |
Gasket
|
|
| 30. |
VOE940161
|
[0006] |
Hexagon screw
|
L=45
|
| |
VOE13955527
|
[0002] |
Screw
|
L=57
|
| |
VOE955528
|
[0004] |
Hexagon screw
|
L=70
|
| 4. |
VOE955561
|
[0006] |
Hexagon screw
|
|
| |
VOE955530
|
[0004] |
Hexagon screw
|
L=73
|
| 31. |
VOE13955894
|
[0018] |
Washer
|
|
| 32. |
|
[0001] |
Starter element
|
|
| 33. |
VOE471682
|
[0002] |
Gasket
|
|
| 34. |
VOE955531
|
[0004] |
Hexagon screw
|
|
| 35. |
VOE466464
|
[0001] |
Tube
|
|
| 36. |
VOE421165
|
[0001] |
Exhaust pipe
|
|
| 37. |
VOE466458
|
[0001] |
Exhaust pipe
|
|
| 38. |
VOE411545
|
[0002] |
Sealing ring
|
|
| 39. |
VOE421534
|
[0004] |
Gasket
|
|
![]()
