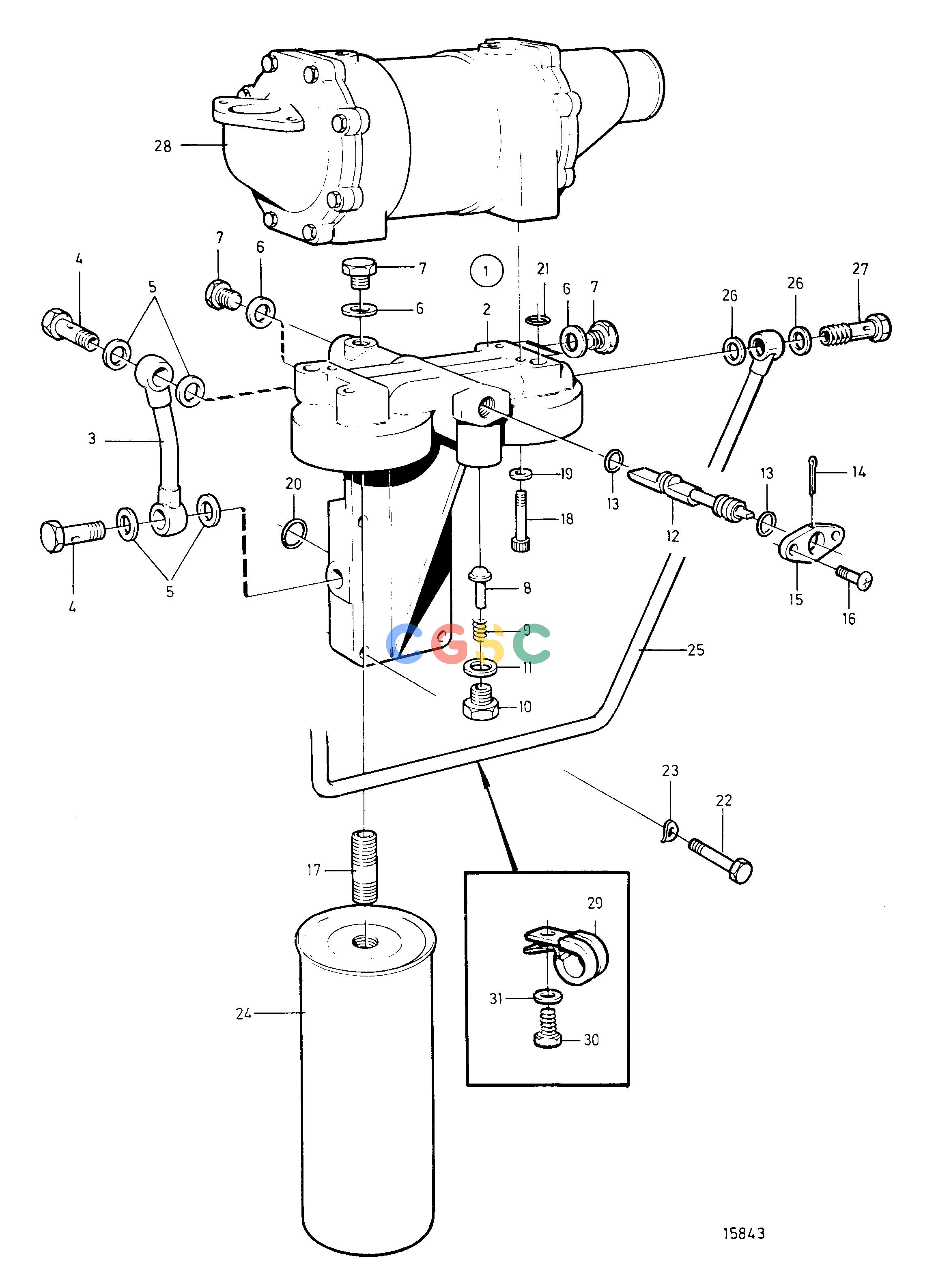

沃尔沃零件查询4500 Lubricating system td 70 h4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13949656
|
[0001] |
O-ring
|
|
| 6. |
VOE955531
|
[0002] |
Hexagon screw
|
|
| 7. |
VOE13941907
|
[0002] |
Washer
|
|
| 8. |
VOE466906
|
[0001] |
Fitting
|
|
| 9. |
VOE4770980
|
[0001] |
Tube
|
|
| 1. |
VOE466530
|
[0001] |
Oil pump
|
|
| 10. |
VOE949658
|
[0002] |
O-ring
|
|
| 11. |
VOE13940135
|
[0002] |
Screw
|
|
| 12. |
VOE955531
|
[0002] |
Hexagon screw
|
|
| 13. |
VOE13941907
|
[0004] |
Washer
|
|
| 14. |
VOE4770979
|
[0001] |
Baffle plate
|
|
| 15. |
VOE13955523
|
[0002] |
Screw
|
|
| 16. |
VOE13941907
|
[0002] |
Washer
|
|
| 17. |
VOE4770984
|
[0001] |
Tube
|
|
| 18. |
VOE4787980
|
[0001] |
O-ring
|
|
| 19. |
VOE4770982
|
[0001] |
Oil pan
|
|
| 2. |
VOE421404
|
[0001] |
Baffle
|
|
| 20. |
VOE4771225
|
[1] |
Strainer
|
|
| 21. |
VOE949317
|
[1] |
Snap ring
|
|
| 22. |
VOE4770983
|
[1] |
Plate
|
|
| 23. |
VOE118125
|
[1] |
Snap ring
|
|
| 24. |
VOE4770981
|
[1] |
Tube
|
|
| 25. |
VOE925068
|
[1] |
O-ring
|
|
| 26. |
VOE4746672
|
[1] |
Hollow screw
|
|
| 27. |
VOE13955997
|
[2] |
O-ring
|
|
| 28. |
VOE11030779
|
[1] |
Gasket
|
|
| 29. |
VOE942402
|
[36] |
Flange screw
|
|
| 3. |
VOE955538
|
[0004] |
Hexagon screw
|
|
| 30. |
VOE941102
|
[1] |
Oil dipstick
|
|
| 31. |
VOE421184
|
[1] |
Tube
|
|
| 32. |
VOE955082
|
[1] |
Cap plug
|
|
| 33. |
VOE4774051
|
[1] |
Bracket
|
|
| 34. |
VOE949658
|
[0002] |
O-ring
|
|
| 35. |
VOE13940115
|
[0001] |
Screw
|
L=25
|
| |
VOE955535
|
[0002] |
Hexagon screw
|
L=32
|
| 36. |
VOE13942336
|
[0003] |
Spring washer
|
|
| 37. |
VOE7423067
|
[0001] |
Nipple
|
|
| 38. |
VOE4785974
|
[0001] |
Oil filter
|
|
| 4. |
VOE4770985
|
[0001] |
Delivery pipe
|
|
| 39. |
|
[0001] |
Oil cooler
|
SEE GROUP 22
|
| 40. |
VOE4761859
|
[0001] |
Oil draining pipe
|
|
| 41. |
VOE13961191
|
[REQ] |
Hydraulic hose
|
L=270
|
| 42. |
VOE13943472
|
[0002] |
Hose clamp
|
|
| 43. |
VOE4761840
|
[0001] |
Anchorage
|
|
| 44. |
VOE926370
|
[0001] |
Plug
|
|
| 45. |
VOE958225
|
[0001] |
O-ring
|
|
| 46. |
VOE13955294
|
[0002] |
Screw
|
|
| 47. |
VOE13955894
|
[0002] |
Washer
|
|
![]()
