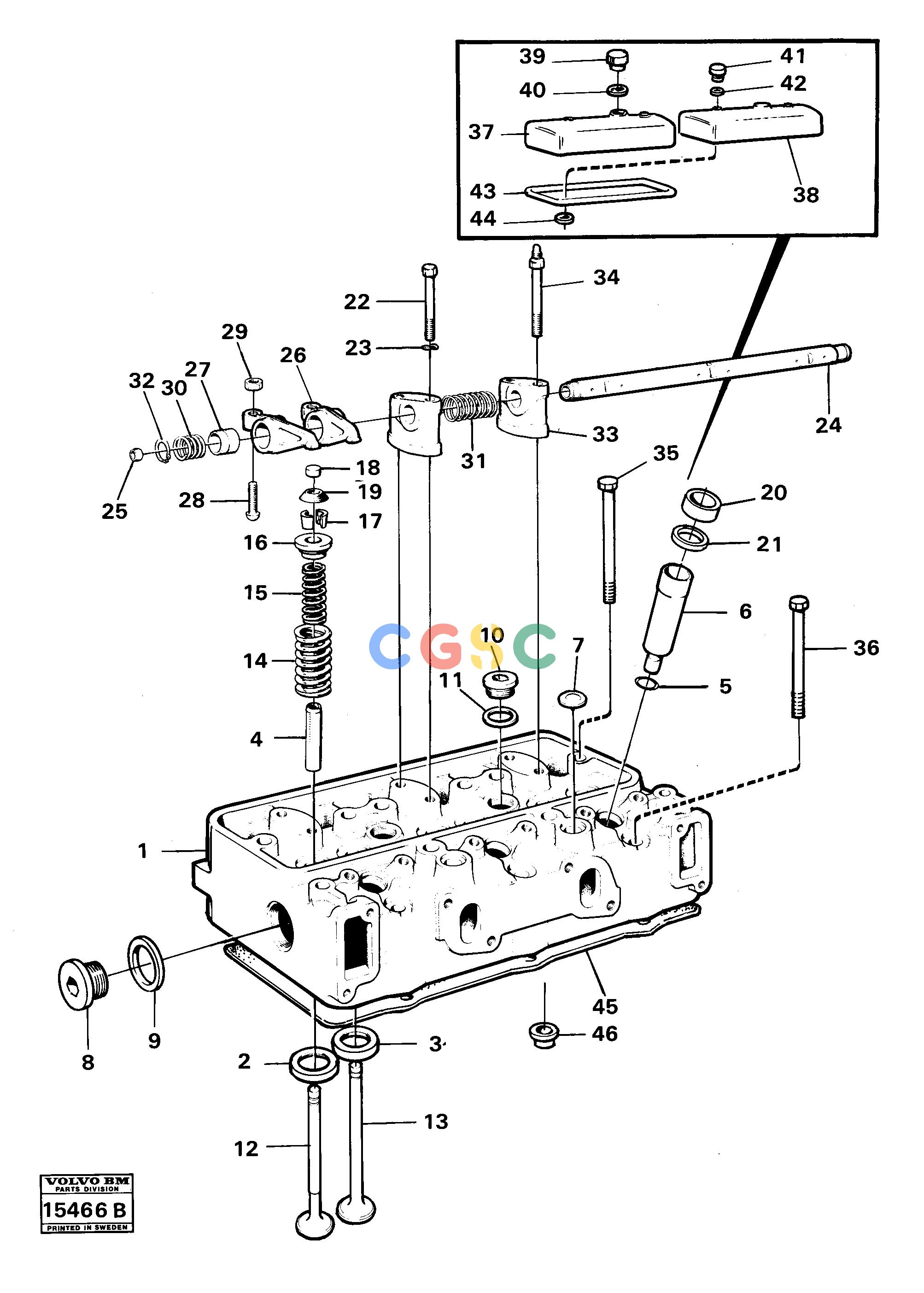

沃尔沃零件查询4500 Cylinder head4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE466307
|
[0006] |
Valve seat
|
0,20"ÖD
|
| |
VOE422414
|
[12] |
Sealing ring
|
|
| 4. |
VOE466386
|
[0012] |
Valve guide
|
|
| 5. |
VOE466922
|
[0006] |
Sealing ring
|
|
| 6. |
VOE477928
|
[0006] |
Socket
|
|
| 7. |
VOE477026
|
[0004] |
Expansion plug
|
|
| 1. |
VOE466831
|
[0002] |
Cylinder head
|
|
| 8. |
VOE467367
|
[0006] |
Plug
|
|
| 9. |
VOE1556907
|
[0004] |
Gasket
|
|
| 10. |
VOE466230
|
[0004] |
Plug
|
|
| 11. |
VOE420166
|
[0004] |
Gasket
|
|
| 12. |
VOE466379
|
[0006] |
Valve
|
|
| 13. |
VOE421680
|
[0006] |
Exhaust valve
|
|
| 14. |
VOE466384
|
[0012] |
Valve spring
|
Y
|
| 15. |
VOE466383
|
[0012] |
Valve spring
|
I
|
| 16. |
VOE466382
|
[0012] |
Washer
|
|
| 17. |
VOE468305
|
[0024] |
Valve sleeve
|
|
| 2. |
VOE421011
|
[0006] |
Valve seat
|
STD
|
| 18. |
VOE7417133
|
[0012] |
Valve Cap
|
|
| 19. |
VOE466932
|
[0012] |
Protecting Sleeve
|
|
| 20. |
VOE466420
|
[0006] |
Ring
|
|
| 21. |
VOE466405
|
[0006] |
Sealing ring
|
|
| 22. |
VOE955540
|
[0008] |
Hexagon screw
|
|
| 23. |
VOE13942336
|
[0008] |
Spring washer
|
|
| 24. |
VOE421019
|
[0002] |
Shaft
|
|
| 25. |
VOE946778
|
[0004] |
Cap plug
|
|
| 26. |
VOE422063
|
[0012] |
Rocker arm
|
|
| 27. |
VOE422066
|
[0012] |
Bushing
|
|
| |
VOE421316
|
[0006] |
Valve seat
|
0,20"ÖD
|
| 28. |
VOE422993
|
[0012] |
Bolt
|
|
| 29. |
VOE940175
|
[0012] |
Nut
|
|
| 30. |
VOE421172
|
[0004] |
Spring
|
|
| 31. |
VOE421173
|
[0004] |
Spring
|
|
| 32. |
VOE914459
|
[0004] |
Snap ring
|
|
| 33. |
VOE477384
|
[0006] |
Bearing Bracket
|
|
| 34. |
VOE420270
|
[0004] |
Screw
|
|
| 35. |
VOE421218
|
[0020] |
Screw
|
|
| 36. |
VOE466764
|
[0006] |
Screw
|
|
| 37. |
VOE421063
|
[0001] |
Casing
|
|
| 3. |
VOE466266
|
[0006] |
Valve seat
|
STD
|
| 38. |
VOE421065
|
[1] |
Casing
|
|
| 39. |
VOE421753
|
[1] |
Filler cap
|
|
| 40. |
VOE1275379
|
[1] |
Gasket
|
|
| 41. |
VOE424341
|
[4] |
Cap nut
|
|
| 42. |
VOE469846
|
[4] |
Sealing ring
|
|
| 43. |
VOE421066
|
[2] |
Gasket
|
|
| 44. |
VOE914449
|
[4] |
Retaining ring
|
|
| 45. |
VOE275525
|
[2] |
Gasket kit
|
|
| 46. |
VOE422413
|
[2] |
Sealing ring
|
|
| |
VOE466421
|
[16] |
Sealing ring
|
|
![]()
