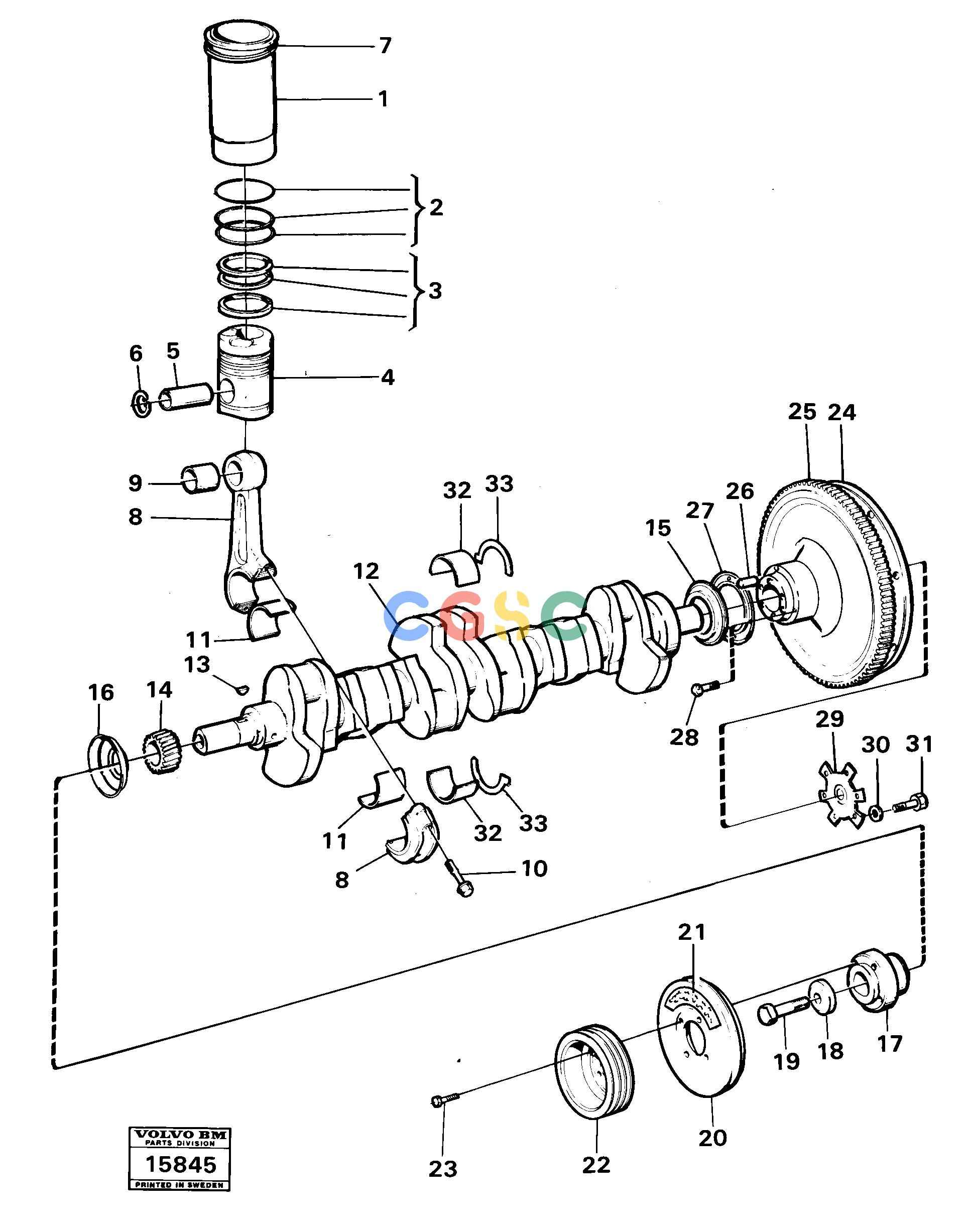

沃尔沃零件查询4500 Crankshaft and related parts4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE275375
|
[0006] |
Piston ring kit
|
|
| |
VOE276755
|
[0001] |
Thrust washer
|
0,1 ÖD
|
| |
VOE276756
|
[0001] |
Thrust washer
|
0,20 ÖD
|
| |
VOE276757
|
[0001] |
Thrust washer
|
0,3 ÖD
|
| 4. |
|
[0006] |
Piston
|
|
| 5. |
|
[0006] |
Piston pin
|
|
| 6. |
VOE914525
|
[0012] |
Retaining ring
|
|
| 7. |
VOE466878
|
[REQ] |
Shim
|
THICK = 0,12
|
| |
VOE275387
|
[0006] |
Cylinder liner kit
|
TD 70 H
|
| |
VOE466114
|
[REQ] |
Shim
|
THICK = 0,20
|
| |
VOE466183
|
[REQ] |
Shim
|
THICK = 0,30
|
| |
VOE466184
|
[REQ] |
Shim
|
THICK = 0,50
|
| 8. |
VOE466455
|
[0006] |
Connecting rod
|
|
| 9. |
VOE471364
|
[0006] |
Bushing
|
|
| 10. |
VOE420126
|
[0012] |
Screw
|
|
| 11. |
VOE270115
|
[0006] |
Big End Brg Kit
|
STD
|
| |
VOE270116
|
[0006] |
Big End Brg Kit
|
0,010"UD
|
| |
VOE270117
|
[0006] |
Big End Brg Kit
|
0,020"UD
|
| |
VOE270118
|
[0006] |
Big End Brg Kit
|
0,030"UD
|
| |
VOE275383
|
[0006] |
Cylinder liner kit
|
TD 70 G
|
| |
VOE270120
|
[0001] |
Big-end Bearing kit
|
0,050"UD,TD 70G
|
| 12. |
VOE471749
|
[0001] |
Crankshaft
|
|
| 13. |
VOE422253
|
[0001] |
Key
|
|
| 14. |
VOE421080
|
[0001] |
Drive Gear
|
|
| 15. |
VOE4770016
|
[0001] |
Oil Catcher
|
|
| 16. |
VOE420172
|
[0001] |
Oil deflector
|
|
| 17. |
VOE836304
|
[0001] |
Hub
|
|
| 18. |
VOE420124
|
[0001] |
Washer
|
|
| 19. |
VOE1545479
|
[0001] |
Screw
|
|
| 20. |
VOE471043
|
[0001] |
Vibration damper
|
TD 70 H
|
| 1. |
|
[0006] |
Cylinder liner
|
|
| |
VOE421515
|
[0001] |
Vibration damper
|
TD 70 G
|
| 21. |
VOE411434
|
[0001] |
Sign
|
|
| 22. |
VOE4770966
|
[0001] |
Strap
|
|
| 23. |
VOE955552
|
[0008] |
Hexagon screw
|
|
| 24. |
VOE4771330
|
[0001] |
Flywheel
|
|
| 25. |
VOE420314
|
[0001] |
Gear ring
|
|
| 26. |
VOE950677
|
[0001] |
Pin
|
|
| 27. |
VOE786589
|
[0001] |
Deflector
|
|
| 28. |
VOE905654
|
[0004] |
Drive screw
|
|
| 29. |
VOE786558
|
[0001] |
Lock washer
|
|
| 2. |
VOE271160
|
[0006] |
Sealing ring kit
|
|
| 30. |
VOE467773
|
[0006] |
Washer
|
|
| 31. |
VOE13948868
|
[0006] |
Screw
|
|
| 32. |
VOE270432
|
[0007] |
Main bearing kit
|
STD
|
| |
VOE270433
|
[0007] |
Main bearing kit
|
0,010"UD
|
| |
VOE270434
|
[0007] |
Main bearing kit
|
0,020"UD
|
| |
VOE270435
|
[0007] |
Main bearing kit
|
0,030"UD
|
| |
VOE270436
|
[0007] |
Main bearing kit
|
0,040"UD
|
| |
VOE270437
|
[0007] |
Main bearing kit
|
3,050"UD
|
| 33. |
VOE276754
|
[0001] |
Thrust washer
|
STD
|
![]()
