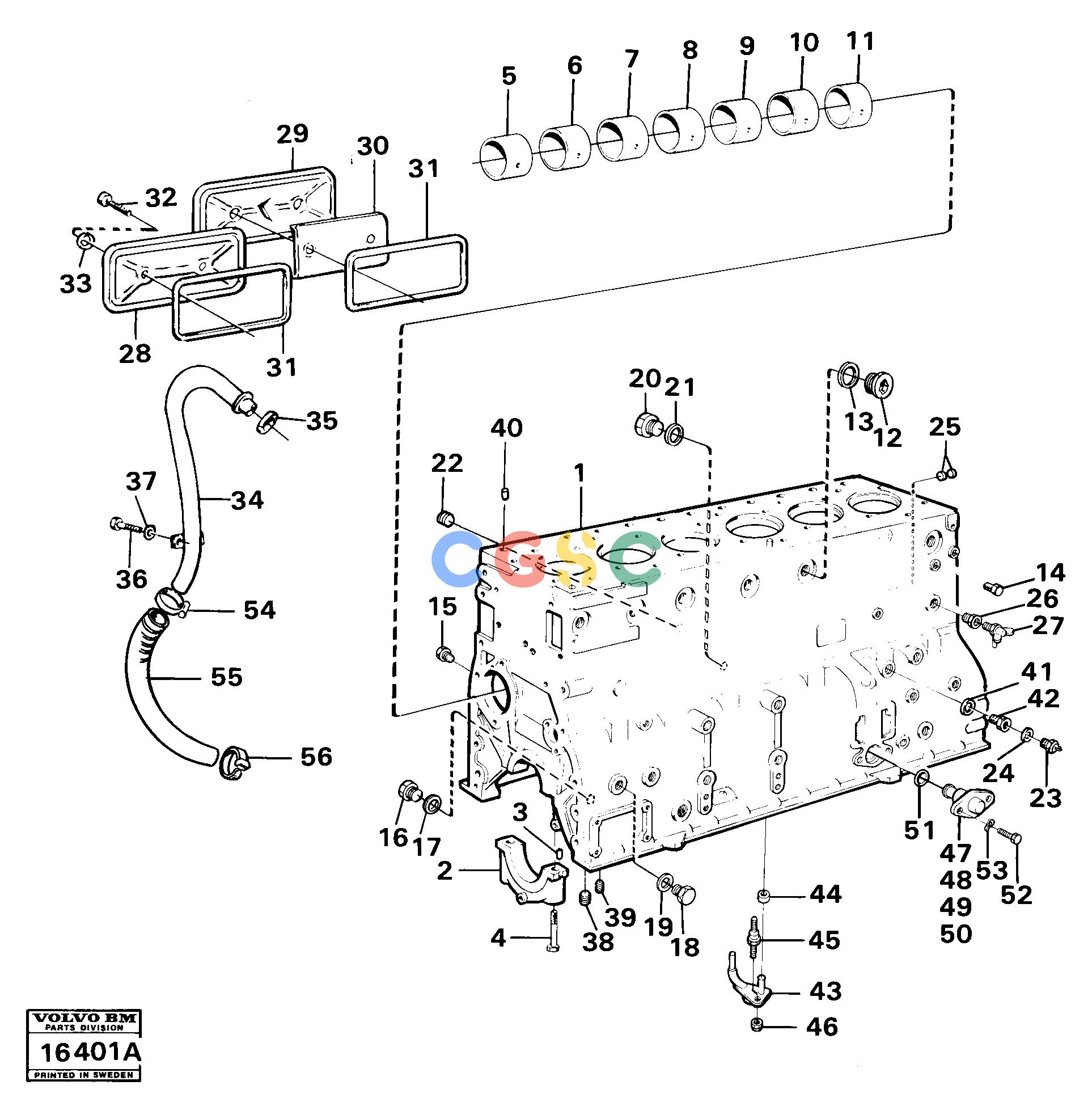

沃尔沃零件查询4500 Cylinder block4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE786724
|
[0001] |
Bushing
|
|
| 49. |
VOE466446
|
[0001] |
Compression spring
|
TD 70 G
|
| 50. |
VOE11987568
|
[0001] |
Flange
|
TD 70 G
|
| 51. |
VOE949659
|
[0001] |
O-ring
|
TD 70 G
|
| 52. |
VOE955513
|
[0002] |
Hexagon screw
|
TD 70 G
|
| 53. |
VOE13941906
|
[0002] |
Washer
|
TD 70 G
|
| 54. |
VOE927661
|
[0001] |
Rubber hose
|
TD 70 G
|
| 55. |
VOE943475
|
[0001] |
Hose clamp
|
TD 70 G
|
| 56. |
|
|
Strip
|
INGÅR EJ/NOT INCLUDED
|
| 6. |
VOE422077
|
[0001] |
Bushing
|
|
| 7. |
VOE422078
|
[0001] |
Bushing
|
|
| 8. |
VOE11000014
|
[0001] |
Bushing
|
|
| 9. |
VOE422080
|
[0001] |
Bushing
|
|
| 1. |
VOE466830
|
[0001] |
Cylinder block
|
TD 70 H
|
| 10. |
VOE422081
|
[0001] |
Bushing
|
|
| 11. |
VOE422082
|
[0001] |
Bushing
|
|
| 12. |
VOE467367
|
[0006] |
Plug
|
|
| 13. |
VOE1556907
|
[0006] |
Gasket
|
|
| 14. |
VOE13942734
|
[0001] |
Plug
|
|
| |
VOE466700
|
[0001] |
Cylinder block
|
TD 70 G
|
| 15. |
VOE422369
|
[0007] |
Plug
|
|
| 16. |
VOE941959
|
[0001] |
Plug
|
|
| 17. |
VOE13947625
|
[0001] |
Plane gasket
|
|
| 18. |
VOE7192114
|
[0001] |
Plug
|
|
| 19. |
VOE13947627
|
[0001] |
Plane gasket
|
|
| 2. |
|
[0007] |
Cap
|
|
| 20. |
VOE7016318
|
[0001] |
Plug
|
|
| 21. |
VOE13947281
|
[0001] |
Gasket
|
|
| 22. |
VOE13942734
|
[0001] |
Plug
|
|
| |
VOE952075
|
[0001] |
Plug
|
TD 70 G
|
| 23. |
VOE1606877
|
[0001] |
Switch
|
|
| 24. |
VOE13947281
|
[0001] |
Gasket
|
|
| 25. |
VOE955082
|
[0004] |
Cap plug
|
|
| 26. |
VOE479954
|
[0001] |
Nipple
|
|
| 27. |
VOE13947893
|
[0001] |
Tap
|
|
| 28. |
VOE420120
|
[0001] |
Inspection lid
|
|
| 29. |
VOE420121
|
[0001] |
Hatch
|
|
| 3. |
VOE422426
|
[0001] |
Pin
|
|
| 30. |
VOE421120
|
[0001] |
Hatch
|
|
| 31. |
VOE20591544
|
[0002] |
Gasket
|
|
| 32. |
VOE422541
|
[0004] |
Screw
|
|
| 33. |
VOE469846
|
[0004] |
Sealing ring
|
|
| 34. |
VOE471747
|
[0001] |
Tube
|
|
| 35. |
VOE421158
|
[0001] |
Sealing ring
|
|
| 36. |
VOE13955523
|
[0001] |
Screw
|
|
| 37. |
VOE13941907
|
[0001] |
Washer
|
|
| 38. |
VOE955079
|
[0001] |
Plug
|
TD 70 G
|
| 39. |
VOE952075
|
[0002] |
Plug
|
TD 70 G
|
| 4. |
VOE421153
|
[0014] |
Screw
|
|
| 40. |
VOE13949020
|
[0004] |
Pin
|
TD 70 G
|
| 41. |
|
|
No spare part
|
|
| 42. |
|
|
No spare part
|
|
| 43. |
VOE420628
|
[0006] |
Nozzle
|
TD 70 G
|
| 44. |
VOE466874
|
[0006] |
Sealing ring
|
TD 70 G
|
| 45. |
VOE466870
|
[0006] |
Stud
|
TD 70 G
|
| 46. |
VOE945467
|
[0006] |
Lock nut
|
TD 70 G
|
| |
VOE466450
|
[0001] |
Piston
|
TD 70 G
|
| 47. |
|
[0001] |
Housing
|
TD 70 G
|
| 48. |
|
[0001] |
Valve
|
TD 70 G
|
![]()
