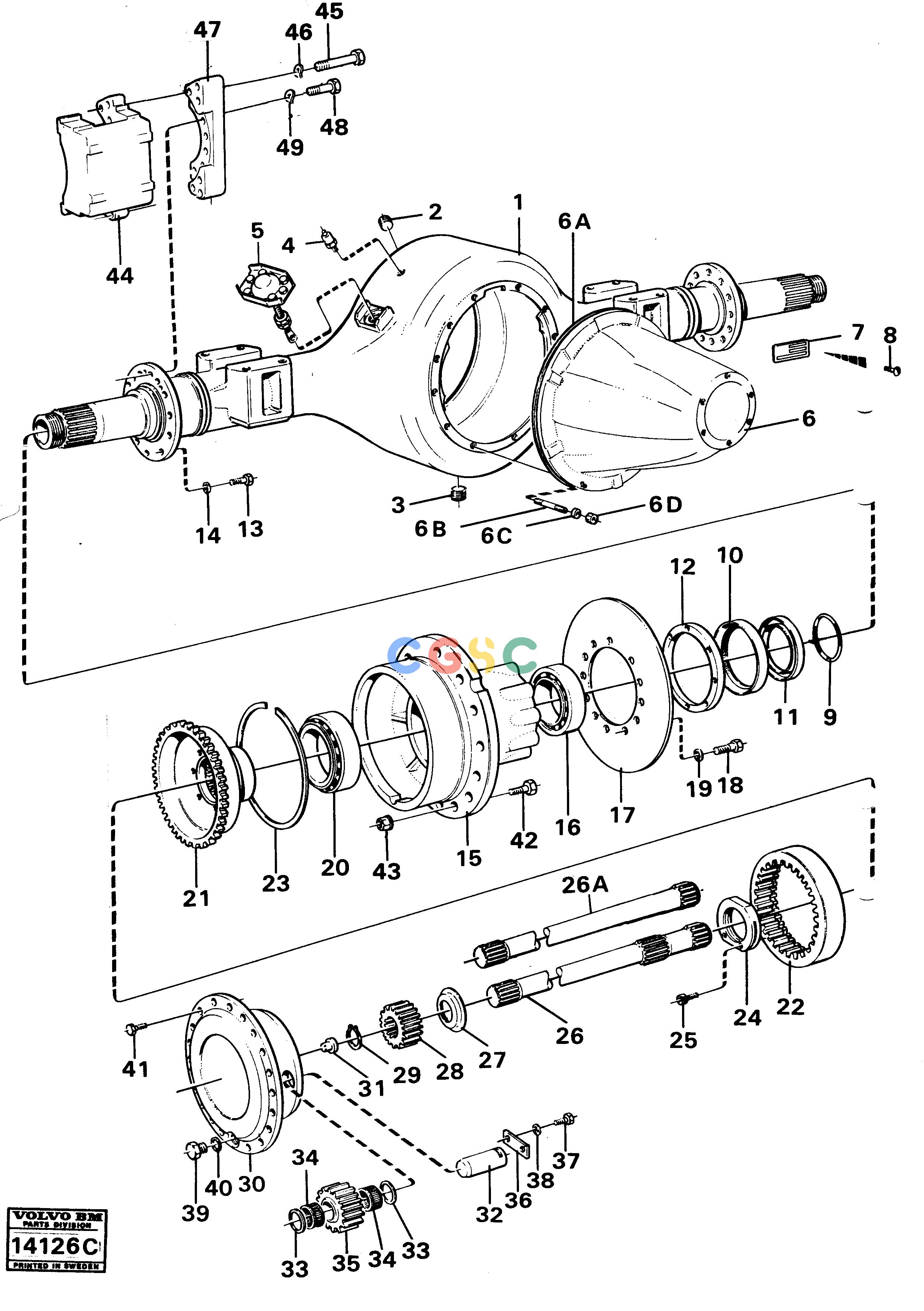

沃尔沃零件查询4400 Drive axle, front prod no 235154400 NoneNone23515Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
|
Differential lock
|
|
| 39. |
VOE11034156
|
[4] |
Plug
|
|
| 40. |
VOE13947628
|
[0004] |
Plane gasket
|
AX-2308
|
| |
VOE958228
|
[0004] |
O-ring
|
AX 2309-
|
| 41. |
VOE13977564
|
[0048] |
Hexagon screw
|
|
| 42. |
VOE15107871
|
[0024] |
Wheel stud
|
|
| 43. |
VOE4717139
|
[0024] |
Nut
|
|
| 44. |
|
[0002] |
Disc brake
|
SEE GROUP 51
|
| 45. |
VOE963335
|
[0012] |
Hexagon screw
|
|
| 46. |
VOE941914
|
[0012] |
Spring washer
|
|
| 47. |
VOE4717600
|
[0002] |
Anchorage
|
|
| 48. |
VOE949544
|
[0016] |
Hex. socket screw
|
|
| 6. |
VOE11000073
|
[0001] |
Final drive
|
|
| 49. |
VOE941912
|
[0016] |
Spring washer
|
|
| |
|
|
None
|
|
| 1. |
VOE4717609
|
[0001] |
Axle casing
|
|
| 6A. |
VOE7309663
|
[0001] |
Gasket
|
|
| 6B. |
VOE953370
|
[0008] |
Stud
|
L=60
|
| |
VOE953373
|
[0004] |
Stud
|
L=70
|
| 6C. |
VOE941912
|
[0012] |
Spring washer
|
|
| 6D. |
VOE955829
|
[0012] |
Nut
|
|
| 7. |
|
[0001] |
Sign
|
|
| 8. |
VOE950891
|
[0004] |
Drive screw
|
|
| 9. |
VOE13960193
|
[0002] |
O-ring
|
|
| 2. |
VOE968215
|
[0001] |
Plug blank
|
|
| 10. |
VOE11994222
|
[0002] |
Sealing ring
|
|
| 11. |
VOE4717342
|
[0002] |
Spacer ring
|
|
| 12. |
VOE4717440
|
[0002] |
Flange
|
|
| 13. |
VOE955364
|
[0004] |
Hexagon screw
|
|
| 14. |
VOE941912
|
[0004] |
Spring washer
|
|
| 15. |
VOE4717777
|
[0002] |
Hub
|
|
| 16. |
|
[0002] |
Roller bearing
|
|
| |
VOE183610
|
[0002] |
Roller bearing
|
|
| |
VOE183610
|
[0002] |
Roller bearing
|
|
| 17. |
VOE4717690
|
[0002] |
Brake disc
|
|
| 18. |
VOE13947373
|
[0024] |
Screw
|
|
| 19. |
VOE941912
|
[0024] |
Spring washer
|
|
| 3. |
VOE13968216
|
[0001] |
Plug
|
|
| 20. |
|
[0002] |
Roller bearing
|
|
| |
VOE17488188
|
[0002] |
Bearing
|
|
| |
VOE11034842
|
[0002] |
Cup
|
|
| 21. |
VOE4717018
|
[0002] |
Gear ring holder
|
|
| 22. |
VOE17246155
|
[0002] |
Gear ring
|
|
| 23. |
VOE4717022
|
[0002] |
Snap ring
|
|
| 24. |
VOE4717822
|
[0002] |
Nut
|
AX-2308
|
| |
VOE4717822
|
[0002] |
Nut
|
AX 2309-
|
| 25. |
VOE13947566
|
[0004] |
Screw
|
|
| 26. |
VOE4870479
|
[0001] |
Axle shaft
|
V.DIFF.SPÄRR/DIFF.LOCK
|
| 26A. |
VOE4870460
|
[1] |
Axle shaft
|
H
|
| 27. |
VOE4717106
|
[2] |
Wear washer
|
|
| 28. |
VOE11103090
|
[2] |
Sun gear
|
|
| 4. |
VOE384555
|
[0001] |
Air vent valve
|
|
| 29. |
VOE4717033
|
[2] |
Lock ring
|
|
| 30. |
VOE4717994
|
[2] |
Planet carrier
|
|
| 31. |
VOE4717045
|
[2] |
Wearing Pin
|
|
| 32. |
VOE4717024
|
[6] |
Shaft
|
|
| 33. |
VOE4717027
|
[12] |
Wear washer
|
|
| 34. |
VOE4785923
|
[6] |
Needle bearing
|
|
| 35. |
VOE4717988
|
[6] |
Planet gear
|
|
| 36. |
VOE4717555
|
[6] |
Striker plate
|
|
| 37. |
VOE13955295
|
[12] |
Screw
|
|
| 38. |
VOE13941907
|
[12] |
Washer
|
|
![]()
