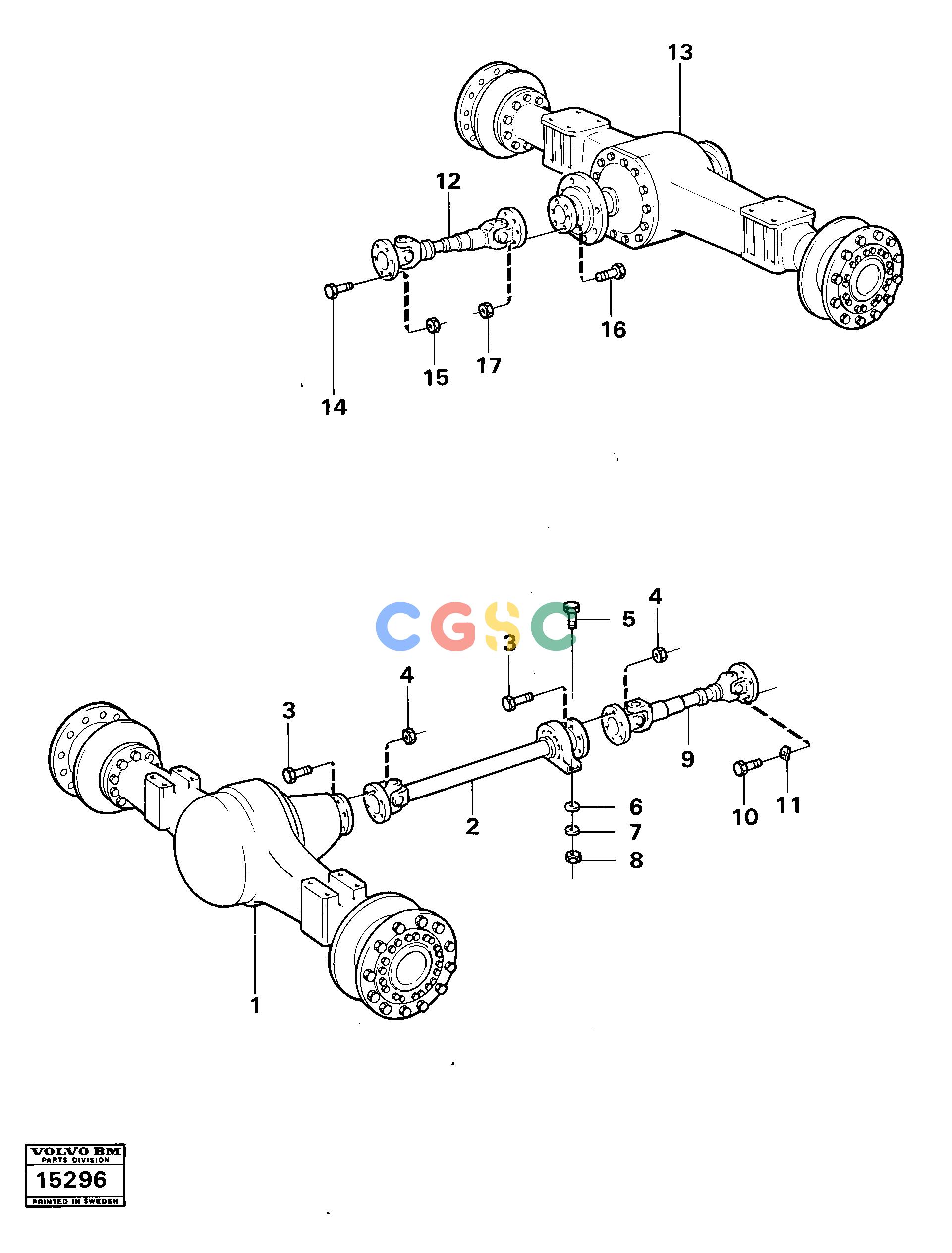

沃尔沃零件查询4400 Propeller shafts with fitting parts4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Front shaft
|
SEE GROUP 44
|
| 2. |
VOE4785735
|
[1] |
Propeller shaft
|
SER NO -3707
|
| |
|
|
None
|
|
| |
VOE4880851
|
[1] |
Propeller shaft
|
SER NO 3708-
|
| |
|
|
None
|
|
| 3. |
VOE13945644
|
[16] |
Screw
|
|
| 4. |
VOE945676
|
[16] |
Lock nut
|
|
| 5. |
VOE970976
|
[2] |
Hexagon screw
|
|
| |
|
|
None
|
SER NO -3707
|
| |
|
[2] |
Screw
|
SER NO 3708-
|
| |
|
|
None
|
|
| 6. |
VOE60110353
|
[2] |
Washer
|
SER NO -3707
|
| |
VOE955899
|
[2] |
Plain washer
|
SER NO 3708-
|
| 7. |
VOE4854494
|
[2] |
Spacer
|
SER NO 3708-
|
| 8. |
VOE13971090
|
[2] |
Lock nut
|
|
| |
|
|
None
|
SER NO -3707
|
| |
|
[2] |
Lock nut
|
SER NO 3708-
|
| |
|
|
None
|
|
| 9. |
VOE4854541
|
[1] |
Propeller shaft
|
|
| |
|
|
None
|
|
| 10. |
VOE13945636
|
[8] |
Screw
|
|
| 11. |
VOE13942336
|
[8] |
Spring washer
|
|
| 12. |
VOE4854541
|
[1] |
Propeller shaft
|
|
| |
|
|
None
|
|
| 13. |
|
[1] |
Rear shaft
|
SEE GROUP 44
|
| 14. |
VOE13945644
|
[8] |
Screw
|
|
| 15. |
VOE945676
|
[8] |
Lock nut
|
|
| 16. |
VOE13945644
|
[0008] |
Screw
|
|
| 17. |
VOE945676
|
[0008] |
Lock nut
|
|
![]()
