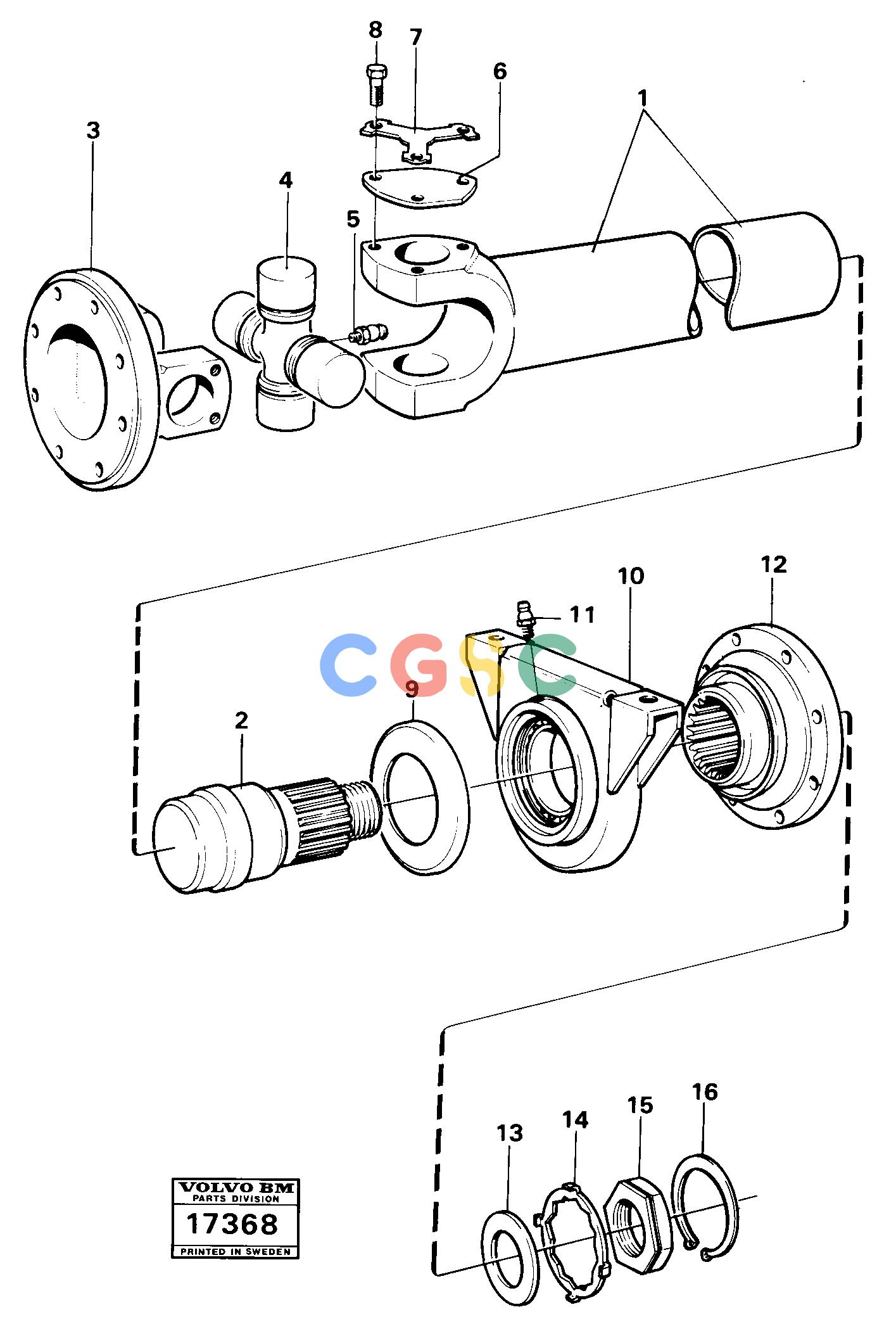

沃尔沃零件查询4400 Power shaft tillv nr 3708-4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE232458
|
[1] |
Spider
|
|
| 5. |
VOE926866
|
[1] |
Lubricating nipple
|
|
| 6. |
VOE7231266
|
[4] |
Washer
|
|
| 7. |
|
[4] |
Lock washer
|
|
| 8. |
VOE13949733
|
[12] |
Hexagon screw
|
|
| |
VOE4880851
|
[1] |
Propeller shaft
|
|
| 9. |
VOE263012
|
[1] |
Dust cover
|
|
| 10. |
VOE6212735
|
[1] |
Support bearing
|
|
| 11. |
|
[2] |
Lubricating nipple
|
|
| 12. |
VOE382992
|
[1] |
Companion flange
|
|
| 13. |
VOE13948269
|
[1] |
Washer
|
|
| 14. |
VOE382779
|
[1] |
Lock washer
|
ALT
|
| |
VOE383992
|
[1] |
Lock washer
|
ALT
|
| 15. |
VOE13948320
|
[1] |
Nut
|
|
| 16. |
VOE914480
|
[1] |
Snap ring
|
|
| 1. |
|
[1] |
Shaft
|
|
| 2. |
|
[1] |
Pin
|
|
| 3. |
VOE6212407
|
[1] |
Companion flange
|
|
![]()
