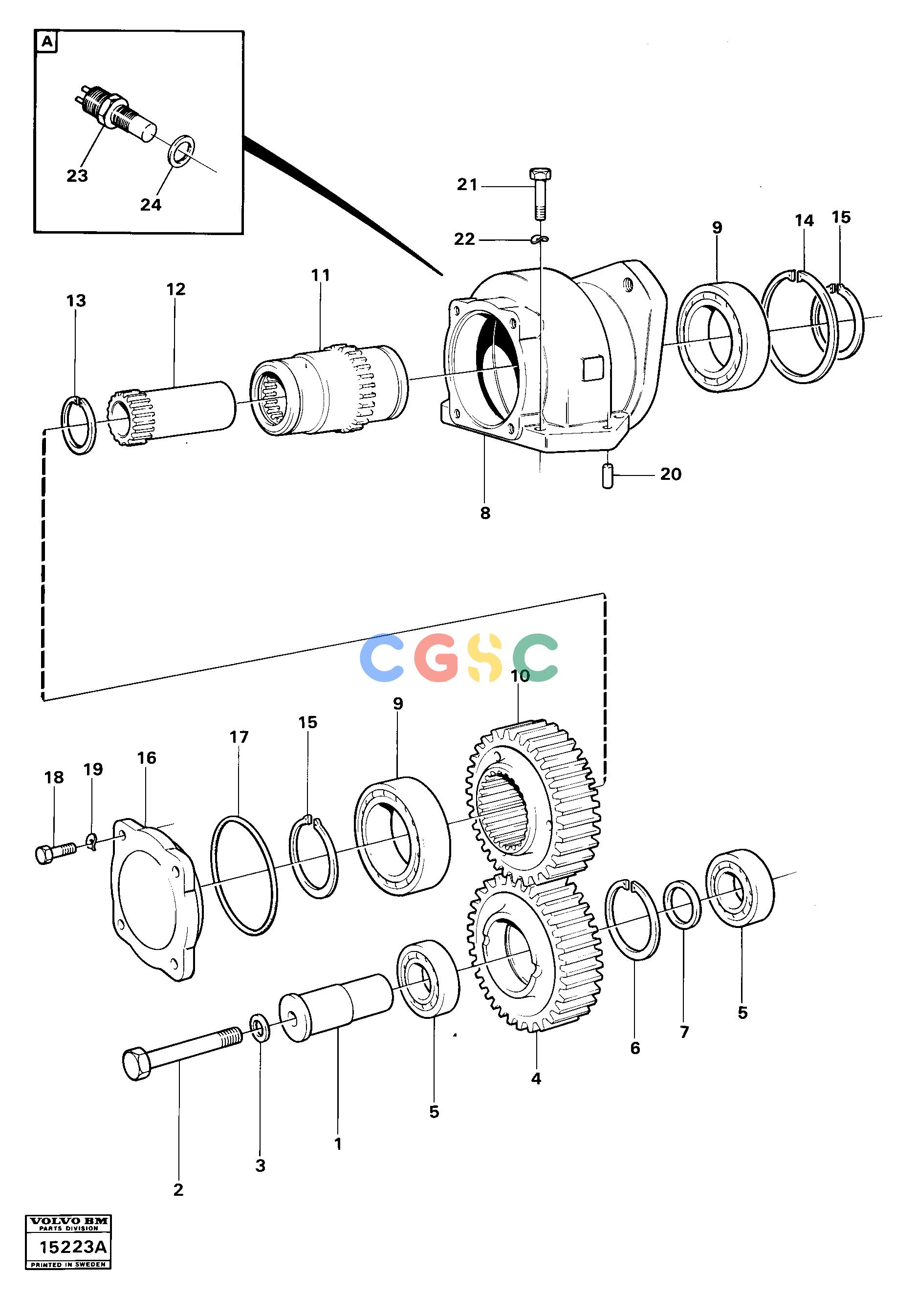

沃尔沃零件查询4400 Charging oil-pump drive ht -45254400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE7011014
|
[0002] |
Ball bearing
|
HT-2390
|
| |
VOE4881081
|
[0002] |
Roller bearing
|
HT 2391-
|
| 6. |
VOE914537
|
[0001] |
Retaining ring
|
|
| 7. |
VOE4871523
|
[0001] |
Spacer ring
|
|
| 8. |
VOE4871135
|
[0001] |
Housing
|
|
| |
VOE13960632
|
[0001] |
Plug
|
|
| |
|
|
None
|
SER NO 2619-
|
| |
VOE957181
|
[0001] |
Gasket
|
SER NO 2619-
|
| 9. |
RM59790642
|
[0002] |
Bearing
|
|
| 1. |
VOE4718040
|
[0001] |
Shaft
|
|
| 10. |
VOE11036697
|
[0001] |
Gear
|
|
| 11. |
VOE4871043
|
[0001] |
Shaft
|
|
| 12. |
VOE4871042
|
[0001] |
Sleeve
|
|
| 13. |
VOE914528
|
[0001] |
Retaining ring
|
|
| 14. |
VOE914550
|
[0001] |
Retaining ring
|
|
| 15. |
VOE914480
|
[0002] |
Snap ring
|
|
| 16. |
VOE4719795
|
[0001] |
Cap
|
|
| 17. |
VOE925261
|
[0001] |
O-ring
|
|
| 18. |
VOE13970947
|
[0004] |
Hexagon screw
|
|
| 19. |
VOE941908
|
[0004] |
Spring washer
|
|
| 2. |
VOE11036417
|
[0001] |
Screw
|
|
| 20. |
VOE950586
|
[0002] |
Pin
|
|
| 21. |
VOE945295
|
[0004] |
Hex. socket screw
|
|
| 22. |
VOE941908
|
[0004] |
Spring washer
|
HT - 3028
|
| |
VOE13942336
|
[0004] |
Spring washer
|
HT 3029 -
|
| 23. |
VOE4780941
|
[0001] |
Induction sensor
|
|
| 24. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 3. |
VOE941908
|
[0001] |
Spring washer
|
|
| 4. |
VOE11036699
|
[0001] |
Gear
|
|
![]()
