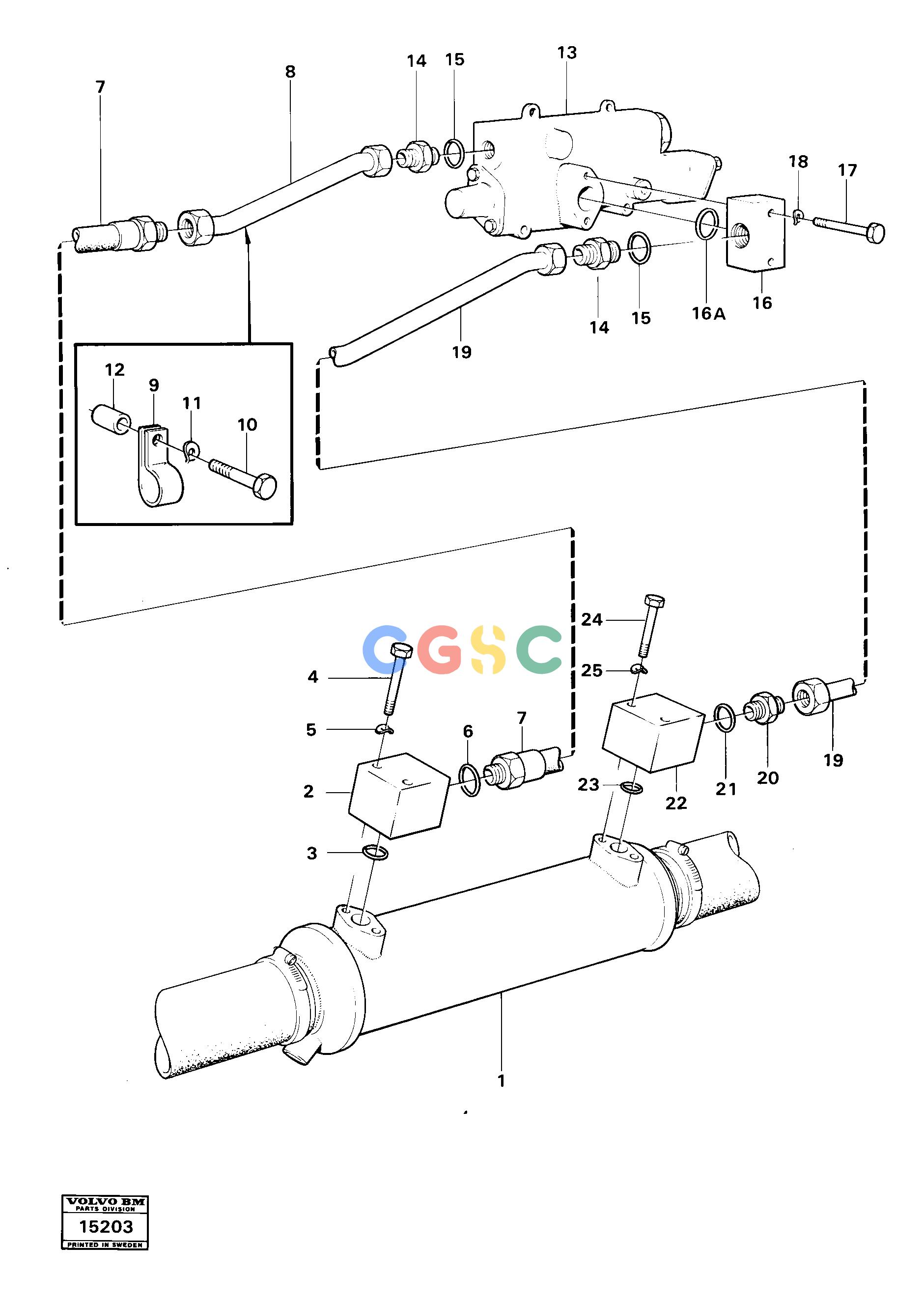

沃尔沃零件查询4400 Cooling system4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE941908
|
[0002] |
Spring washer
|
|
| 6. |
VOE958228
|
[0001] |
O-ring
|
|
| 7. |
VOE928019
|
[0001] |
Hose assembly
|
|
| 8. |
VOE4763578
|
[0001] |
Tube
|
|
| 9. |
VOE7190156
|
[0001] |
Clamp
|
|
| 1. |
|
[0001] |
Oil cooler
|
SEE GROUP 22
|
| 10. |
VOE13970956
|
[0001] |
Hexagon screw
|
|
| 11. |
VOE941908
|
[0001] |
Spring washer
|
|
| 12. |
VOE912139
|
[0001] |
Spacer ring
|
|
| 13. |
|
[0001] |
Valve
|
|
| 14. |
VOE957035
|
[0002] |
Nipple
|
|
| 15. |
VOE958228
|
[0002] |
O-ring
|
|
| 16. |
VOE4927411
|
[0001] |
Hose connection
|
|
| 16A. |
VOE13949327
|
[0001] |
O-ring
|
|
| 17. |
VOE13970954
|
[0002] |
Hexagon screw
|
|
| 18. |
VOE941908
|
[0002] |
Spring washer
|
|
| 19. |
VOE4763582
|
[0001] |
Tube
|
|
| 2. |
VOE4850010
|
[0001] |
Hose connection
|
|
| 20. |
VOE957035
|
[0001] |
Nipple
|
|
| 21. |
VOE958228
|
[0001] |
O-ring
|
|
| 22. |
VOE4850010
|
[0001] |
Hose connection
|
|
| 23. |
VOE955992
|
[0001] |
O-ring
|
|
| 24. |
VOE13970954
|
[0002] |
Hexagon screw
|
|
| 25. |
VOE941908
|
[0002] |
Spring washer
|
|
| 3. |
VOE955992
|
[0001] |
O-ring
|
|
| 4. |
VOE13970954
|
[0002] |
Hexagon screw
|
|
![]()
