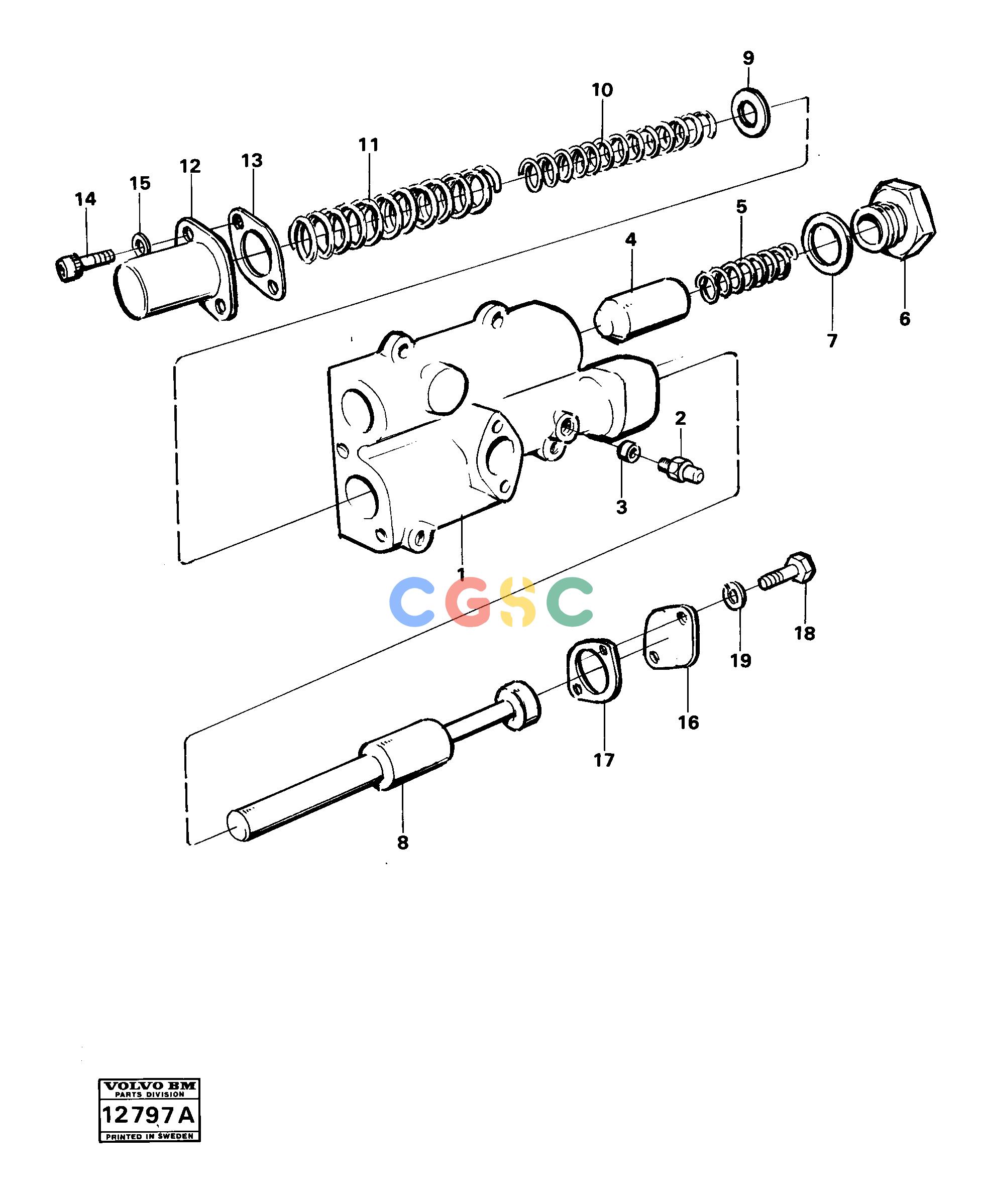

沃尔沃零件查询4400 Valve section44004718064-4719914NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 4. |
VOE4718071
|
[1] |
Piston
|
|
| 5. |
VOE4718066
|
[1] |
Spring
|
|
| 6. |
VOE914394
|
[1] |
Plug
|
|
| 7. |
VOE13947629
|
[1] |
Plane gasket
|
|
| |
VOE4718064
|
[0001] |
Valve
|
ERS AV 4720827
|
| 8. |
VOE4718072
|
[1] |
Slide
|
|
| |
VOE4719916
|
|
Slide
|
|
| 9. |
VOE4720557
|
[1] |
Washer
|
|
| 10. |
VOE4718068
|
[1] |
Spring
|
|
| 11. |
VOE4718067
|
[1] |
Spring
|
|
| |
VOE4719915
|
|
Spring
|
|
| 12. |
VOE4718060
|
[1] |
Cover
|
|
| 13. |
VOE11036043
|
[1] |
Gasket
|
|
| 14. |
VOE942001
|
[0002] |
Hex. socket screw
|
|
| 15. |
VOE13941906
|
[0002] |
Washer
|
|
| |
VOE4719914
|
|
Valve housing
|
ERS AV 4871779
|
| 16. |
VOE4718062
|
[0001] |
Cover
|
|
| 17. |
VOE11036049
|
[0001] |
Gasket
|
|
| 18. |
VOE955270
|
[0002] |
Hexagon screw
|
|
| 19. |
VOE13941906
|
[0002] |
Washer
|
|
| |
VOE4871779
|
|
Valve
|
|
| |
VOE4720827
|
|
Valve
|
|
| |
|
[0001] |
Valve block
|
|
| 2. |
VOE930032
|
[1] |
Testing nipple
|
|
![]()
