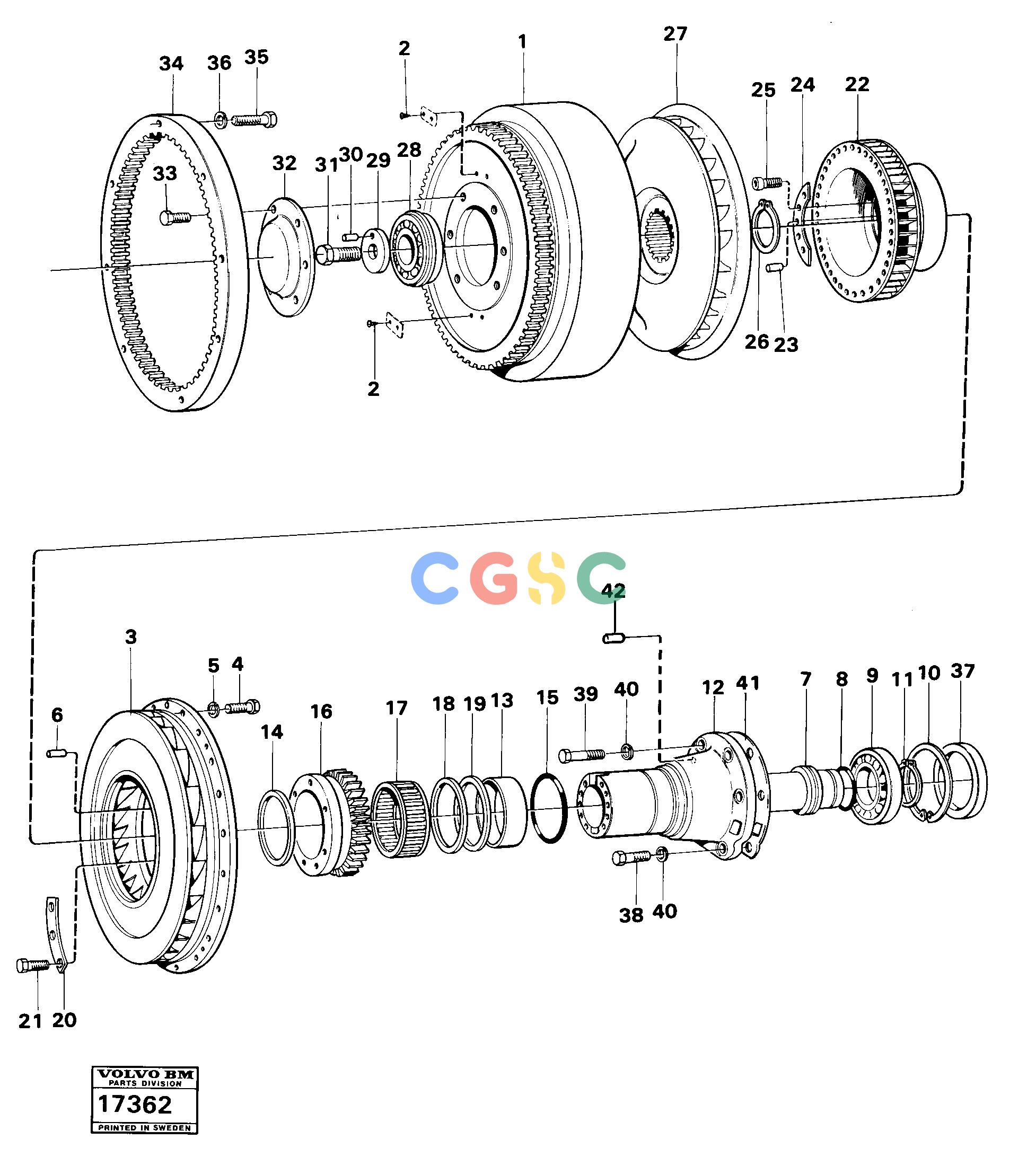

沃尔沃零件查询4400 Torque converter44004786061-4881086NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE6646875
|
[0001] |
Pump Rotor
|
|
| 41. |
VOE4871909
|
[0001] |
Gasket
|
|
| 42. |
VOE950588
|
|
Pin
|
|
| |
VOE11991839
|
|
Pump Rotor
|
|
| 4. |
VOE13940135
|
[0024] |
Screw
|
|
| 5. |
VOE13955894
|
[0024] |
Washer
|
|
| 6. |
VOE6617757
|
[0004] |
Pin
|
|
| |
VOE4786061
|
[0001] |
Converter
|
HT -3779
|
| 7. |
VOE6212533
|
[0001] |
Shaft
|
|
| |
VOE6212533
|
|
Shaft
|
|
| 8. |
VOE6645487
|
[0001] |
Sealing ring
|
|
| 9. |
VOE7011017
|
[0001] |
Ball bearing
|
|
| 10. |
VOE6617761
|
[0001] |
Snap ring
|
|
| 11. |
VOE6645488
|
[0001] |
Lock ring
|
|
| 12. |
VOE6212812
|
[0001] |
Retainer
|
|
| 13. |
VOE6638187
|
[0001] |
Bearing race
|
|
| 14. |
VOE6638189
|
[0001] |
Snap ring
|
|
| 15. |
VOE6638188
|
[0001] |
Sealing ring
|
|
| |
VOE4881086
|
|
Torque converter
|
HT 3780-
|
| 16. |
VOE11998826
|
[0001] |
Gear
|
|
| 17. |
VOE6638184
|
[0001] |
Needle bearing
|
|
| 18. |
VOE6638192
|
[0001] |
Bearing race
|
|
| 19. |
VOE6638190
|
[0001] |
Snap ring
|
|
| 20. |
VOE6617753
|
[0002] |
Support plate
|
|
| 21. |
VOE955658
|
[0008] |
Hexagon screw
|
|
| |
VOE955658
|
|
Hexagon screw
|
|
| 22. |
VOE6617742
|
[0001] |
Wheel
|
|
| 23. |
VOE6617763
|
[0004] |
Pin
|
|
| 24. |
VOE6617755
|
[0002] |
Support plate
|
|
| 1. |
VOE6640197
|
[0001] |
Housing
|
|
| 25. |
VOE6212724
|
[0006] |
Screw
|
|
| |
VOE6212724
|
|
Screw
|
|
| 26. |
VOE6617760
|
[0001] |
Snap ring
|
|
| 27. |
VOE6646657
|
[0001] |
Wheel
|
|
| 28. |
VOE183756
|
[0001] |
Ball bearing
|
|
| 29. |
VOE6617749
|
[0001] |
Clp Arm Plate
|
|
| 30. |
VOE6617756
|
[0001] |
Pin
|
|
| 31. |
VOE955709
|
[0001] |
Hexagon screw
|
|
| |
VOE955707
|
|
Hexagon screw
|
|
| 32. |
VOE6210466
|
[0001] |
Cap
|
|
| 2. |
|
[0004] |
Bolt
|
|
| |
VOE6212723
|
|
Cover
|
|
| 33. |
VOE955534
|
[0006] |
Hexagon screw
|
|
| |
VOE13940133
|
|
Screw
|
|
| 34. |
VOE6646873
|
[0001] |
Gear ring
|
|
| 35. |
VOE13940162
|
[0008] |
Screw
|
|
| 36. |
VOE13942336
|
[0008] |
Spring washer
|
|
| 37. |
VOE739441
|
[0001] |
Guide ring
|
|
| 38. |
VOE60113094
|
[0003] |
Flange screw
|
|
| 39. |
VOE4720046
|
[0002] |
Screw
|
|
| 40. |
VOE13942336
|
[0005] |
Spring washer
|
|
![]()
