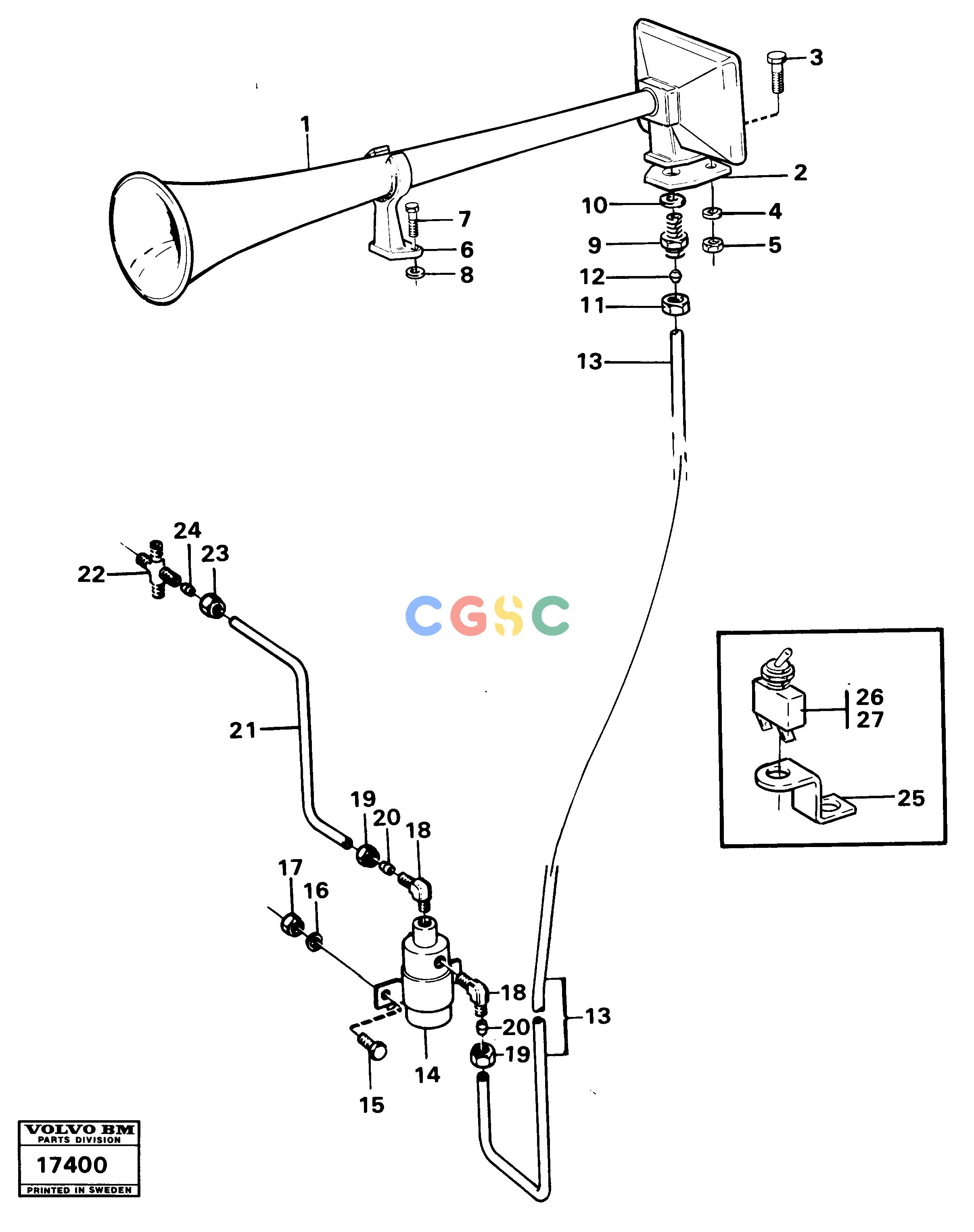

沃尔沃零件查询4400 Compressed air horn 997344400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE946035
|
[0002] |
Lock nut
|
|
| 6. |
|
[0001] |
Anchorage
|
|
| 7. |
VOE958244
|
[0002] |
Cross recessed screw
|
|
| 8. |
VOE955892
|
[0002] |
Plain washer
|
|
| 9. |
VOE13949064
|
[0001] |
Fitting
|
|
| 1. |
VOE1587249
|
[0001] |
Horn
|
|
| 10. |
VOE7018666
|
[0001] |
Gasket
|
|
| 11. |
VOE954356
|
[0001] |
Fitting nut
|
|
| 12. |
VOE944965
|
[0001] |
Ferrule
|
|
| 13. |
VOE6225917
|
[REQ] |
Plastic pipe
|
L=1800
|
| 14. |
VOE1584894
|
[0001] |
Solenoid valve
|
|
| |
VOE1587251
|
[0001] |
Stay
|
|
| 15. |
VOE956094
|
[0002] |
Cross recessed screw
|
|
| 16. |
VOE955892
|
[0002] |
Plain washer
|
|
| 17. |
VOE946035
|
[0002] |
Lock nut
|
|
| 18. |
VOE13948414
|
[0002] |
Nipple
|
|
| 19. |
VOE941521
|
[0002] |
Fitting nut
|
|
| 2. |
VOE1587250
|
[0001] |
Gasket
|
|
| 20. |
VOE944965
|
[0002] |
Ferrule
|
|
| 21. |
VOE6225917
|
[REQ] |
Plastic pipe
|
L=1500
|
| 22. |
VOE964034
|
[0001] |
T-nipple
|
|
| 23. |
VOE944965
|
[0003] |
Ferrule
|
|
| 24. |
VOE941521
|
[0003] |
Fitting nut
|
|
| 25. |
VOE4850338
|
[0001] |
Retainer
|
|
| 26. |
VOE4787446
|
[0001] |
Switch
|
|
| 27. |
VOE11987540
|
[0001] |
Bellows
|
|
| |
VOE4881440
|
[0004] |
Cable tie
|
|
| 3. |
VOE956094
|
[0002] |
Cross recessed screw
|
|
| 4. |
VOE955892
|
[0002] |
Plain washer
|
|
![]()
