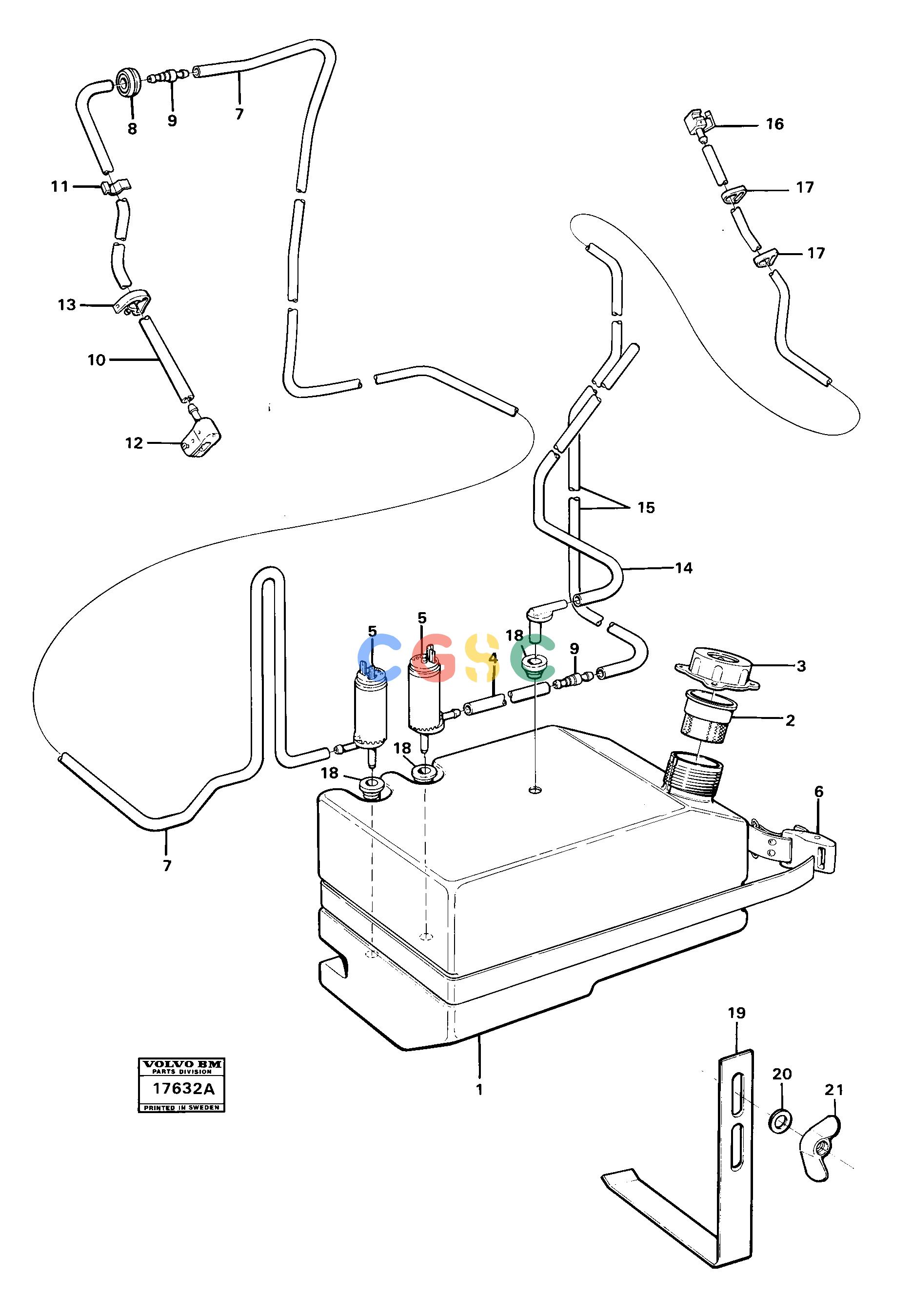

沃尔沃零件查询4400 Windscreen washer 901064400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4803571
|
[0002] |
Washer pump
|
|
| 6. |
VOE11104606
|
[0001] |
Retaining strap
|
|
| 7. |
VOE1304841
|
[REQ] |
Hose
|
|
| 8. |
VOE941262
|
[0001] |
Grommet
|
|
| 9. |
VOE667352
|
[0002] |
Non-return valve
|
|
| 1. |
VOE4951255
|
[0001] |
Reservoir
|
|
| 10. |
VOE943727
|
[REQ] |
Hose
|
L=650
|
| 11. |
VOE4803208
|
[0001] |
Clamp
|
|
| 12. |
VOE4803206
|
[0001] |
Nozzle
|
|
| 13. |
VOE192248
|
[0001] |
Retainer
|
|
| 14. |
VOE949799
|
[REQ] |
Hose
|
L=100
|
| 15. |
VOE943727
|
[REQ] |
Hose
|
L=2200
|
| 16. |
VOE1580247
|
[0001] |
Washer nozzle
|
|
| 17. |
VOE1580822
|
[0002] |
Clamp
|
|
| 18. |
VOE1258140
|
[0003] |
Sealing sleeve
|
|
| 19. |
|
[0001] |
Support
|
|
| 2. |
VOE1577712
|
[0001] |
Strainer
|
|
| 20. |
VOE955892
|
[0002] |
Plain washer
|
|
| 21. |
VOE191491
|
[0002] |
Wing nut
|
|
| 3. |
VOE4965040
|
[0001] |
Cover
|
|
| 4. |
VOE1304841
|
[0001] |
Hose
|
|
![]()
