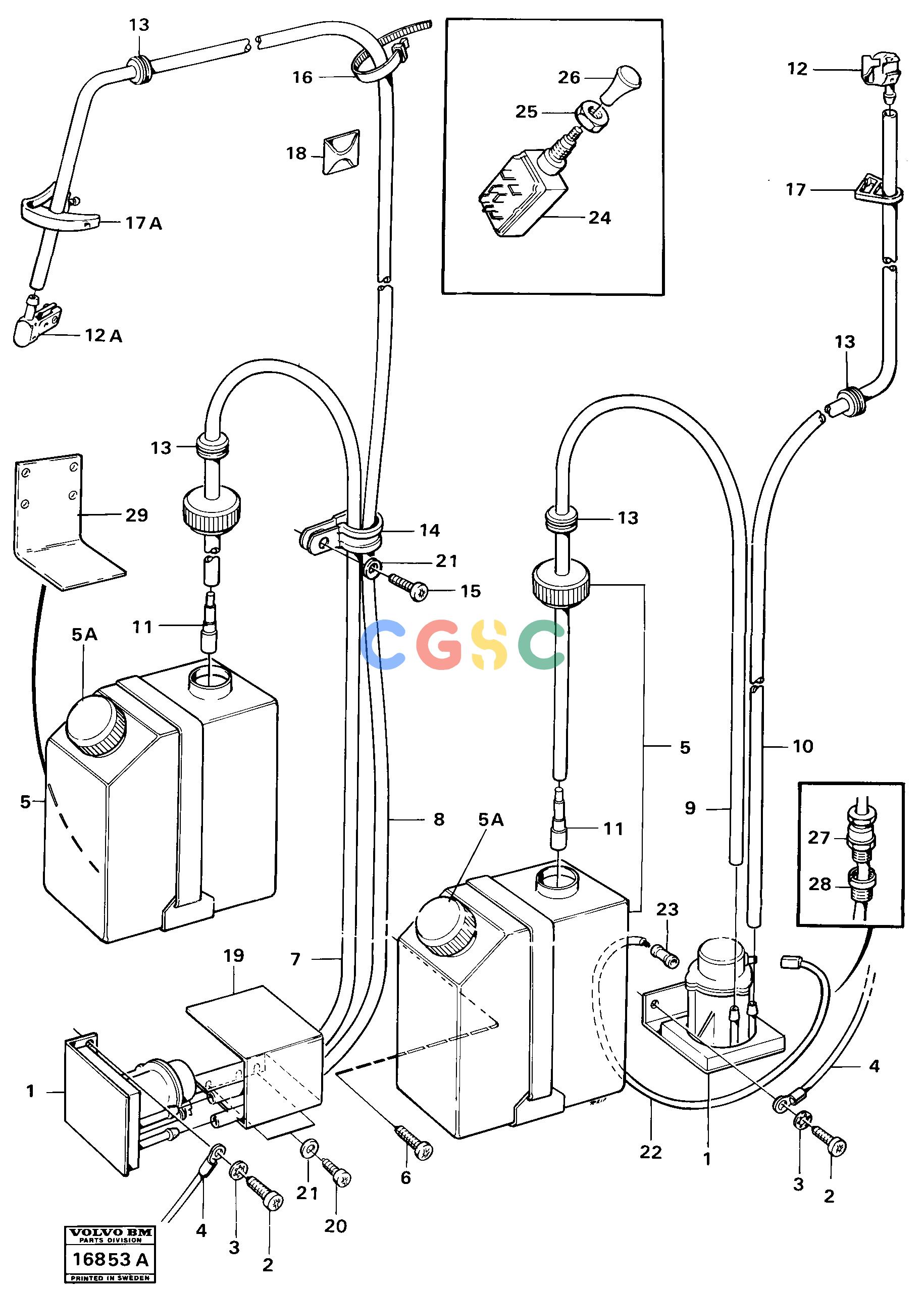

沃尔沃零件查询4400 Windscreen washer 98632, 98633, 997154400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4780244
|
[0002] |
Tank
|
|
| 5A. |
VOE649906
|
[0002] |
Cap
|
|
| 6. |
VOE955126
|
[0008] |
Cross recessed screw
|
|
| 7. |
VOE943727
|
[REQ] |
Hose
|
L=700
|
| 8. |
VOE943727
|
[REQ] |
Hose
|
L=2400
|
| 9. |
VOE943727
|
[REQ] |
Hose
|
L=500
|
| 1. |
VOE1507689
|
[0002] |
Washer motor
|
|
| 10. |
VOE943727
|
[REQ] |
Hose
|
L=1600
|
| 11. |
VOE11704737
|
[0002] |
Non-return valve
|
|
| 12. |
VOE1580247
|
[0001] |
Washer nozzle
|
|
| 12A. |
VOE4803206
|
[0001] |
Nozzle
|
|
| 13. |
VOE941262
|
[0004] |
Grommet
|
|
| 14. |
VOE952628
|
[0001] |
Clamp
|
|
| 15. |
VOE955126
|
[0001] |
Cross recessed screw
|
|
| 16. |
VOE4881440
|
[0006] |
Cable tie
|
|
| 17. |
VOE1580822
|
[0002] |
Clamp
|
|
| 17A. |
VOE4803208
|
[0002] |
Clamp
|
|
| 2. |
VOE955126
|
[0004] |
Cross recessed screw
|
|
| 18. |
VOE6641090
|
[0005] |
Plate
|
|
| 19. |
|
[0001] |
Protection
|
|
| 20. |
VOE955126
|
[0002] |
Cross recessed screw
|
|
| 21. |
VOE13940090
|
[0003] |
Washer
|
|
| 22. |
VOE4929378
|
[0001] |
Cable
|
|
| 23. |
VOE956958
|
[0001] |
Splice
|
|
| 24. |
VOE1573970
|
[0001] |
Switch
|
|
| 25. |
VOE673225
|
[0001] |
Nut washer
|
|
| 26. |
VOE688626
|
[0001] |
Knob
|
|
| 27. |
|
[0001] |
Sealing sleeve
|
|
| 3. |
VOE13941904
|
[0002] |
Washer
|
|
| 28. |
|
[0001] |
Union
|
|
| 4. |
|
[0002] |
Ground cable
|
|
| 29. |
VOE4932336
|
[0001] |
Bracket
|
|
![]()
