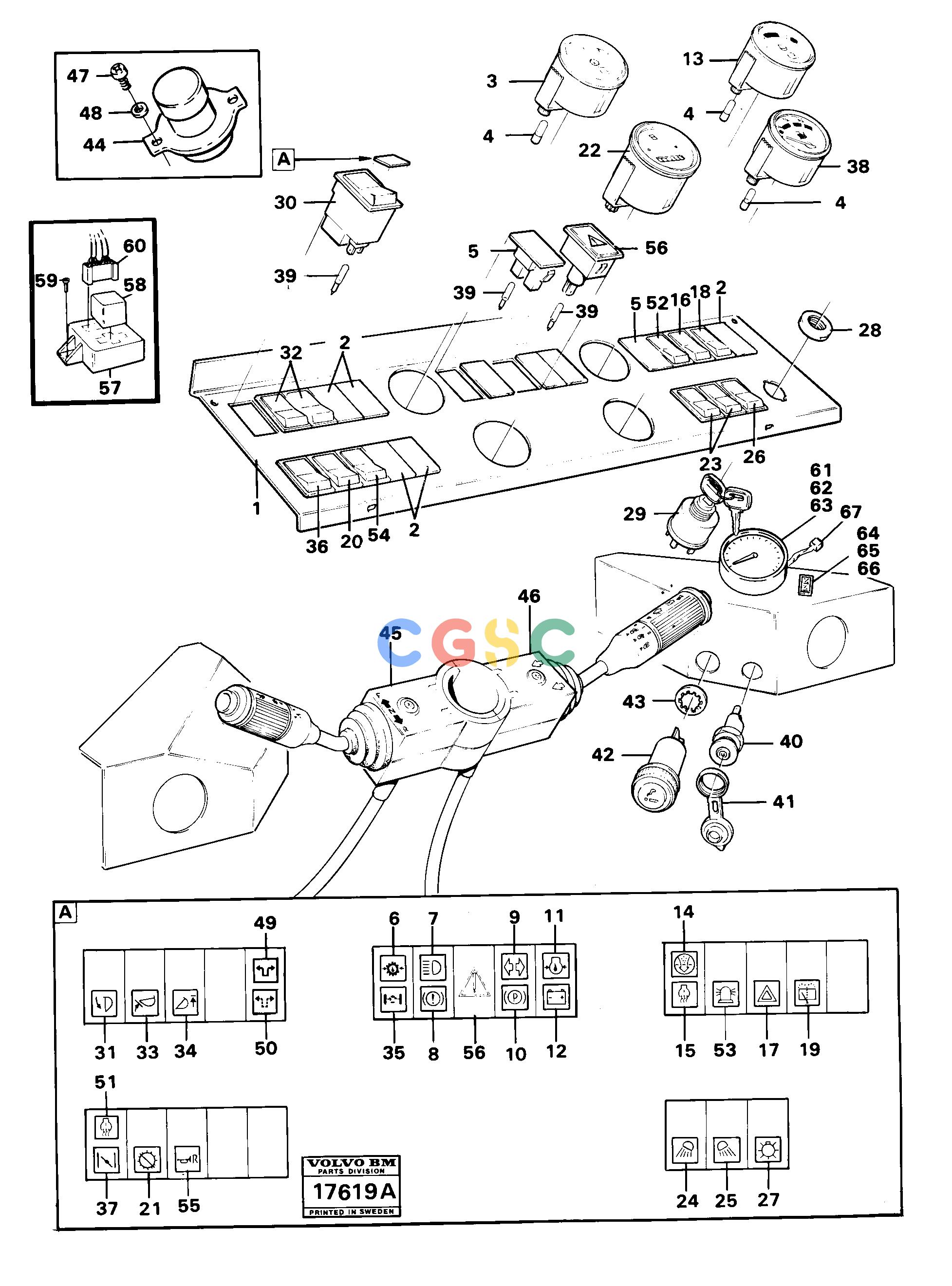

沃尔沃零件查询4400 Instrument panel and instruments Prod Nr 33205,332104400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[0001] |
Instr Panel
|
|
| 2. |
VOE4803467
|
[0008] |
Protecting cover
|
|
| 3. |
VOE11708798
|
[0001] |
Temperature gauge
|
|
| |
|
|
None
|
TRANSMISSION/TRANSM.
|
| 4. |
VOE182034
|
[0003] |
Bulb
|
|
| 5. |
VOE4803465
|
[0006] |
Control lamp
|
|
| 6. |
VOE4803514
|
[0001] |
Lens
|
|
| 7. |
VOE4803526
|
[0001] |
Lens
|
|
| 8. |
VOE4803542
|
[0001] |
Lens
|
|
| 9. |
VOE4803510
|
[0001] |
Lens
|
|
| 10. |
VOE11039564
|
[0001] |
Lens
|
|
| 11. |
VOE4803511
|
[0001] |
Lens
|
|
| 12. |
VOE4803539
|
[0001] |
Lens
|
|
| 13. |
VOE4803760
|
[0001] |
Temperature gauge
|
MOTOR/ENGINE
|
| 14. |
VOE4803701
|
[0001] |
Lens
|
|
| 15. |
VOE4803548
|
[0001] |
Lens
|
|
| |
VOE11039450
|
[0001] |
Lens
|
|
| 16. |
VOE4803464
|
[0001] |
Switch
|
|
| 17. |
VOE11039565
|
[0001] |
Lens
|
|
| 18. |
VOE4803463
|
[0001] |
Switch
|
|
| 19. |
VOE4803522
|
[0001] |
Lens
|
|
| 20. |
VOE4803509
|
[0001] |
Switch
|
|
| 21. |
VOE4803700
|
[0001] |
Lens
|
|
| 22. |
VOE4803561
|
[0001] |
Hour counter
|
|
| 23. |
VOE4803521
|
[0002] |
Switch
|
|
| 24. |
VOE4803694
|
[0001] |
Lens
|
|
| 25. |
VOE4803693
|
[0001] |
Lens
|
|
| 26. |
VOE4803461
|
[0001] |
Switch
|
|
| 27. |
VOE4803472
|
[0001] |
Lens
|
|
| 28. |
VOE1581184
|
[0001] |
Nut
|
|
| 29. |
VOE1590738
|
[0001] |
Starter switch
|
|
| |
VOE1578121
|
[0001] |
Starter switch
|
|
| |
VOE1581255
|
[0002] |
Key
|
|
| 30. |
VOE4803455
|
[0001] |
Switch
|
|
| 31. |
VOE4803520
|
[0001] |
Lens
|
|
| 32. |
VOE4803509
|
[0002] |
Switch
|
|
| 33. |
VOE4803541
|
[0001] |
Lens
|
|
| 34. |
VOE4803540
|
[0001] |
Lens
|
|
| 35. |
VOE11039455
|
[0001] |
Lens
|
|
| 36. |
VOE4803456
|
[0001] |
Switch
|
|
| 37. |
VOE4803704
|
[0001] |
Lens
|
|
| 38. |
VOE4787364
|
[0001] |
Fuel gauge
|
|
| 39. |
VOE11997242
|
[REQ] |
Bulb
|
|
| 40. |
VOE4787694
|
[0001] |
Box
|
|
| 41. |
|
[0001] |
Cover
|
|
| 42. |
VOE1586917
|
[0001] |
Cigarette lighter
|
|
| 43. |
VOE13946222
|
[0001] |
Retainer
|
|
| 44. |
VOE329014
|
[0001] |
Switch
|
|
| 45. |
VOE11990164
|
[0001] |
Switch
|
|
| |
VOE11002418
|
[1] |
Cable harness
|
|
| |
VOE11039407
|
[1] |
Switch
|
|
| |
VOE11041656
|
[1] |
Cable
|
|
| 46. |
VOE11039018
|
[0001] |
Switch
|
|
| 47. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 48. |
VOE13941906
|
[0002] |
Washer
|
|
| 49. |
|
[0001] |
Glass
|
|
| 50. |
|
[0001] |
Decal
|
|
| 52. |
VOE4803455
|
[0001] |
Switch
|
|
| 53. |
VOE11039140
|
[0001] |
Lens
|
|
| 54. |
VOE4803509
|
[0001] |
Switch
|
|
| 55. |
VOE4803703
|
[0001] |
Lens
|
|
| 56. |
VOE4803528
|
[0001] |
Control lamp
|
|
| 57. |
VOE1593940
|
[0001] |
Sensor
|
|
| 58. |
VOE4786690
|
[0001] |
Relay
|
|
| 59. |
VOE955119
|
[0002] |
Cross recessed screw
|
|
| 60. |
VOE4954039
|
[0001] |
Cable harness
|
|
| 61. |
VOE4803583
|
[1] |
Tachometer
|
|
| 62. |
|
[1] |
Retainer
|
|
| 63. |
VOE182059
|
[1] |
Bulb
|
|
| 64. |
VOE4803457
|
[1] |
Switch
|
|
| 65. |
VOE11039532
|
[1] |
Lens
|
|
| 66. |
VOE4803574
|
[1] |
Decal
|
|
| 67. |
VOE4803572
|
[1] |
Cable harness
|
|
![]()
