沃尔沃零件查询4400 Lighting4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次

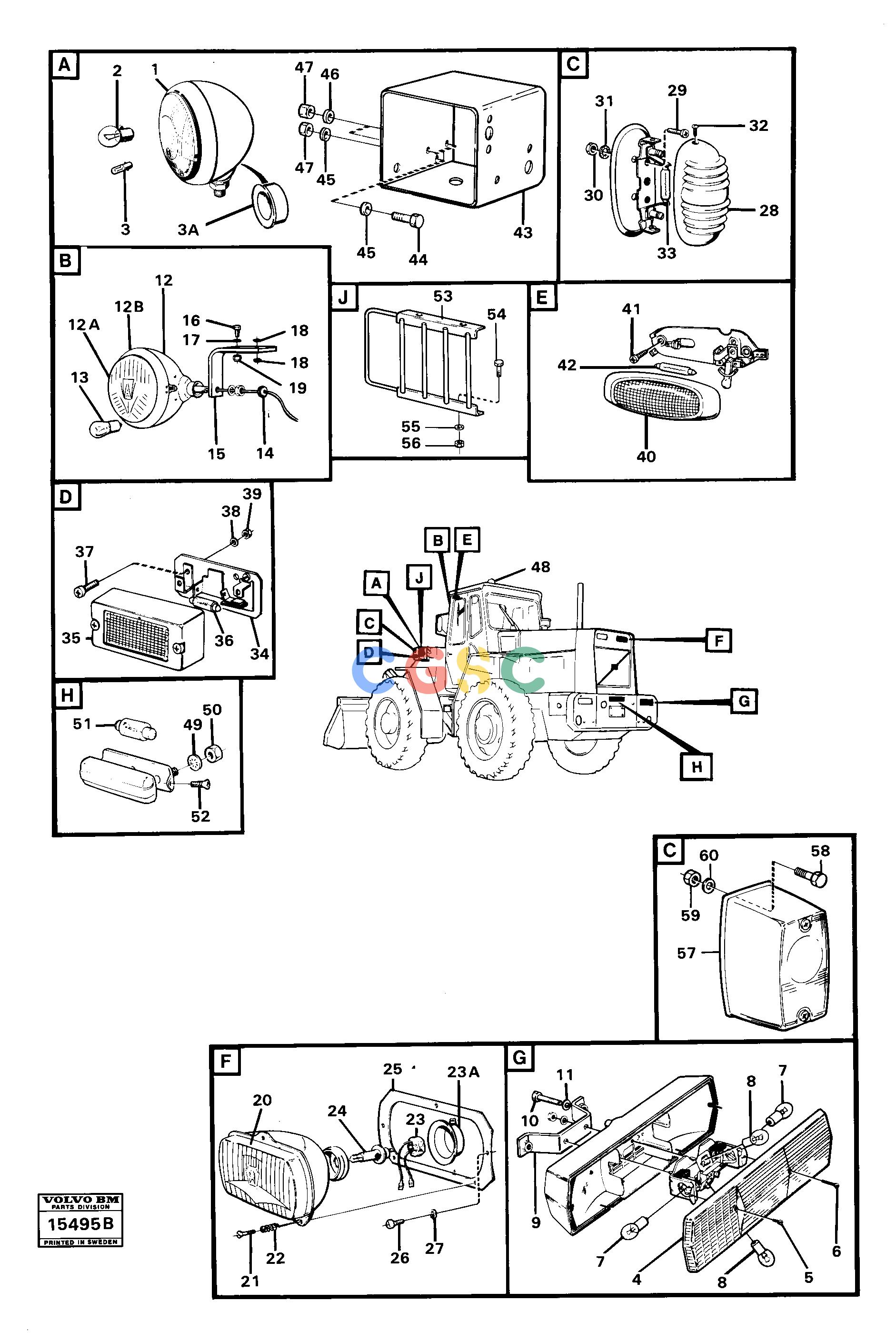

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
VOE942086
|
[0002] |
Bulb
|
SER NO -3635
|
| 36. |
VOE19926
|
[0002] |
Bulb
|
|
| 37. |
VOE13980220
|
[0004] |
Six point socket screw
|
|
| 38. |
VOE13941904
|
[0004] |
Washer
|
|
| |
VOE973892
|
[0002] |
Bulb
|
|
| |
|
|
None
|
H4, SER NO 3636-
|
| 39. |
VOE955779
|
[0004] |
Hexagon nut
|
|
| 40. |
VOE662109
|
[0001] |
Courtesy lamp
|
|
| 41. |
VOE955161
|
[0002] |
Cross recessed sunk screw
|
|
| 42. |
VOE182040
|
[0001] |
Bulb
|
|
| 43. |
VOE4850321
|
[0001] |
Cover Plate
|
V. 17)
|
| |
VOE4850320
|
[0001] |
Cover Plate
|
H
|
| 3. |
VOE967711
|
[0002] |
Bulb
|
|
| 44. |
VOE13970947
|
[0006] |
Hexagon screw
|
|
| 45. |
VOE13940109
|
[0004] |
Lock washer
|
|
| 46. |
VOE941908
|
[0004] |
Spring washer
|
|
| 47. |
VOE971071
|
[0006] |
Hexagon nut
|
|
| 48. |
|
[0001] |
Warning lamp
|
|
| |
|
|
None
|
|
| 3A. |
VOE4780625
|
[0002] |
Protecting casing
|
SER NO - 6356
|
| |
VOE6612583
|
[0001] |
Lamp
|
|
| 49. |
VOE955948
|
[0002] |
Toothed washer
|
|
| 50. |
VOE13955781
|
[0002] |
Nut
|
|
| 51. |
VOE19926
|
[0001] |
Bulb
|
|
| 52. |
VOE923417
|
[0001] |
None
|
|
| |
VOE1509317
|
[0001] |
Lamp
|
H
|
| 53. |
VOE4851080
|
[0002] |
Grating
|
|
| 54. |
VOE13955295
|
[0008] |
Screw
|
|
| 55. |
VOE13941907
|
[0008] |
Washer
|
|
| 56. |
VOE955782
|
[0008] |
Hexagon nut
|
|
| 57. |
VOE4803622
|
[0001] |
Dir Indicator
|
V. SER NO 6841 -
|
| |
VOE4803623
|
[0001] |
Dir Indicator
|
H. SER NO 6841 -
|
| 58. |
VOE956079
|
[0002] |
Cross recessed screw
|
|
| 59. |
VOE946577
|
[0004] |
Lock nut
|
|
| 60. |
VOE13940090
|
[0002] |
Washer
|
|
| |
VOE992521
|
[0002] |
Bulb
|
24 V/21W
|
| |
VOE1509318
|
[0001] |
Lamp
|
V
|
| 4. |
VOE1500754
|
[0002] |
Lens
|
|
| 1. |
VOE4880068
|
[0002] |
Head lamp
|
SER NO - 3635
|
| 5. |
VOE13980220
|
[0002] |
Six point socket screw
|
|
| |
|
|
None
|
|
| 6. |
VOE956065
|
[0002] |
Cross recessed screw
|
|
| 7. |
VOE992521
|
[0004] |
Bulb
|
|
| 8. |
VOE992519
|
[0004] |
Bulb
|
|
| 9. |
VOE4763207
|
[2] |
Anchorage
|
|
| 10. |
VOE940101
|
[4] |
Hexagon screw
|
SER NO -2079
|
| |
VOE955280
|
[4] |
Hexagon screw
|
SER NO 2080-
|
| 11. |
VOE13941906
|
[4] |
Washer
|
|
| |
VOE4803411
|
[0002] |
Headlamp
|
SER NO 3636-
|
| 12. |
VOE4928197
|
[2] |
Headlamp
|
|
| 12A. |
VOE6210462
|
[2] |
Insert
|
|
| |
|
|
None
|
|
| 12B. |
VOE6210463
|
[2] |
Rim
|
|
| |
VOE4803445
|
[0002] |
Headlamp
|
|
| 13. |
VOE992517
|
[2] |
Bulb
|
|
| 14. |
VOE941267
|
[2] |
Plug
|
|
| 15. |
VOE4850129
|
[2] |
Bracket
|
|
| |
|
|
None
|
|
| 16. |
VOE13970947
|
[4] |
Hexagon screw
|
|
| 17. |
VOE976945
|
[4] |
Washer
|
|
| 18. |
VOE13940109
|
[4] |
Lock washer
|
|
| 19. |
VOE13971089
|
[4] |
Lock nut
|
|
| 20. |
VOE4726171
|
[0002] |
Spotlight
|
|
| 21. |
VOE4780627
|
[0006] |
Screw
|
|
| 22. |
VOE4780626
|
[0006] |
Spring
|
|
| 23. |
VOE6642015
|
[0002] |
Coupling piece
|
|
| 23A. |
VOE4787863
|
[0002] |
Bellows
|
|
| 24. |
VOE992516
|
[0002] |
Bulb
|
|
| 25. |
VOE4761024
|
[0002] |
Lamp Retainer
|
|
| 26. |
VOE956094
|
[0006] |
Cross recessed screw
|
|
| 27. |
VOE13941906
|
[0006] |
Washer
|
|
| |
VOE784423
|
[0002] |
Dir Indicator
|
SER NO - 6840
|
| 28. |
|
[0002] |
Glass
|
|
| 29. |
VOE13980220
|
[0004] |
Six point socket screw
|
|
| 30. |
VOE955797
|
[0004] |
Hexagon nut
|
|
| 31. |
VOE13941904
|
[0004] |
Washer
|
|
| 32. |
|
[0004] |
Bolt
|
|
| 33. |
VOE182048
|
[0002] |
Bulb
|
SER NO - 6840
|
| |
VOE1576682
|
[0002] |
Side marking lamp
|
|
| 34. |
|
[0002] |
Socket
|
|
| 35. |
VOE1576684
|
[0002] |
Lens
|
|
