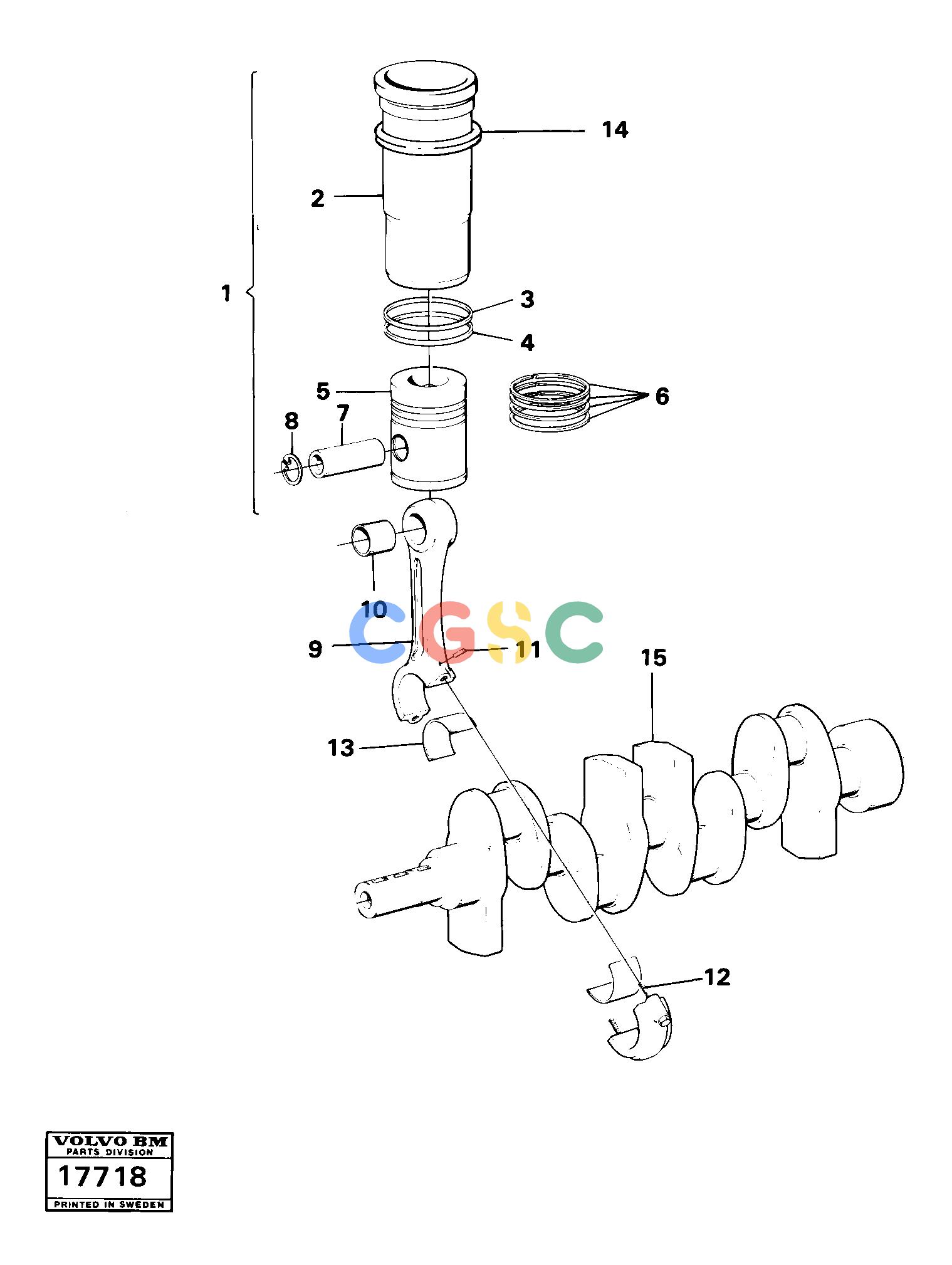

沃尔沃零件查询4300B Cylinder liner, piston and connecting rod4300B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0004] |
Piston
|
|
| 6. |
VOE6630616
|
[0004] |
Piston ring kit
|
|
| |
VOE787262
|
[0004] |
Oil scraper ring
|
|
| 7. |
|
[0004] |
Piston pin
|
|
| 8. |
VOE914524
|
[0008] |
Retaining ring
|
|
| 1. |
VOE6630596
|
[0004] |
Cylinder liner kit
|
ERS.AV 11990057
|
| 9. |
VOE4804450
|
[0004] |
Connecting rod
|
|
| |
|
[0004] |
Cap
|
|
| 10. |
VOE11030066
|
[0004] |
Bearing bushing
|
|
| 11. |
VOE7021660
|
[0008] |
Pin
|
|
| 12. |
VOE420126
|
[0008] |
Screw
|
|
| 13. |
VOE270093
|
[0004] |
Bearing
|
|
| |
VOE270094
|
[0004] |
Bearing
|
0,010" UD
|
| |
VOE270095
|
[0004] |
Bearing
|
0,020" UD
|
| |
VOE270096
|
[0004] |
Bearing
|
0,030" UD
|
| |
VOE270097
|
[0004] |
Bearing
|
0,040" UD
|
| 2. |
|
[0004] |
Cylinder liner
|
|
| |
VOE270098
|
[0004] |
Bearing
|
0,050" UD
|
| 14. |
VOE4804380
|
[REQ] |
Shim
|
THICK=0,12
|
| |
VOE4804381
|
[REQ] |
Shim
|
THICK=0,20
|
| |
VOE4804382
|
[REQ] |
Shim
|
THICK=0,30
|
| |
VOE4804383
|
[REQ] |
Shim
|
THICK=0,50
|
| 15. |
|
[0001] |
Crankshaft
|
|
| 3. |
VOE4804532
|
[0004] |
Sealing ring
|
ÖVRE / UPPER
|
| 4. |
VOE4804532
|
[0004] |
Sealing ring
|
NEDRE / LOWER
|
