沃尔沃零件查询4300 Hydraulic cylinder lifting43004782255-4782900NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

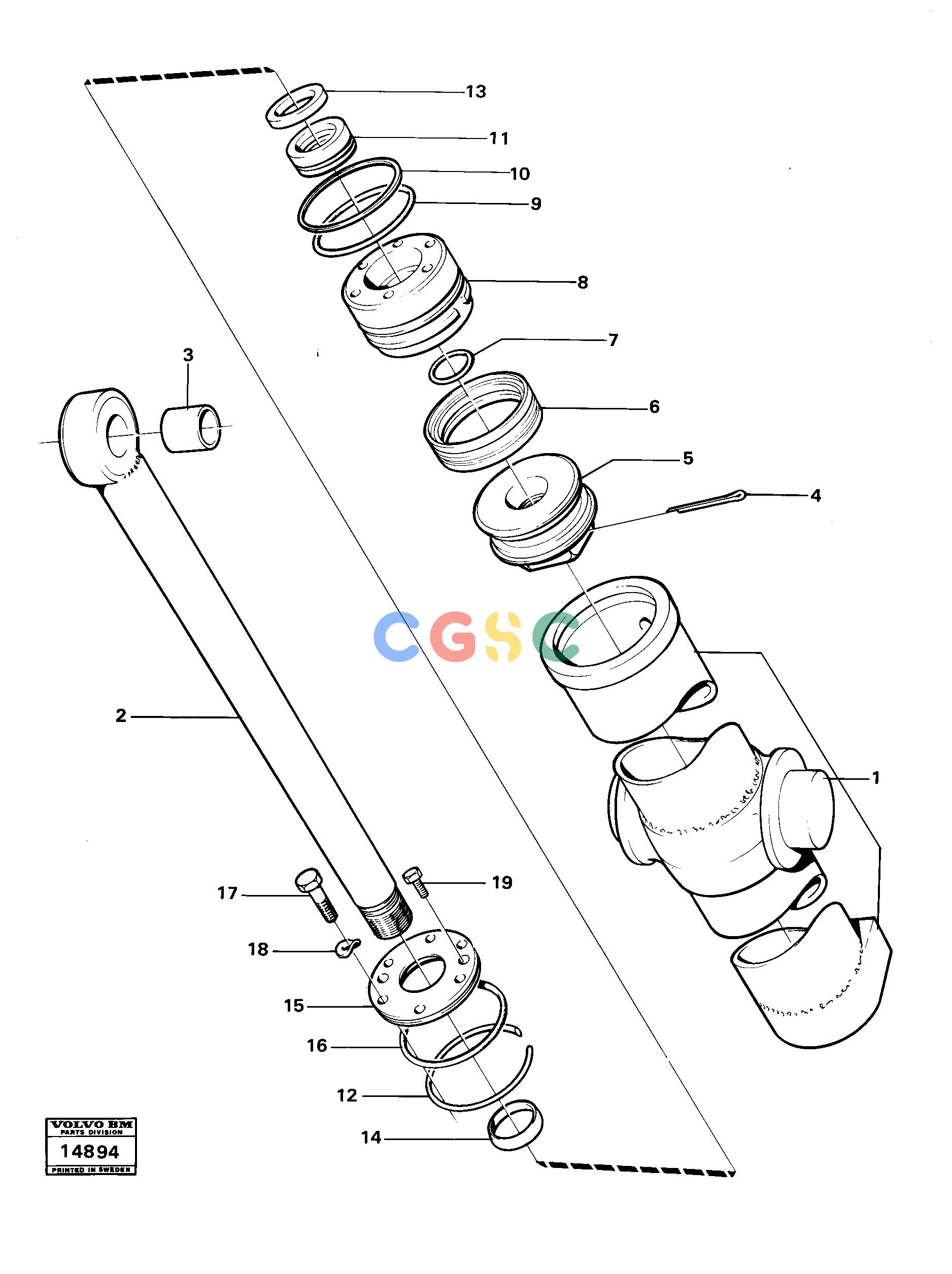

Pos. |
Part No |
Qty |
Parts name |
Comments |
2. |
VOE4784655
|
[0001] |
Piston rod
|
|
3. |
VOE4929199
|
[0001] |
Bushing
|
|
4. |
VOE4782719
|
[0001] |
Spring pin
|
|
5. |
VOE4833372
|
[0001] |
Piston
|
|
|
VOE4782255
|
[0001] |
Lifting cylinder
|
PROD NO 33100, 33105
|
6. |
VOE4833026
|
[0001] |
Seal
|
|
7. |
VOE13960179
|
[0001] |
O-ring
|
|
|
VOE13960178
|
|
O-ring
|
|
8. |
VOE4782474
|
[0001] |
Piston rod guide
|
|
|
VOE4784160
|
|
Piston rod guide
|
|
9. |
VOE960190
|
[0001] |
O-ring
|
|
|
VOE925081
|
|
O-ring
|
|
10. |
VOE4786742
|
[0001] |
Back-up ring
|
|
11. |
VOE4784062
|
[0001] |
Piston rod seal
|
|
|
VOE4784047
|
|
Piston rod seal
|
|
|
VOE4782900
|
|
Hydraulic cylinder
|
PROD NO 33106, 33107
|
12. |
VOE4782475
|
[0001] |
Locking wire
|
|
13. |
VOE4782476
|
[0001] |
Spacer ring
|
|
|
VOE4784033
|
[0001] |
Spacer ring
|
|
14. |
VOE17457873
|
[0001] |
Scraper ring
|
|
15. |
VOE4782473
|
[0001] |
Lock washer
|
|
16. |
VOE13960237
|
[0001] |
O-ring
|
|
17. |
VOE927458
|
[0006] |
Screw
|
|
|
VOE4782857
|
|
Screw
|
|
18. |
VOE13941907
|
[0006] |
Washer
|
|
|
VOE941908
|
|
Spring washer
|
|
1. |
VOE4782276
|
[0001] |
Cylinder tube
|
|
|
VOE6630568
|
[1] |
Gasket kit
|
|
|
VOE6630637
|
|
Sealing kit
|
|
|
VOE4782902
|
|
Cylinder tube
|
|
