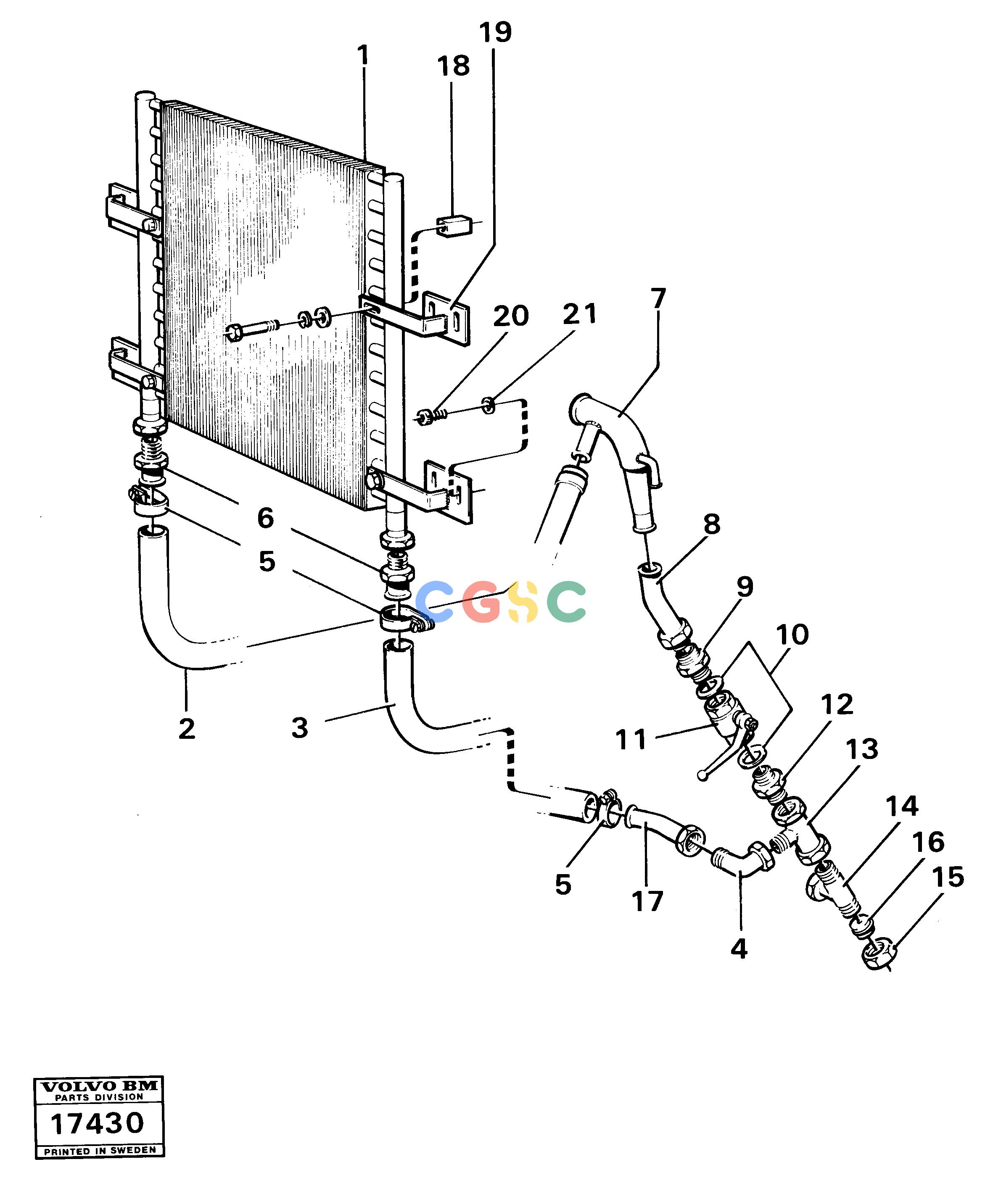

沃尔沃零件查询4300 Hydraulic oil cooler 996564300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
5. |
VOE927466
|
[0004] |
Hose clamp
|
|
6. |
VOE4939376
|
[0002] |
Nipple
|
|
7. |
|
[0001] |
Return pipe
|
|
8. |
VOE4939479
|
[0001] |
Tube Assembly
|
SER NO - 4723
|
|
VOE4947570
|
[0001] |
Tube Assembly
|
SER NO 4724 -
|
9. |
VOE944204
|
[0001] |
Nipple
|
|
1. |
VOE4881049
|
[0001] |
Oil cooler
|
|
10. |
VOE14013072
|
[0002] |
Sealing washer
|
SER NO - 4723
|
|
VOE956988
|
[0001] |
Fitting nut
|
SER NO 4724 -
|
11. |
VOE4881050
|
[0001] |
Ball Valve
|
|
12. |
VOE13963829
|
[0001] |
Nipple
|
|
13. |
VOE13964061
|
[0001] |
Fitting
|
|
14. |
VOE13964045
|
[0001] |
Fitting
|
|
15. |
VOE956992
|
[0001] |
Fitting nut
|
|
16. |
VOE13964094
|
[0001] |
Closure
|
|
17. |
VOE4939479
|
[0001] |
Tube Assembly
|
|
18. |
VOE4881001
|
[0004] |
Expander
|
|
19. |
|
[0004] |
Bracket
|
|
2. |
VOE927139
|
[REQ] |
Hydraulic hose
|
L=2765
|
20. |
VOE955297
|
[0008] |
Hexagon screw
|
|
21. |
VOE13960141
|
[0008] |
Washer
|
|
3. |
VOE927139
|
[REQ] |
Hydraulic hose
|
L=2250
|
4. |
VOE784613
|
[0001] |
Elbow
|
|
