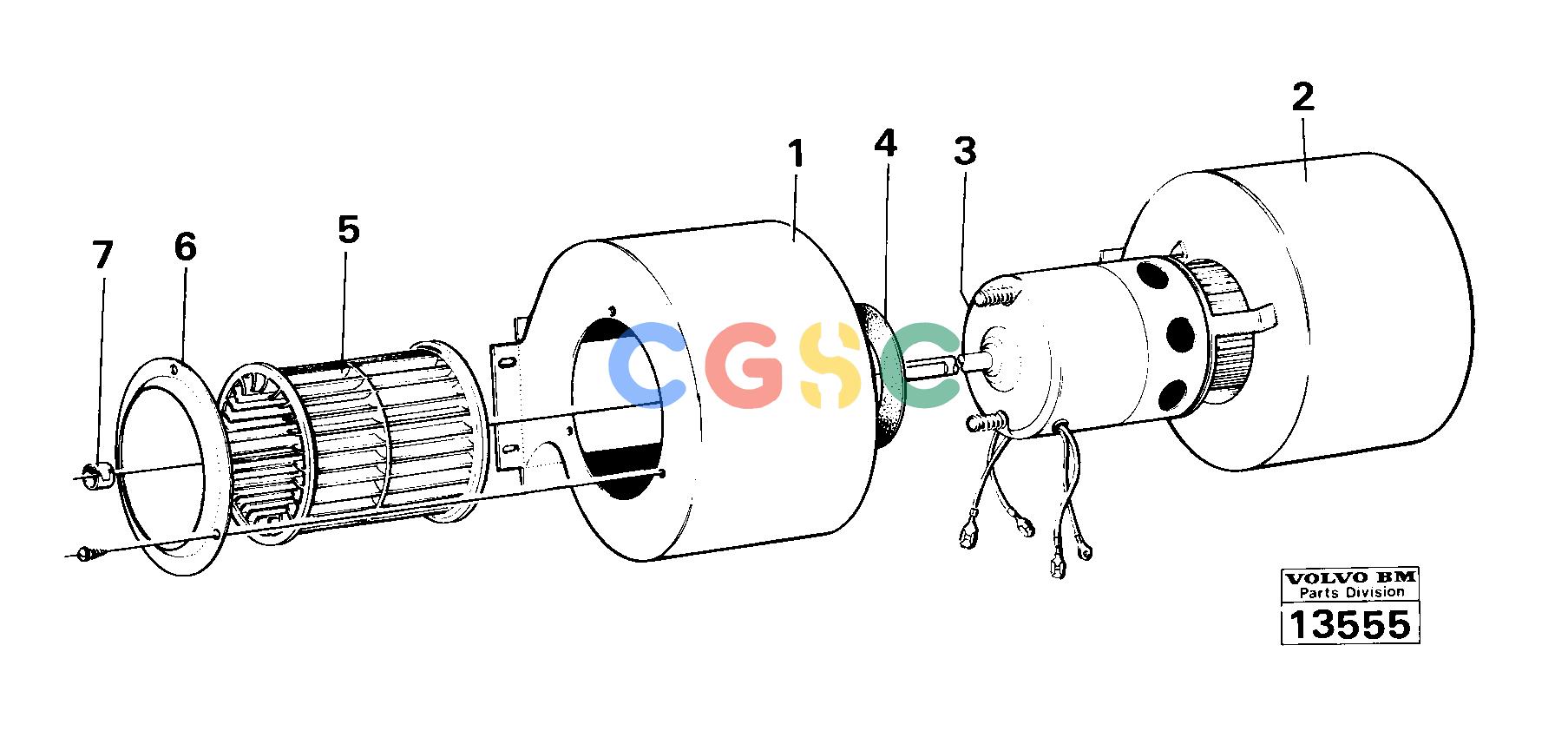

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
VOE6212940 | Housing | |||
2. | VOE6211131 | [1] | Housing | |
VOE6212941 | Housing | |||
3. | VOE6211132 | [1] | Engine | |
VOE11991536 | Electric motor | |||
VOE4786915 | [1] | Fan | ||
4. | VOE6644176 | [2] | Gasket | |
VOE6212943 | Gasket | |||
5. | VOE6644177 | [2] | Fan wheel | |
6. | VOE6644179 | [2] | Ring | |
7. | VOE6644178 | [REQ] | Clamp | |
VOE11992775 | Resistor | |||
VOE4803185 | Fan | ERS AV 4881219 | ||
VOE4881219 | Fan | |||
1. | VOE6211130 | [1] | Housing |
