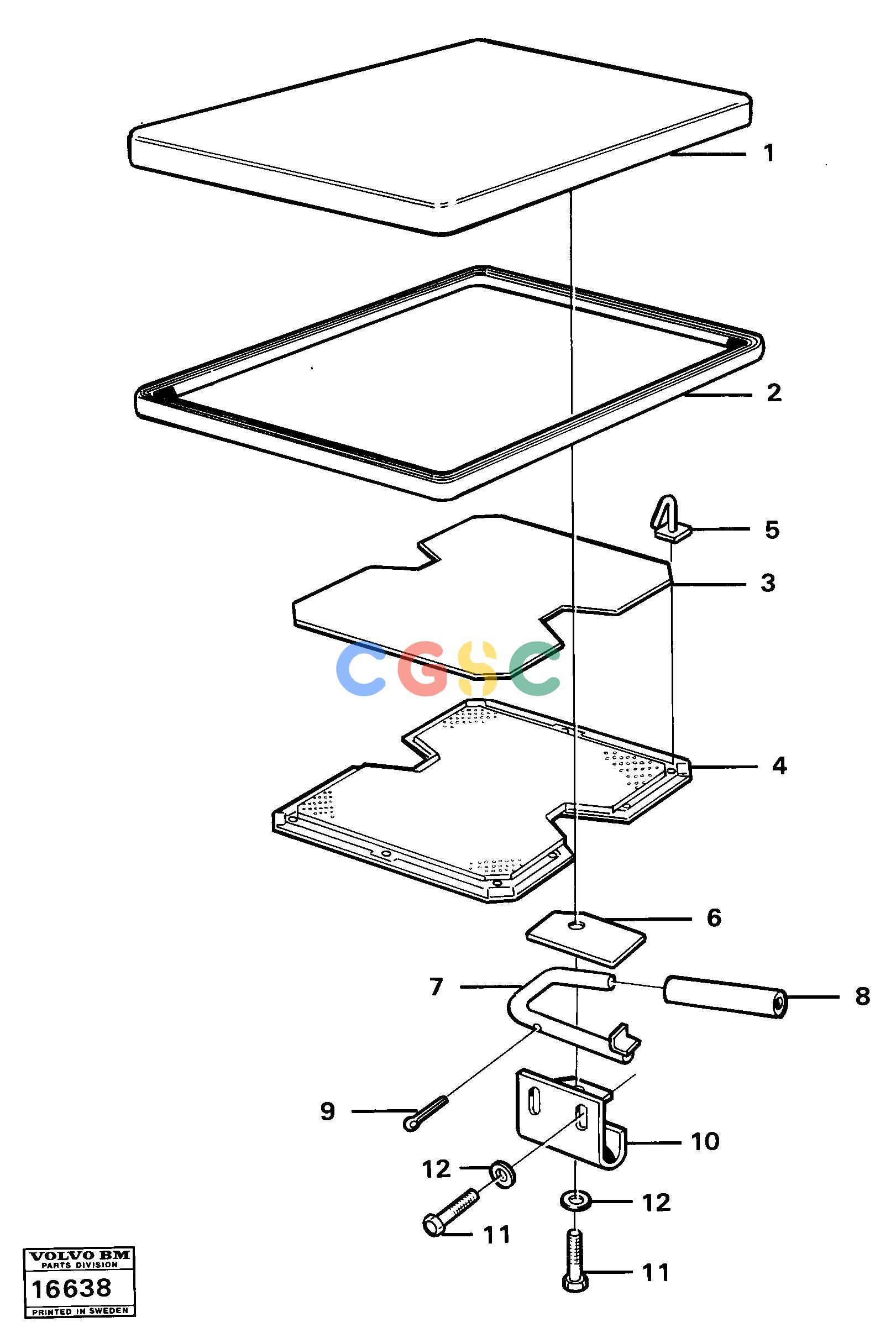

沃尔沃零件查询4300 Safety roof hatch 991204300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4880927
|
[0010] |
Latch
|
|
| 6. |
VOE4929809
|
[0006] |
Spacer
|
|
| 7. |
VOE4929815
|
[0002] |
Latch
|
|
| 8. |
VOE4932001
|
[0002] |
Ferrule
|
|
| 9. |
VOE907847
|
[0002] |
Split pin
|
|
| 1. |
VOE4929810
|
[0001] |
Roof hatch
|
|
| 10. |
VOE4932583
|
[0002] |
Anchorage
|
|
| 11. |
VOE13955271
|
[0006] |
Screw
|
|
| 12. |
VOE955892
|
[0006] |
Plain washer
|
|
| 2. |
VOE4786044
|
[REQ] |
Sealing strip
|
L=3210
|
| 3. |
VOE4763843
|
[0001] |
Insulation
|
|
| 4. |
VOE4763841
|
[0001] |
Retaining plate
|
|
